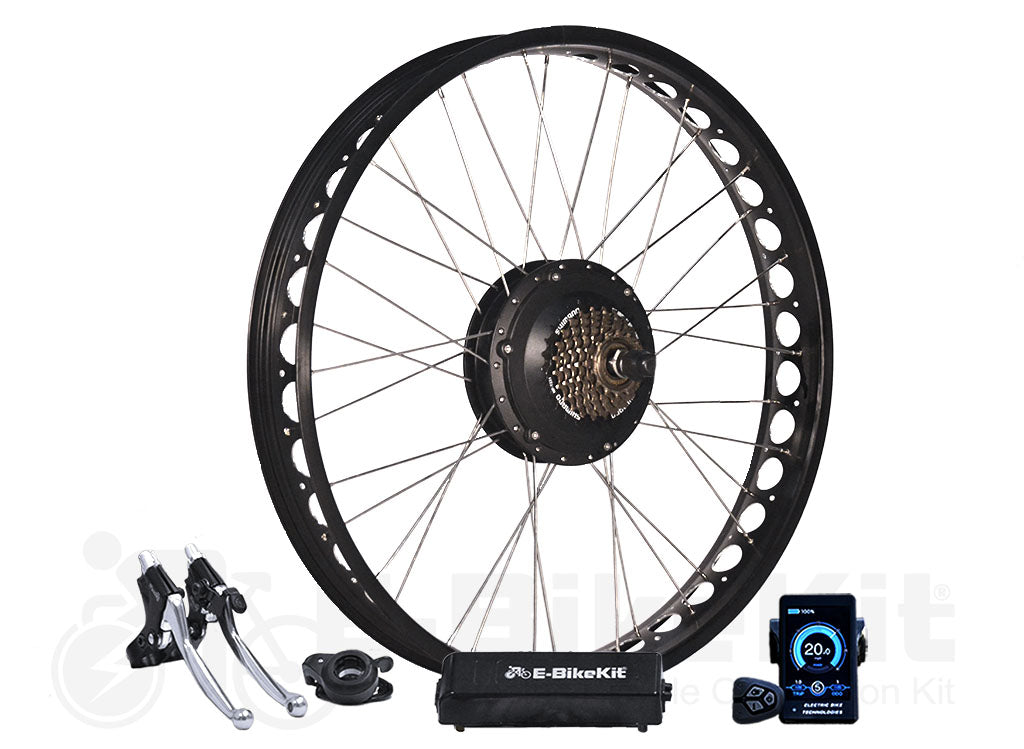

Electric Bike Conversion Kit – 750W Rear Wheel Fatbike (No Battery)

$956.00

Sale Sold out

Processing & Shipping:
Small parts typically ship the same business day when ordered before noon ET. Larger kits, wheels, and battery shipments usually ship within 1–2 business days unless otherwise noted.

Wheel Size 20" Fat 26" Fat

Freewheel 7-Speed 8-Speed 9-Speed 1-Speed (w/Speed) 6-Speed

Need a complete system?

View this kit with a battery included →

Overview

Purpose-built rear-wheel electric conversion kit for fatbikes
750W nominal system with strong torque and peak power at 48V
Pedal-assist (PAS) and throttle control
Battery not included — compatible with standard 48V lithium batteries
Designed for 170–190mm rear dropout spacing

A high-performance electric bike conversion system engineered specifically for fatbikes, intended for riders who already own a compatible battery and want a powerful, torque-rich setup for mixed terrain.

Description

Rear Fatbike Electric Bike Conversion System (No Battery)

The E-BikeKit™ Rear Fatbike Conversion System (No Battery) is designed for riders who already own a compatible 48V lithium battery or are replacing an existing electric fatbike system.

This kit is built around a 750W nominal electric drive system operating at 48 volts with a high-output controller, delivering strong low-speed torque and responsive power when paired with an appropriate battery.

Compared to direct-drive motors, this fatbike-specific geared system is lighter, more responsive, and better suited to varied terrain, making it ideal for snow, sand, gravel, and off-road riding.

Who is this kit for? Riders who already have a compatible battery and want a powerful electric fatbike setup without purchasing a new battery. Recommended for total system loads up to 300 lbs.

Fitment & Compatibility

Rear dropout spacing: 170mm standard (disc brake)
Optional spacing: 190mm for non-disc setups
Disc offset: 15mm at 170mm spacing
190mm disc setups: require a 10mm rotor spacer and longer rotor bolts (not included)
Chainline: 64mm standard

Rear wheels are built and spaced based on your selected configuration. Because fatbike frames vary, minor fitment adjustments may be required.

Performance & Specifications

System type: Rear-wheel electric bike conversion kit for fatbikes
Nominal power: 750W
System voltage: 48V
Peak power capability: Higher short-duration output for acceleration and hills
Estimated range: Varies by battery capacity, terrain, and riding conditions
Maximum torque: 84 Nm @ 48V
Motor weight: ~17 lbs (7.7 kg)
Total load limit: 300 lbs

Battery Compatibility & Mounting

No battery is included with this kit. It is designed to be used with a compatible 48V lithium battery supplied by the rider.

Battery compatibility depends on connector type, discharge capability, and mounting method. Common mounting locations include downtube mounts, custom plates, or battery bags mounted to a rear rack.

If you are unsure whether your existing battery is compatible with this system, we strongly recommend contacting us before ordering.

What’s Included

USA hand-built rear fatbike motor wheel (configured to your spacing)
48V-compatible 22A / 12-FET controller
Programmable LCD dashboard
PAS split disc and left-side PAS sensor
Thumb or split-twist throttle
Left & right e-brake levers
Main motor cable
3-to-1 accessory cable
Battery wire harness / pigtail (bare red/black leads for adding a compatible battery connector)
Zip ties, C-washers, and torque arms
