E-BikeKit™ Fatbike Lithium - Rear Wheel

• Purpose-built rear hub system for fatbikes
• Up to 26 mph top speed with a typical 10–25 mile range
• 750W internally geared fatbike hub motor with high peak output
• 48V 15Ah lithium-ion battery included
• Designed for 170–190mm rear dropout spacing

A high-performance electric conversion system engineered specifically for fatbikes, delivering strong torque, efficient power delivery, and reliable performance on snow, sand, gravel, and mixed terrain.

Rear Fatbike E-BikeKit Conversion System

The E-BikeKit™ Rear Geared Hub Motor Conversion Kit for Fatbikes is designed for riders who want maximum performance from a fatbike platform without the weight and drag of a direct-drive motor.

This system uses a 750W internally geared fatbike hub motor with a 5:1 planetary reduction and internal clutch. The clutch provides zero drag when pedaling without power, while the geared design delivers excellent low-speed torque, strong hill-climbing ability, and high overall efficiency.

Compared to direct-drive motors, this fatbike-specific geared motor is lighter, more responsive, and better suited to varied terrain, making it ideal for riders who want performance without sacrificing handling.

Who is this kit for? Riders who want a powerful, torque-rich electric fatbike for mixed terrain use. Recommended for total system loads up to 300 lbs. Heavier applications should consider a heavy-duty direct-drive system.

• Rear dropout spacing: 170mm standard (disc brake)
• Optional spacing: 190mm for non-disc setups
• Disc offset: 15mm at 170mm spacing
• 190mm disc setups: require a 10mm rotor spacer and longer rotor bolts (not included)
• Chainline: 64mm standard

Rear wheels are built and spaced based on your selected configuration. Because fatbike frames vary, minor fitment adjustments may be required.

• Motor type: Internally geared rear fatbike hub motor (with clutch)
• Nominal / peak power: 750W / 1000W @ 48V
• Top speed: Up to 26 mph
• Estimated range: 10–25 miles (terrain, rider input, and conditions dependent)
• System voltage: 48V
• Maximum torque: 84 Nm @ 48V
• Motor weight: ~17 lbs (7.7 kg)
• Total load limit: 300 lbs

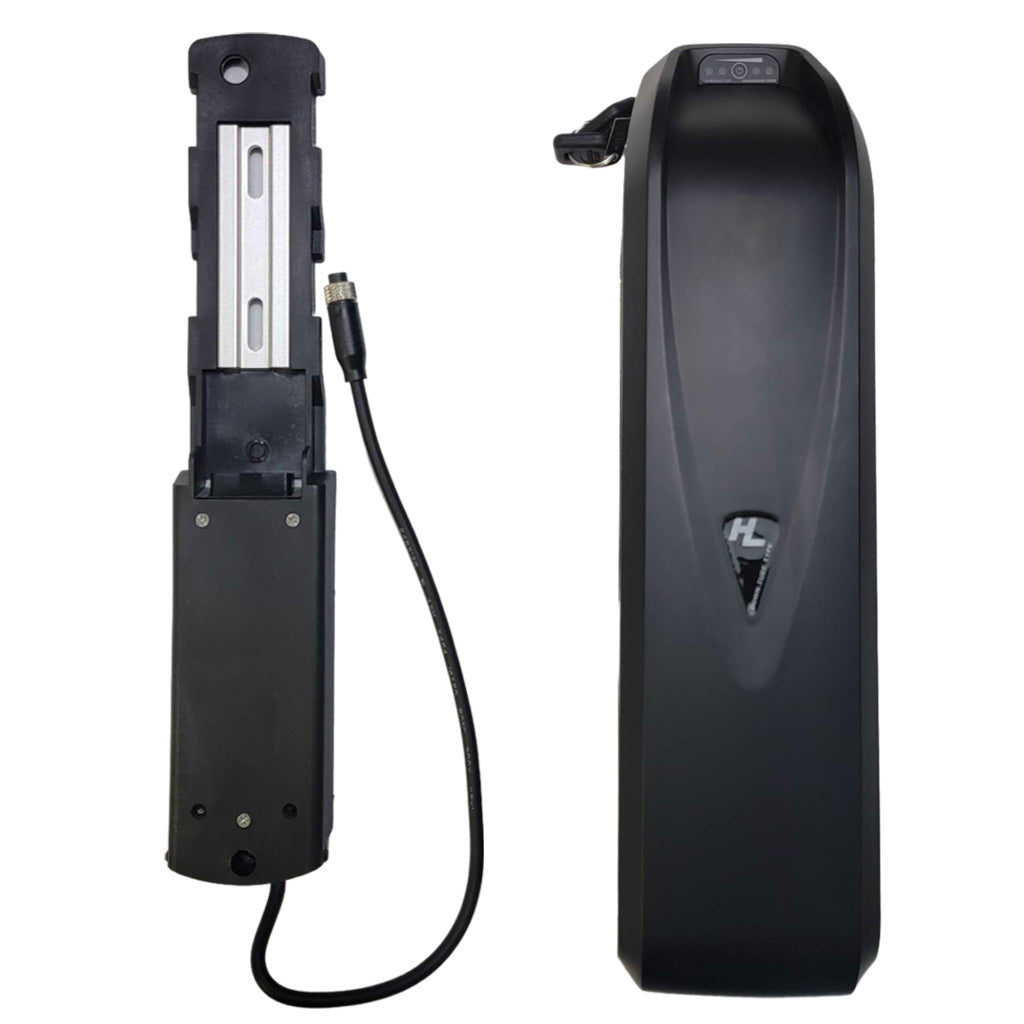

This system includes a 48V 15Ah downtube-style lithium-ion battery and charger.

The battery includes its own mounting rail designed to attach using two standard water-bottle bosses. No additional battery mounting hardware is included or assumed.

The battery may be mounted anywhere a secure two-bolt pattern can be installed, including the downtube, a custom mounting plate, or inside a battery bag mounted to a rear rack.

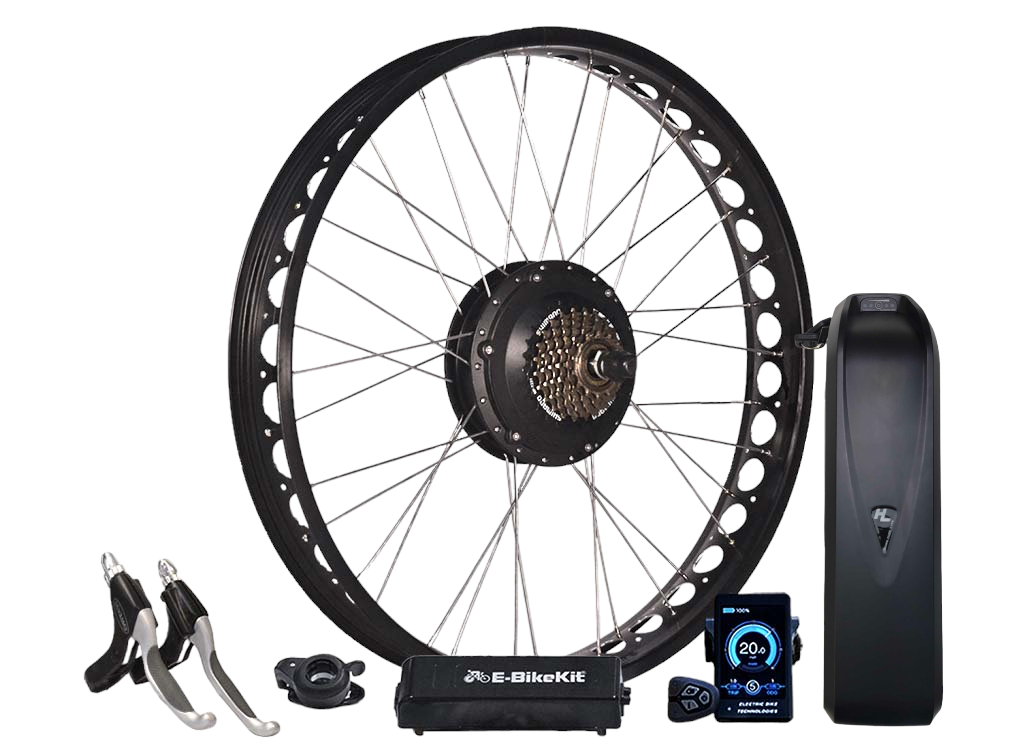

• USA hand-built rear fatbike motor wheel (configured to your spacing)
• 48V-compatible 22A / 12-FET controller
• Programmable LCD dashboard
• PAS split disc and left-side PAS sensor
• Thumb or split-twist throttle
• Left & right e-brake levers
• Main motor cable
• 3-to-1 accessory cable
• Battery wire harness
• 48V 15Ah lithium-ion battery and charger
• Zip ties, C-washers, and torque arms

Learn more: Top 25 Frequently Asked Questions

Questions? Call us toll-free at 1-866-882-3245, Monday–Friday, 9am–5pm EST, or email support@ebikekit.com.

Battery shipping: Lithium-ion batteries ship separately via FedEx/UPS Hazmat and may require a delivery signature. It is normal for components to arrive in multiple shipments.
