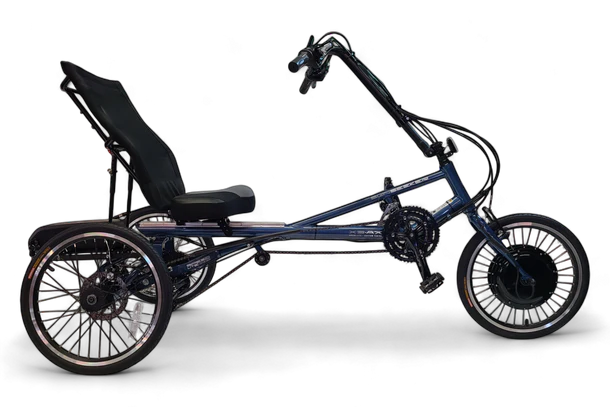

X3 AX Conversion System

• Designed specifically for the X3 AX trike
• Top speed up to 20 mph with a typical 15–30 mile range
• Pedal-assist and throttle-on-demand
• Front 500W direct-drive hub motor
• Optional battery mount upgrade: provides a cleaner, more balanced installation by positioning the battery securely on the trike (select this option above)

A purpose-built electric conversion system engineered specifically for the X3 AX trike, delivering smooth power delivery, durability, and predictable handling.

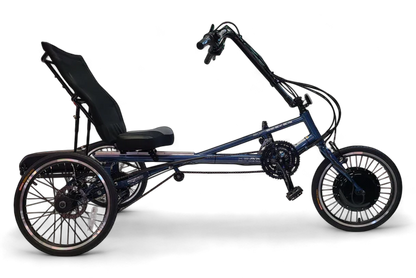

Convert Your X3 AX to Electric

The E-BikeKit™ X3 AX Conversion Kit includes specialized components designed to integrate properly with the X3 AX platform, maintaining correct geometry, balance, and braking behavior.

This system uses a front 500W direct-drive hub motor, chosen for its smooth, reliable power delivery and long-term durability. Direct-drive motors are well suited for steady cruising and consistent assist on trikes.

Who is this kit for? This conversion kit is ideal for riders who want dependable performance, smooth operation, and a clean electric assist experience on the X3 AX. The total system load limit is 300 lbs. Riders exceeding this should consider a heavy-duty system instead.

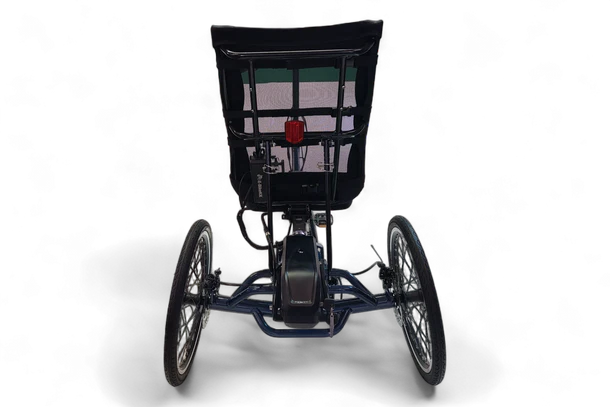

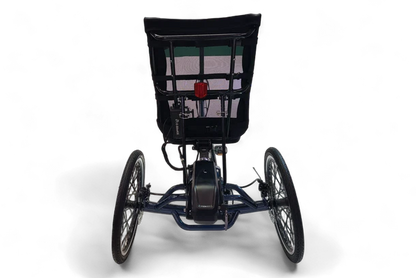

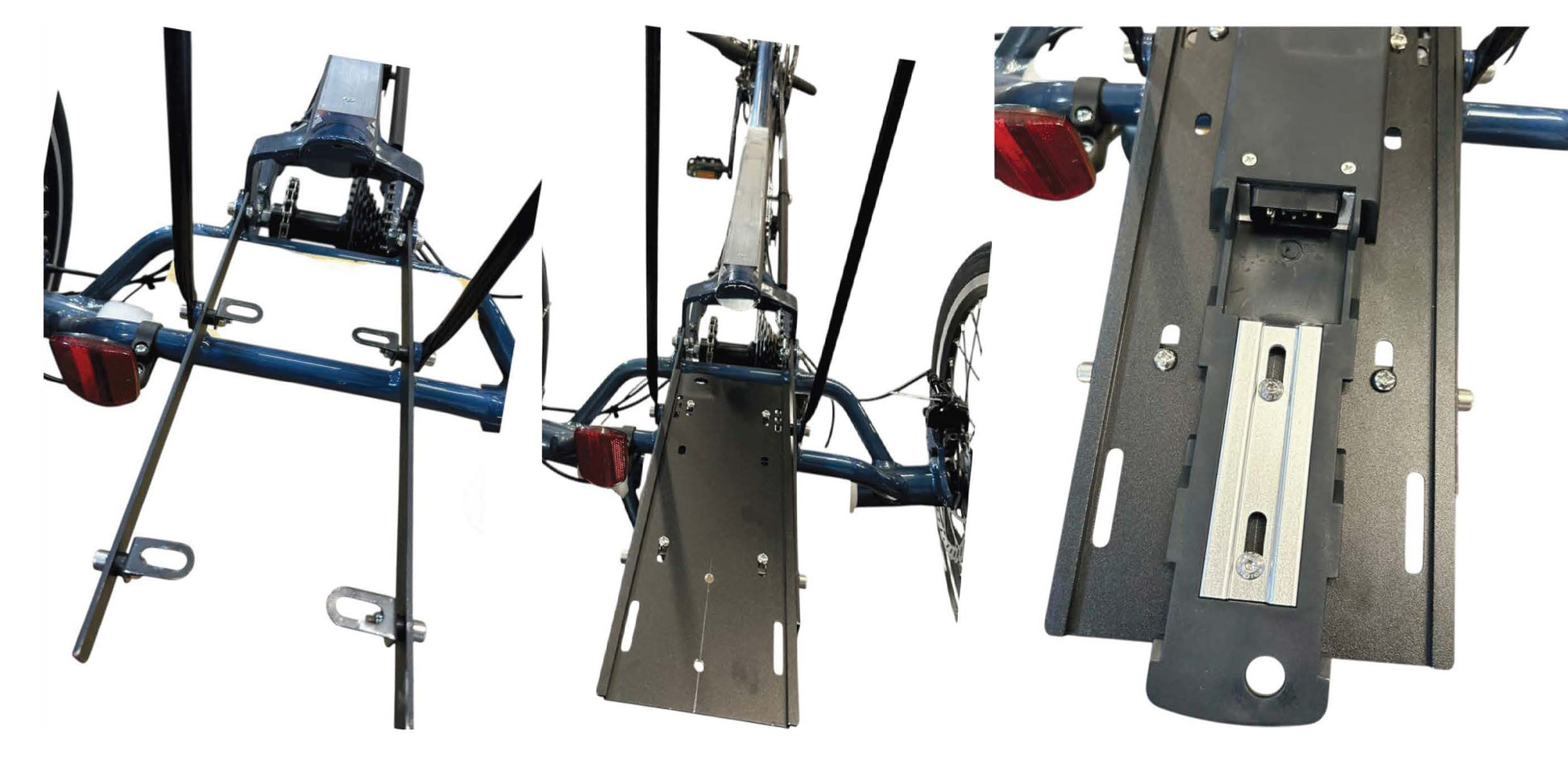

Battery mount upgrade: An optional battery mounting solution is available that allows the battery to be positioned neatly and securely as shown in the product photos. This improves weight distribution and overall fit and finish. Select this option above if desired.

• Motor type: Front direct-drive hub motor
• Nominal / peak power: 500W / >1000W @ 48V
• Top speed: Up to 20 mph
• Estimated range: 15–30 miles (terrain, rider input, and battery dependent)
• System voltage: 48V
• Maximum torque: 46 Nm @ 48V
• Total load limit: 300 lbs

• Nominal voltage: 48V
• Nominal capacity: 15Ah
• Battery energy: ~720Wh
• Estimated charge time: ~5 hours (3A charger)
• Cell configuration: 18650 cells, 13S4P
• Cycle life: 500–800 cycles
• Max continuous discharge: 16A
• BMS protection current: 20A
• Battery weight: 10.1 lbs (4.6 kg)
• Warranty: 1 year

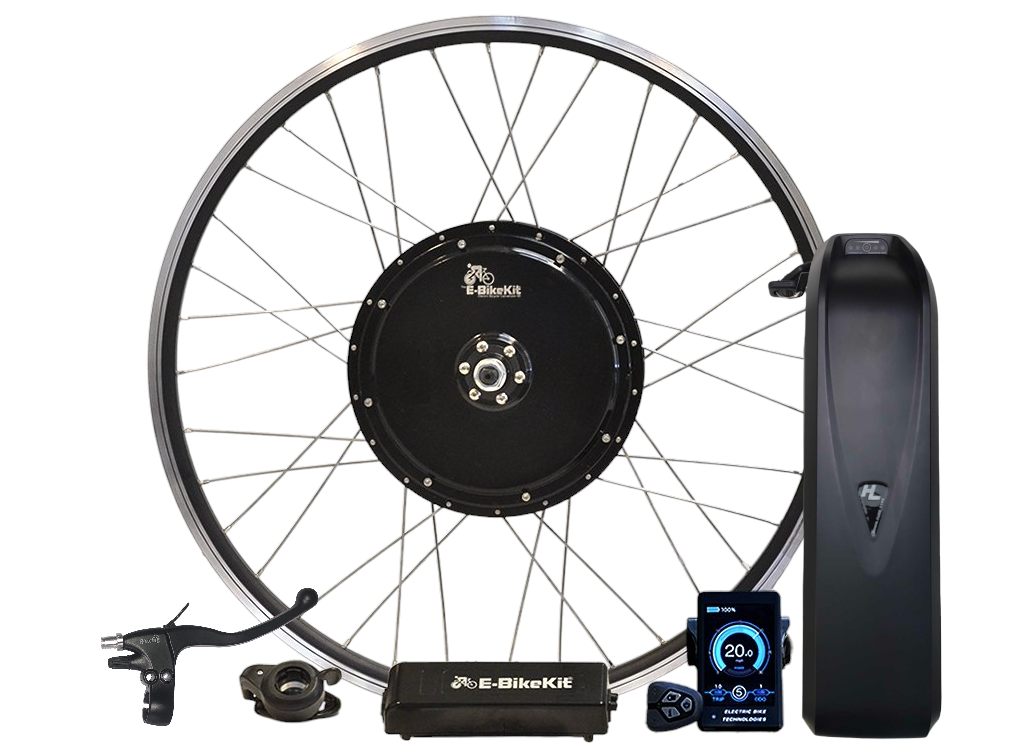

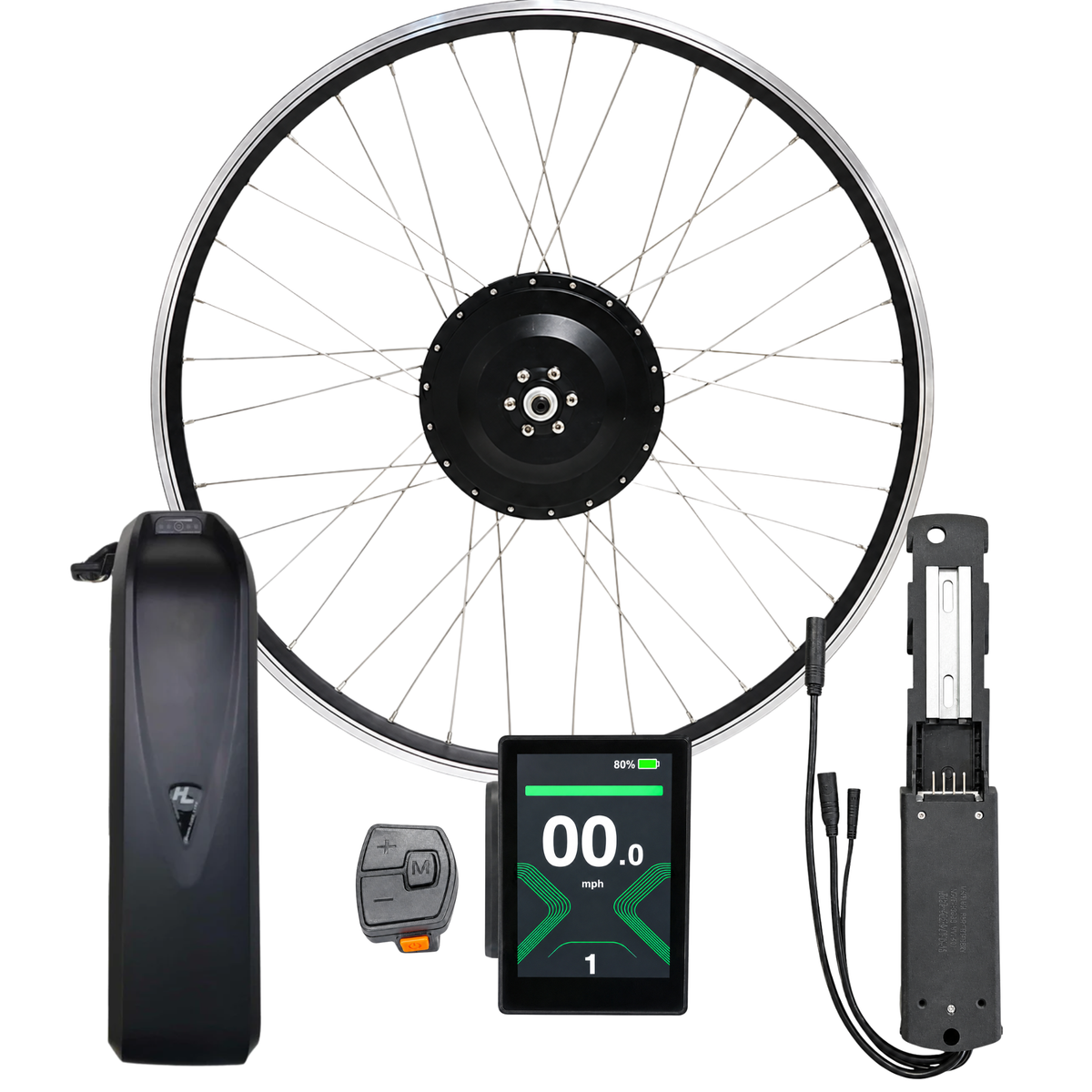

• USA hand-built front wheel with direct-drive hub motor
• 48V-compatible 22A / 12-FET controller

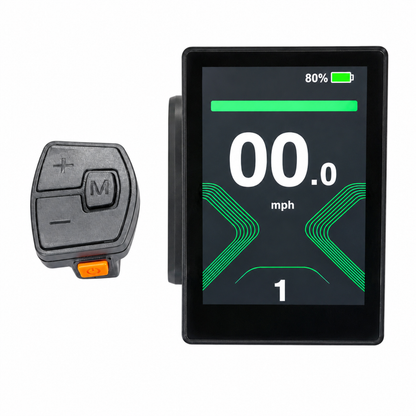

• Programmable LCD dashboard

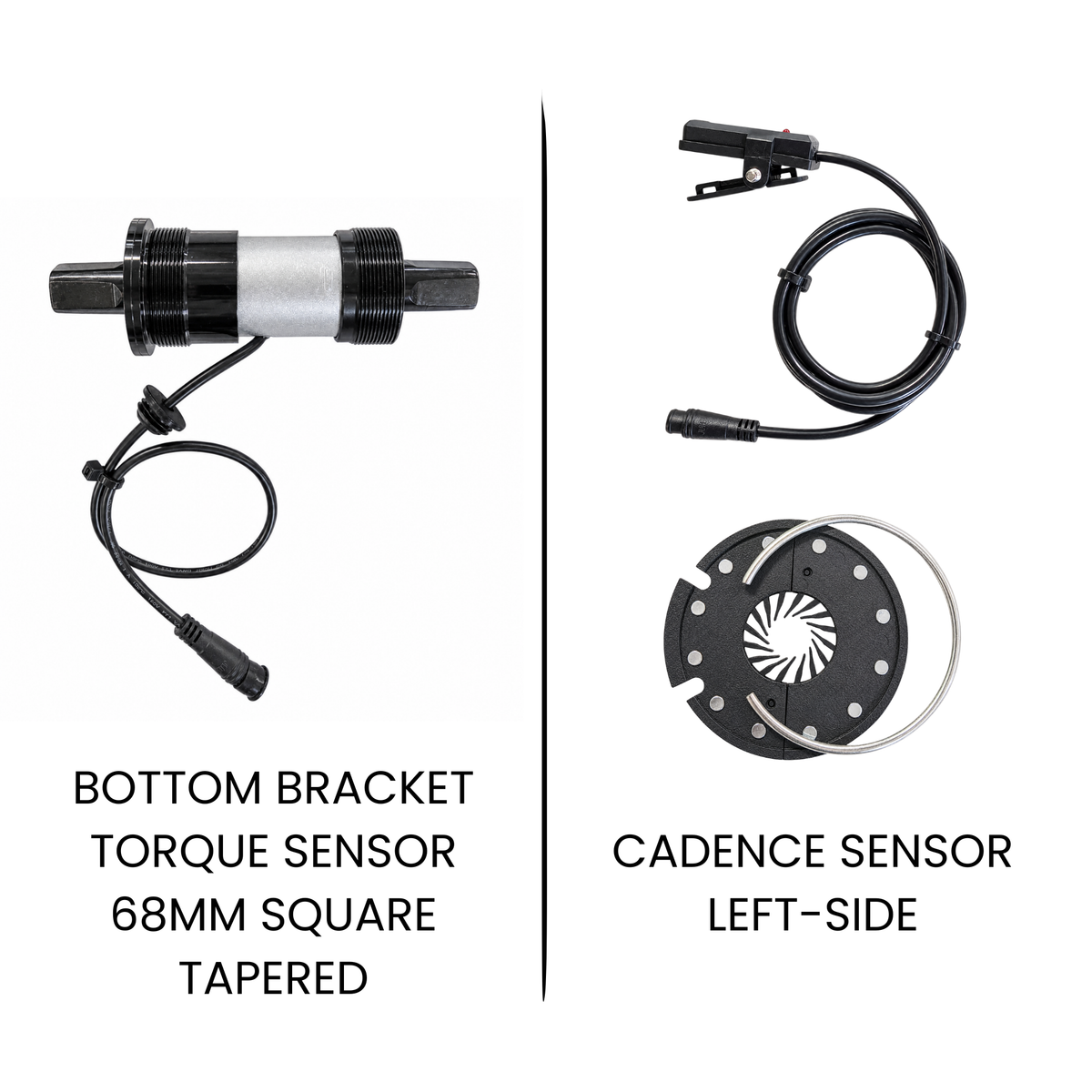

• Mini III PAS left-side sensor

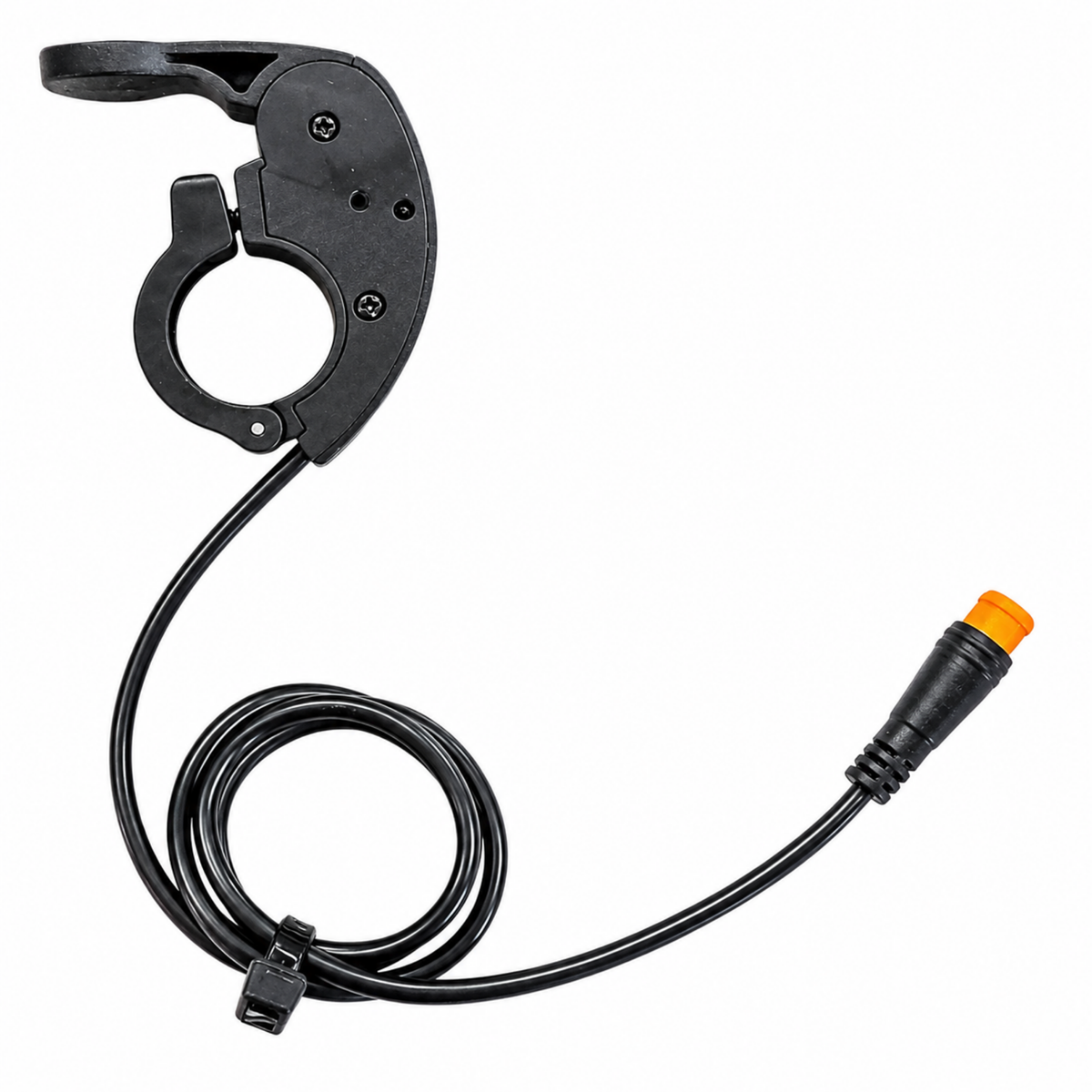

• Thumb throttle

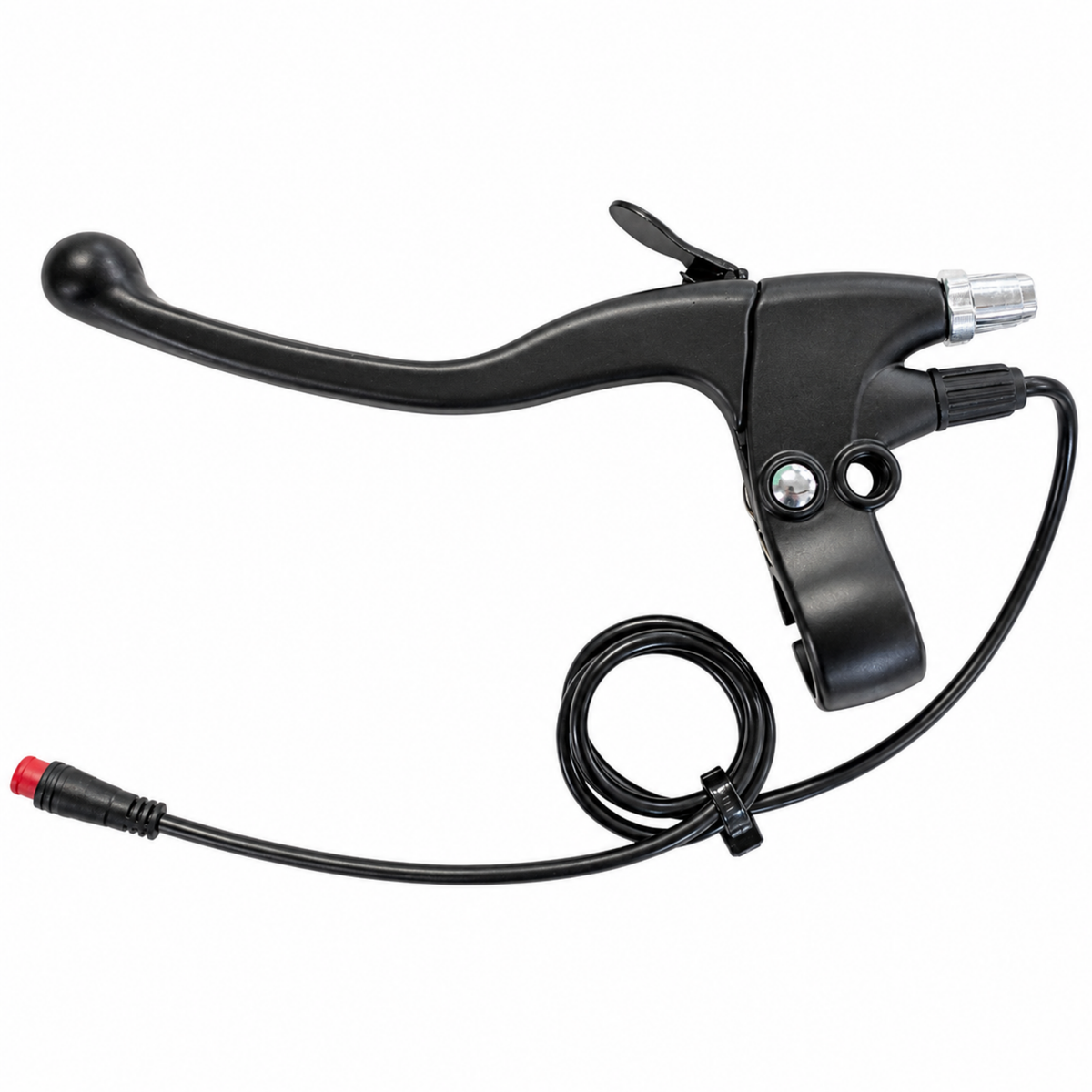

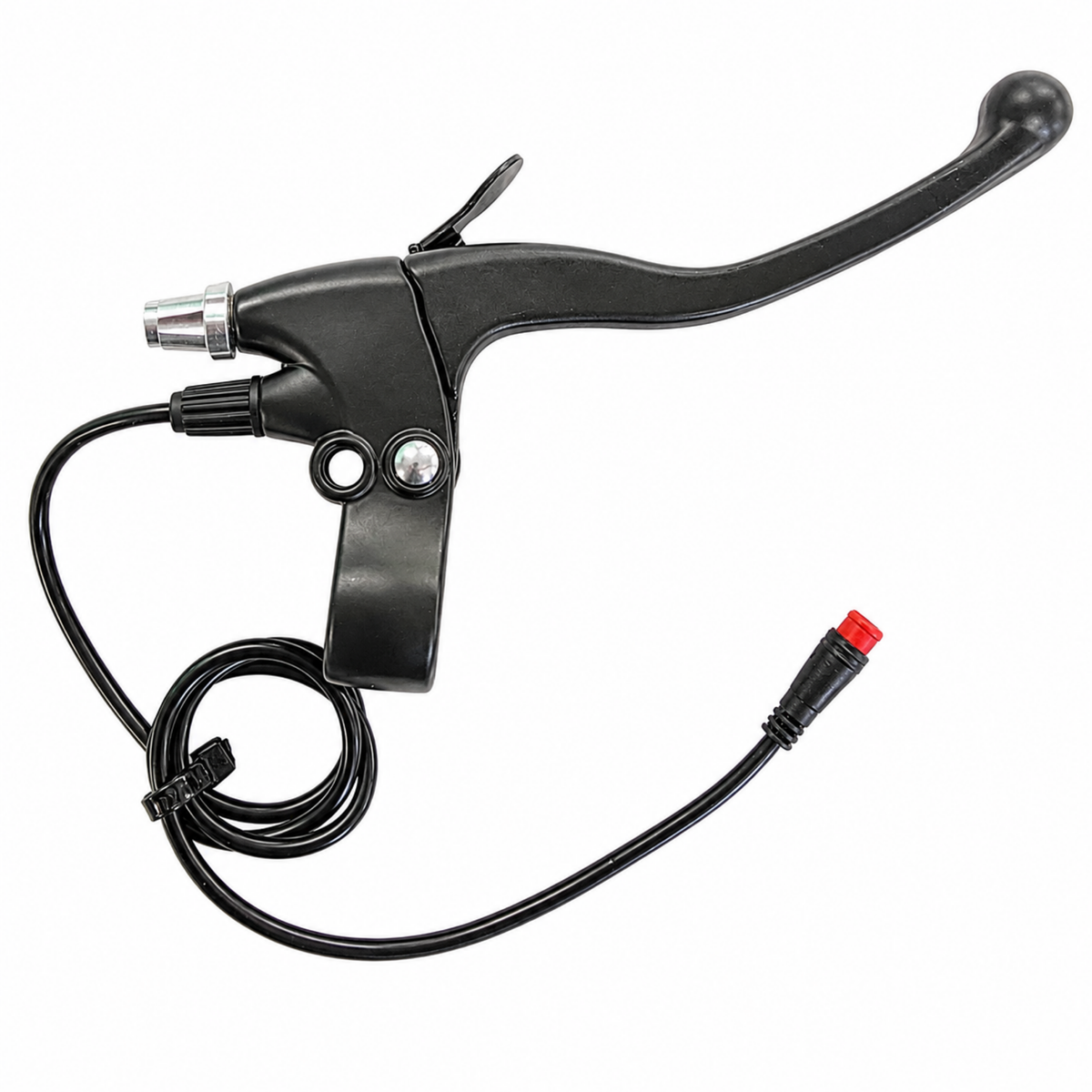

• Right e-brake lever with parking lock

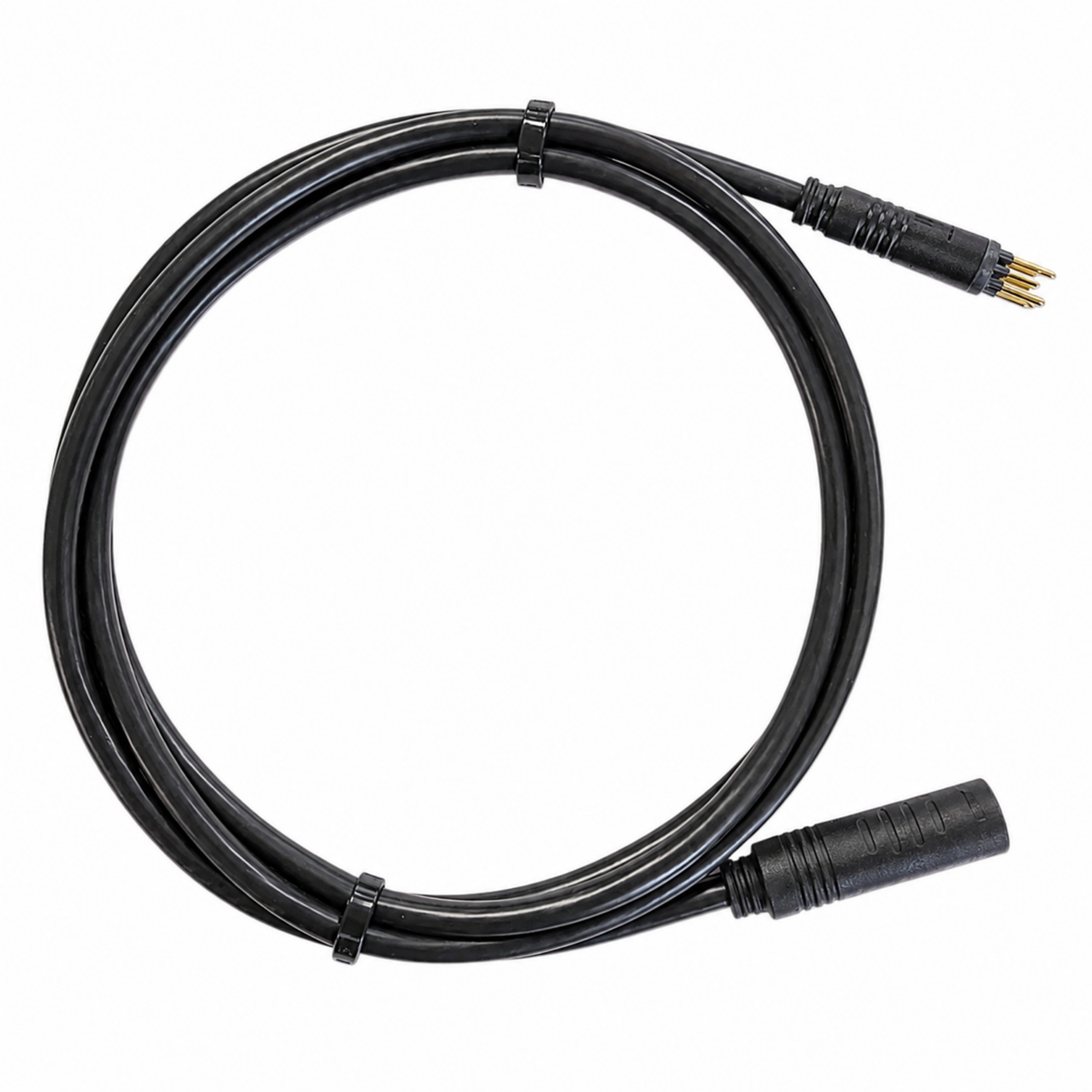

• Motor cable

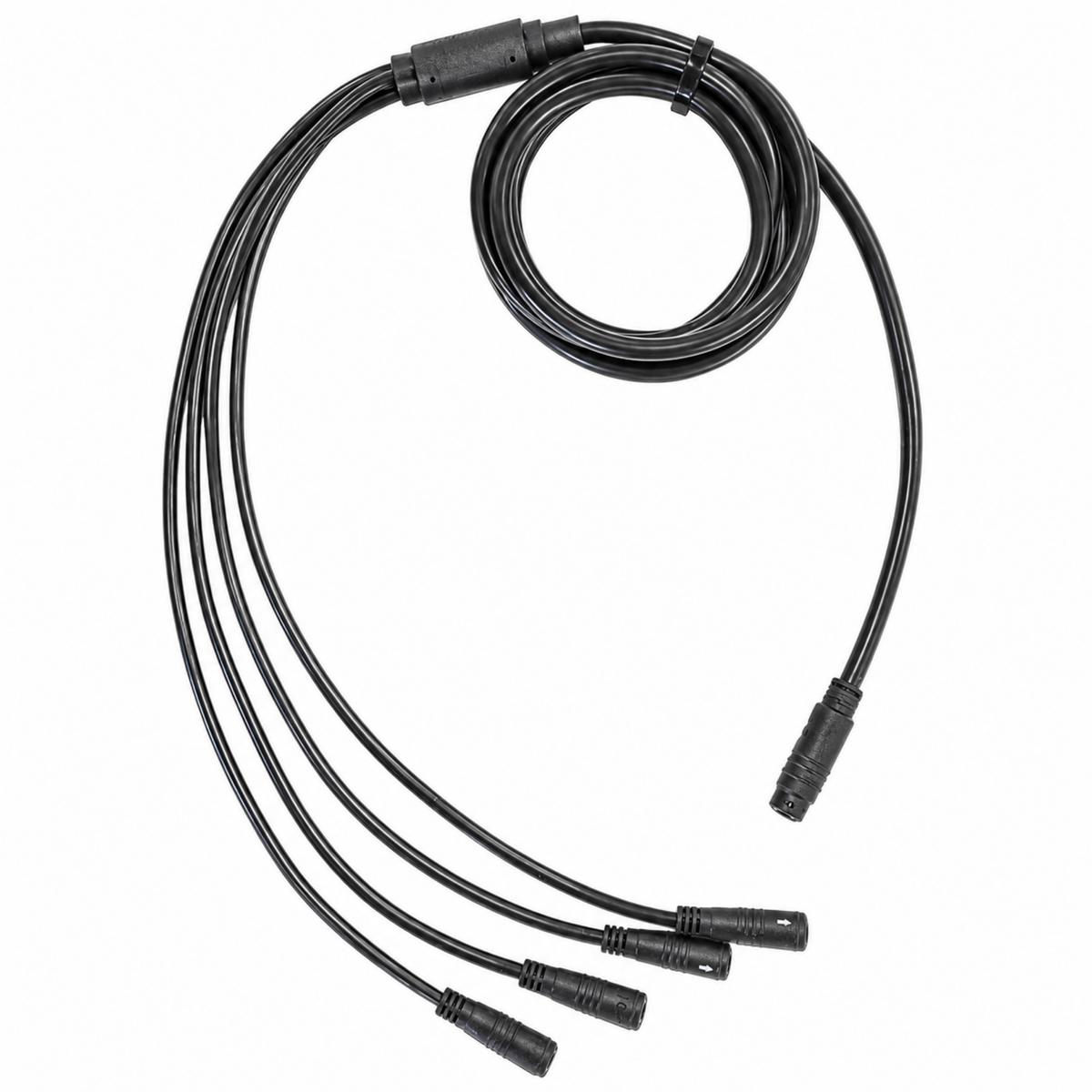

• 3-to-1 accessory cable
• Torque arms, C-washers, zip ties, and mounting hardware

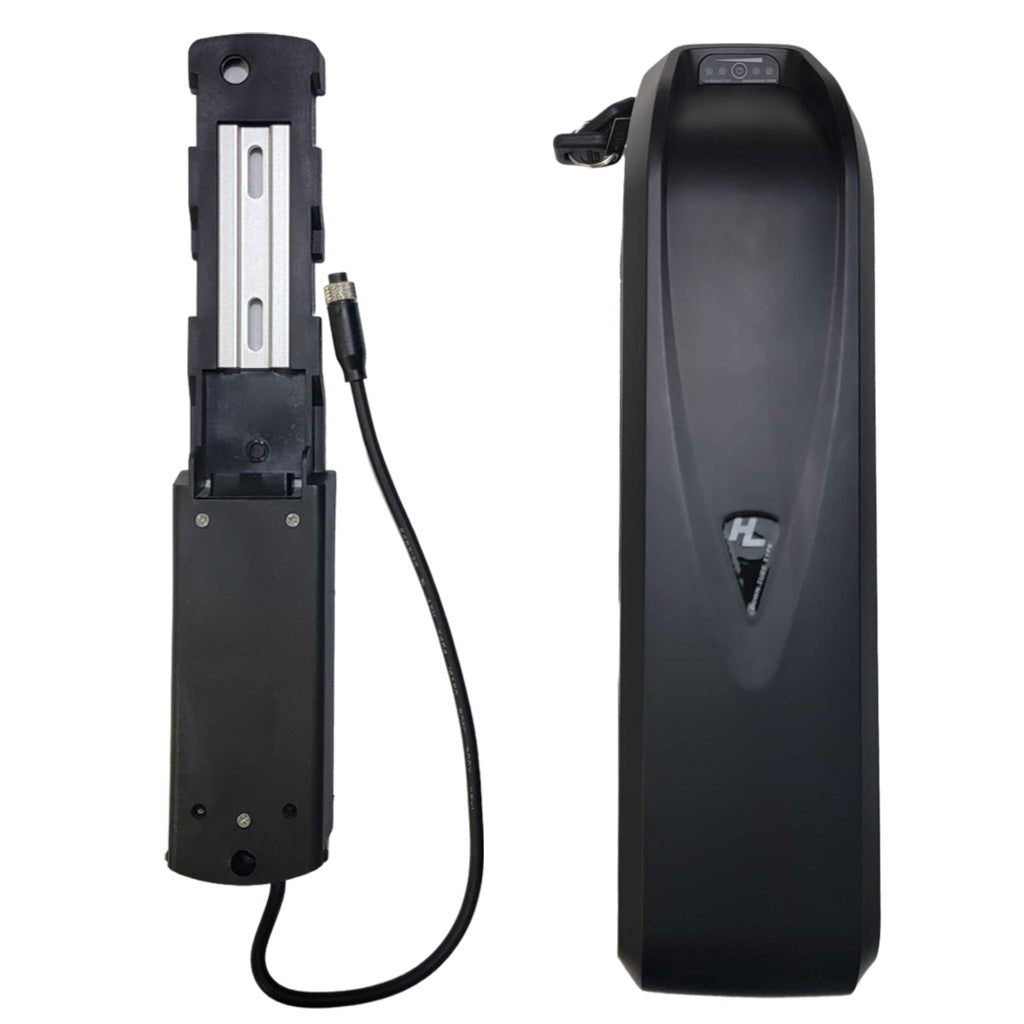

• Battery and charger (only if battery option is selected)
• Battery wire harness (included if no battery is selected)

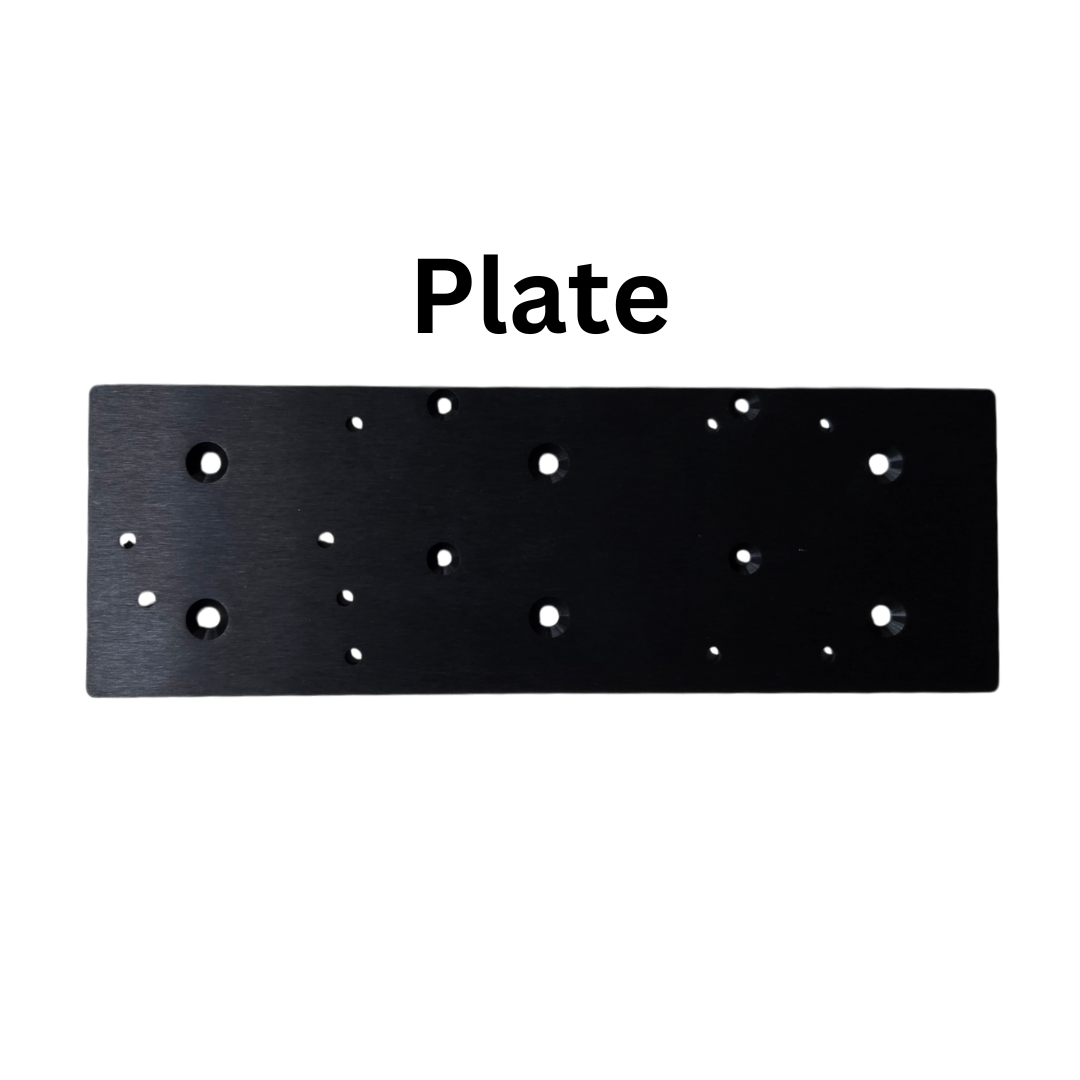

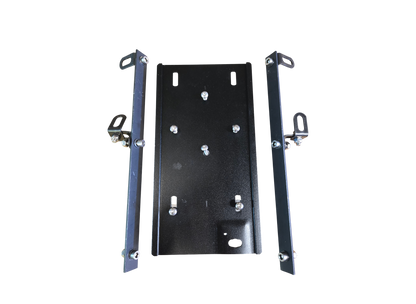

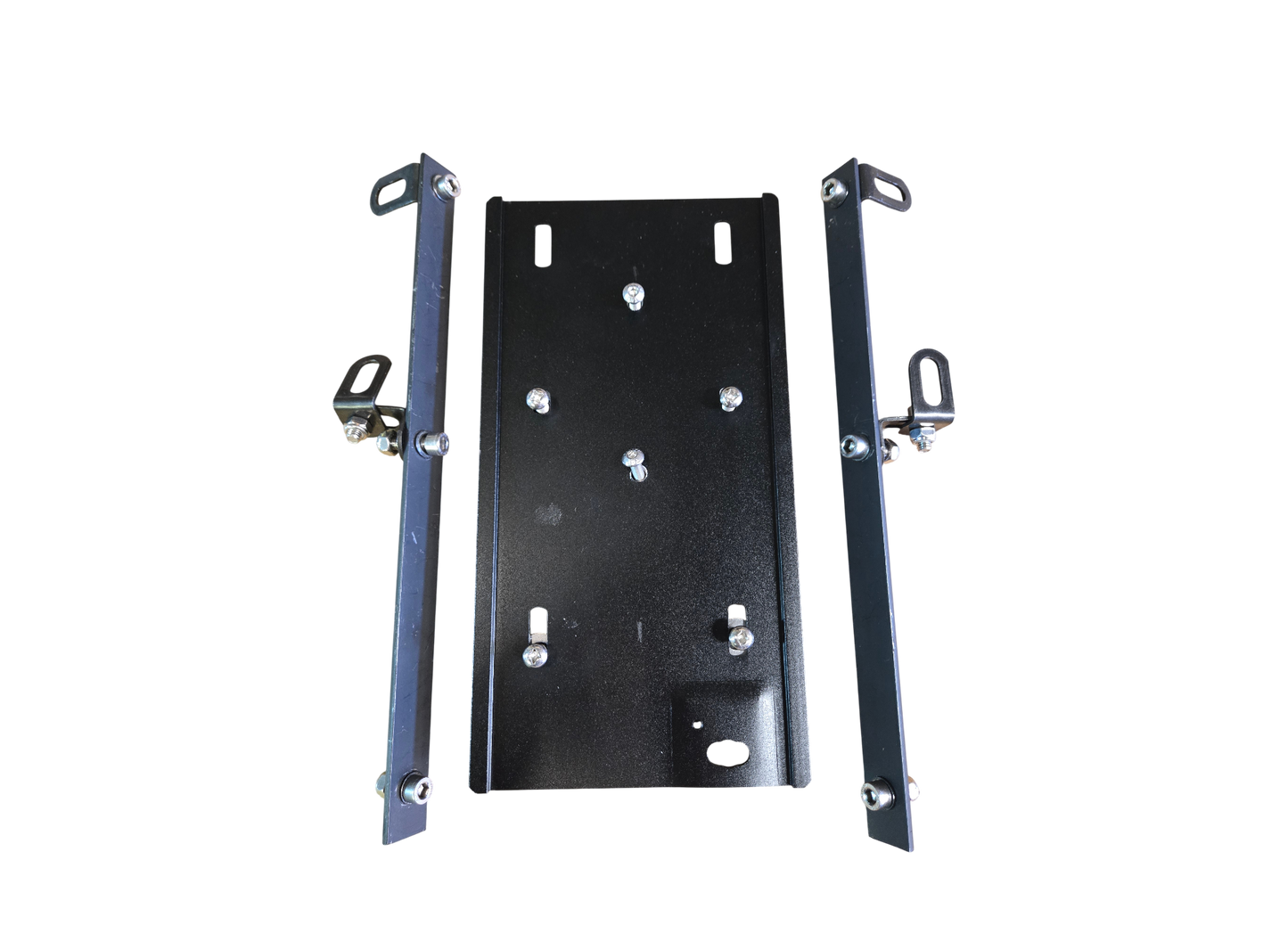

• Battery mounting kit (when selected): includes the battery mounting plate and all required hardware to securely mount the battery in the position shown in the product photos

Learn more: Top 25 Frequently Asked Questions

Questions? Call us toll-free at 1-866-882-3245, Monday–Friday, 9am–5pm EST, or email support@ebikekit.com.

Battery shipping: Lithium-ion batteries ship separately via FedEx Hazmat and may require a delivery signature. It is normal for the kit, battery, and mounting hardware (if applicable) to arrive on different days.
