TerraTrike
Conversion System

  • $722.00 - $1,779.00

Product Code: TERRA-GR20-7-489

TerraTrike electric conversion kit, with a colo lcd computer, controller, throttle and e-brake levers, doesn't include a battery

E-Bike Kit Dealers

Search for an authorized E-BikeKitTM Dealer near YOU!

Loading store locator from Stockist store locator...

No Dealer in Your Area ?

Click here to search for local bike shops in your area Once you find a bike shop , we would encourage you to forward them this New Dealer Application Link
Onboarding is easy and fast. Your local dealer can offer you any of our products and help with conversion if required.
Still need help finding a dealer? Email: support@ebikekit.com

DESCRIPTION

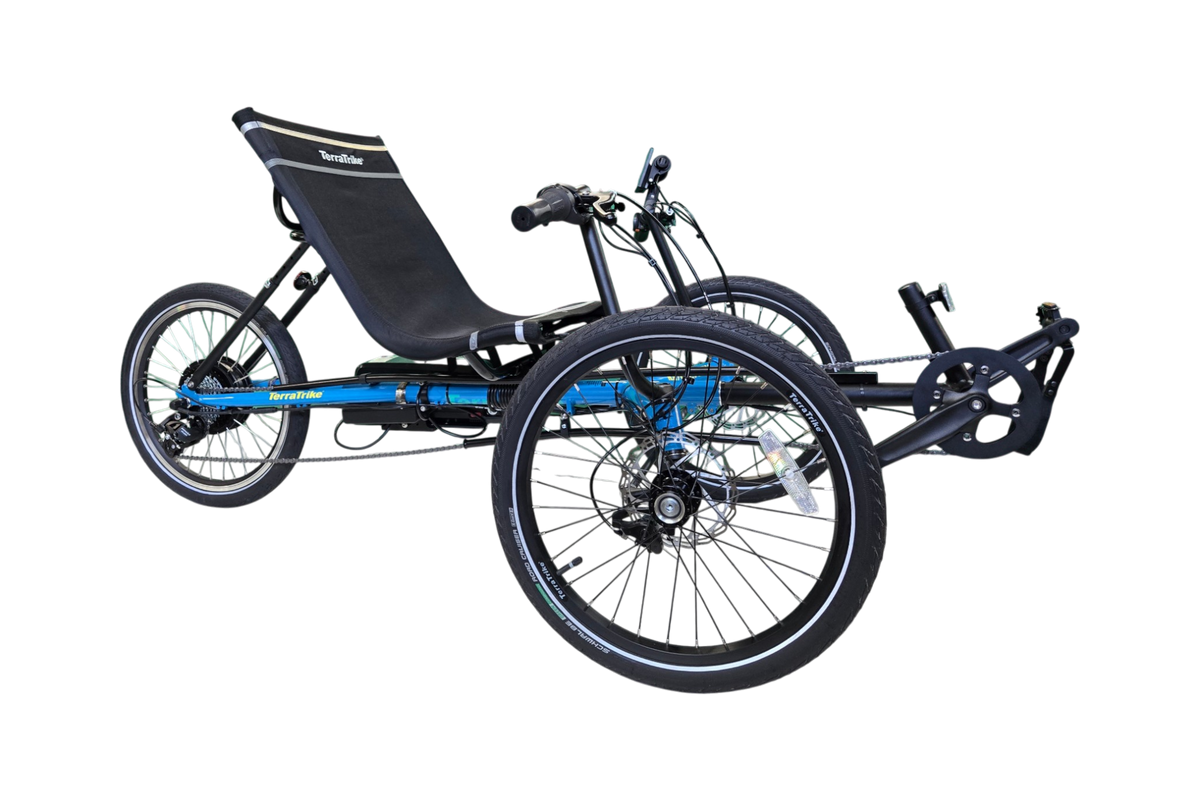

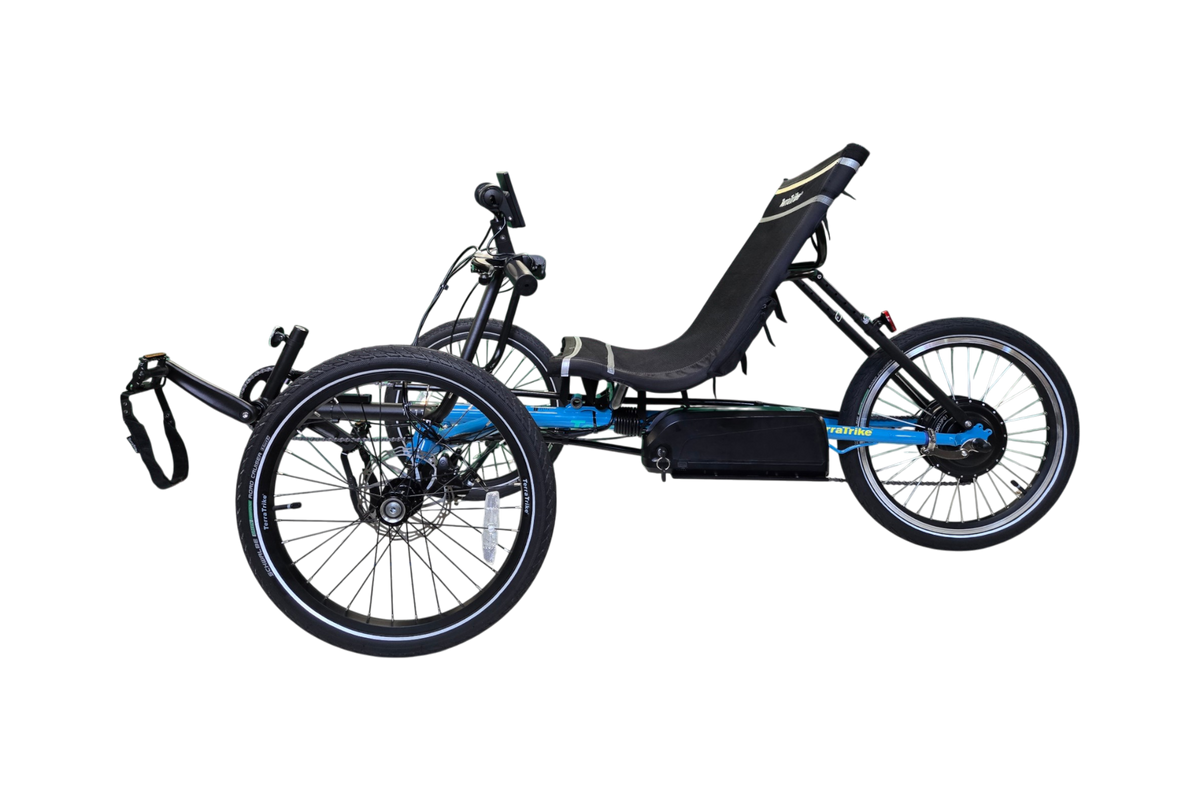

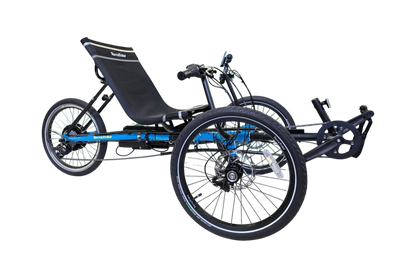

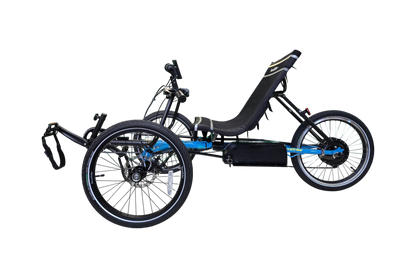

Convert your TerraTrike to Electric!
NOT COMPATIBLE WITH ROVER AND GT MODELS!

Extras Included:

  • PAS Extension Cable
  • Locking Parking E-Brake Levers
  • Topeak BarXtender
  • Extra Long Rack Struts
  • P-Clamps for Rack Mounting
  • Axiom Journey Rear Rack (for 9 and 20Ah batteries) or 2-Tier Rear Rack for 10Ah Batteries


E-BikeKit Rear 500w Geared Hub Motor Conversion Kit with 48v Li-ion Battery Pack and Charger.

The E-BikeKit 500-1000w geared conversion kit is powered by an internal 5:1 planetary gear hub motor with a clutch. The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with "start/stop" riding), has more starting torque, and has greater hill-climbing ability than a direct drive motor of equal power rating. The motor is also smaller in diameter for increased stealth and 3.4 lbs lighter than the 500w direct drive.

Who's it for? This premium electric bike conversion kit system is for those that want the best of the best in performance, efficiency, weight, stealth, and speed. The top speed is 28 mph! There is a 300 lbs total load limit so if you plan on more than that, look to a heavy-duty system.

System Specs:

Watts (Nominal/Peak): 500-1000w (EBK 22Amp Controller)
Top Speed: Approx. 26 mph @ 48v in 26" wheel
Range: 10-44 Miles
Charge Time: 3-5 hrs (from 0-100% and depending on battery choice)
Weight: 21 lbs (9.5 kgs)
Performance: High
Efficiency: High
Stealth Factor: High

Lithium batteries provide a high level of performance for the duration of each discharge (unlike seal lead-acid where performance is diminished 1:1 as the pack is emptied). Lithium batteries have a much higher power to weight ratio than lead-acid and 5-8 times the number of charge cycles (how many times a rechargeable battery can be charged from 0-100%). The lithium option costs more initially, but over time, the "cost-per-cycle" is about half the cost of lead-acid. Lithium packs also require less care as they can be left partially charged, and do not require immediate charging after each use. All batteries MUST be properly cared for during storage.


Battery Choice: We offer 3 battery packs for this kit. The 9Ah li-Ion shrink-wrapped battery is the lightest and smallest, at just 5.8 lbs. The 20Ah li-Ion shrink-wrapped battery is the longest-lasting, with a 20-44 mile range. The 10Ah li-Ion aluminum case battery is a rugged enclosure, carrying handle, and locks in place with a key.

48v 9Ah Bag Battery

  • Range: 9-18 Miles
  • Price: $1,304.00 - $1,798.00 (Depending on Freewheel)

This e-bike battery is a lightweight and easy to carry pack. Two of these packs will fit into one canvas battery bag (included) nicely, offering the option of taking one or two of these depending on your range needs. You do have to connect them one at a time as needed; same for charging.

** It is common to carry two 48v 9Ah batteries in the same canvas bag in order to double your range. However, these batteries can not be used in parallel with one another. In other words, you would have to physically unplug one, in order to use the other. **

48v 10Ah w/ 2-Tier Rack

  • Range: 10-20 Miles
  • Price: $1528.00 - $1,586.00 (Depending on Freewheel)

This li-ion e-bike battery offers a nice finished look plus a locking mechanism for securing the battery in the middle section of an included 2-tiered rack. The top of the rack remains clear and available.

48v 20Ah Bag Battery

  • Range: 20-40 Miles
  • Price: $1,740.00 - $1798.00 (Depending on Freewheel)

This e-bike battery is the largest capacity, longest range e-bike battery we offer. This pack weighs 14lbs and comes in our canvas battery bag with velcro straps for securing it to the top of a conventional rear rack (not included).

Choosing Your Wheel Size: You can find your wheel size written on your tire. Available size options for this conversion kit are: 16", 20", 24", 26", 700c, and 29er. Acceptable tire widths for the E-BikeKit rims: 1.15" (29mm) - 2.25" (57mm).

Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility

Helpful Resources: Helpful Videos | Owner's Manuals

Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help you with compatibility questions and make recommendations on additional parts that you may need.

Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday 9 am - 5 pm EST. Outside of business hours get help fast via e-mail.

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and are require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.

MOTOR SPECS


Brand: Electric Bike Technologies, Inc.
Type: Internally Geared (brushless, and disc brake compatible)
Power: 500w Nominal / > 1000 @ 48v
Max Torque: 84Nm @ 48v
Max RPM: 320 @ 48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32" (10.4 mm)
Weight: 9.4 lbs (4.26 kg)
Warranty: 1 Year (up to 48v - 300 lbs max load)

BATTERY SPECS


Nominal Voltage: 48v
Nominal Capacity: 9Ah / 10Ah / 20Ah (0.2C)
Battery Energy: 421Wh / 468Wh / 936Wh approx.
Total Weight: 5.8 lbs / 9.7 lbs / 14 lbs
Cell Assembly: 18650-3.6v-13S  4P / 5P / 10P
Life Cycles: 800-1000 Cycles
Max Continuous Discharge: 20A / 22.5A / 50A
BMS Protection Current: 30A / 30A / 60A
Discharge Cut-Off Voltage: 39v
Max Charge Voltage: 54.6v
Inner Resistance: 180mΩ / 180mΩ / 220mΩ
Charge Time: 4 Hrs. / 3 Hrs. / 5 Hrs.
Operation Temperature Range: Charge: 0°C – 45°C / Discharge: -20°C – 60°C
Storage Temperature: 0°C – 40°C (Extended Storage: 15°C – 25°C;)
Battery Case Material: Blue PVC Heatshrink / Aluminum / Blue PVC Heatshrink
Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies, Inc.

** System includes battery carrying rear rack only when purchased with a 48v 10Ah aluminum case battery. Otherwise includes a battery bag.

UN 38.3 Certified e-bike battery

Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS

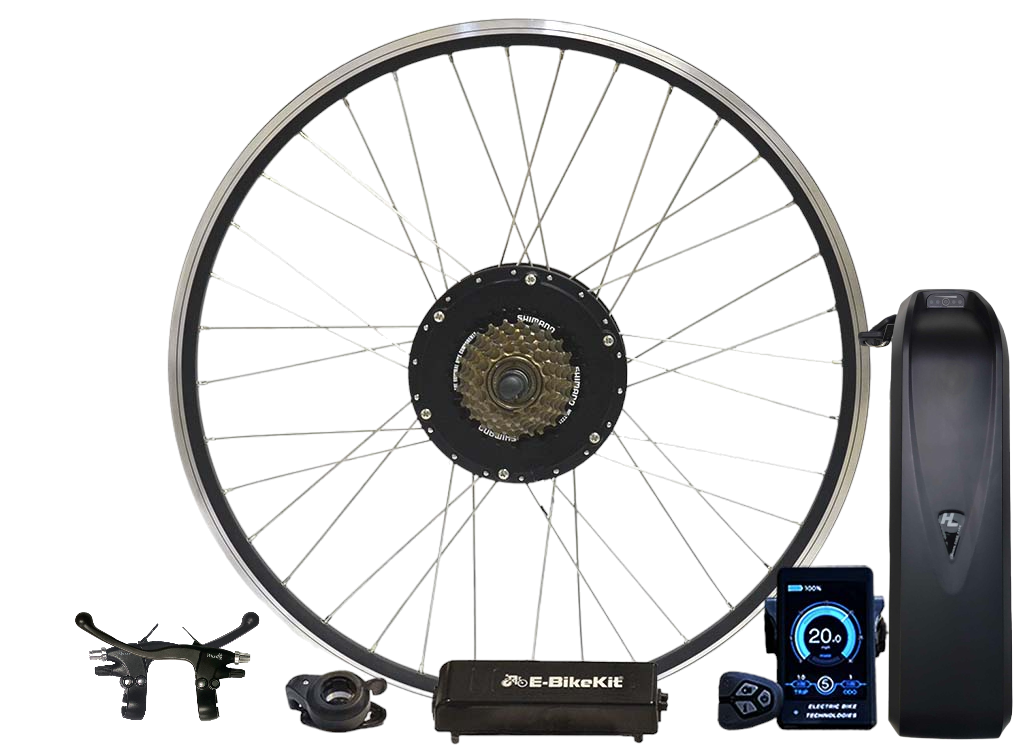

INCLUDES


Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.

1 x USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
1 x 48V Compatible 22Amp 12FET Controller
1 x Programmable LCD Dashboard
1 x PAS 12-Magnet Split Disc
1 x PAS Sensor Right Side Mount (under BB mount for derailleur cable guide boss)
1 x Thumb Throttle
2 x Left and Right E-Brake Levers w/ Parking Lock
1 x Motor Cable
1 x Accessory Cable
1 x Battery Wire Harness (kits w/o batteries only)
1 x Freewheel (rears only)
1 x Battery
1 x Battery Charger
1 x Owner's Manual (an online PDF)
**Zip Ties, C-Washers, and Torque Arms in Every Kit!

Extras for Terratrike Kit:

1 x PAS Extension Cable
1 x Locking Parking Brake Levers
1 x Topeak BarXtender and 28.6mm Shims mounting LCD to BarXtender
1 x P-Clamps for Rack Mounting
1 x Axiom Journey Rear Rack, (for 9 and 20Ah batteries), or 2-Tier Rear Rack for 10Ah Batteries

Parts you'll need for your E-TrikeKit conversion kit
