EZ-Tri Classic
Conversion System

  • $609.25

Product Code: EZTRI-GF16

Availability: In stock

  • Special Parts for EZ-Tri Classic
  • 26 Mph @48v / 9-42 Mile Range*
  • Pedal-Assist & Throttle On Demand

Subject to $35 DOT HazMat Shipping fee


Description

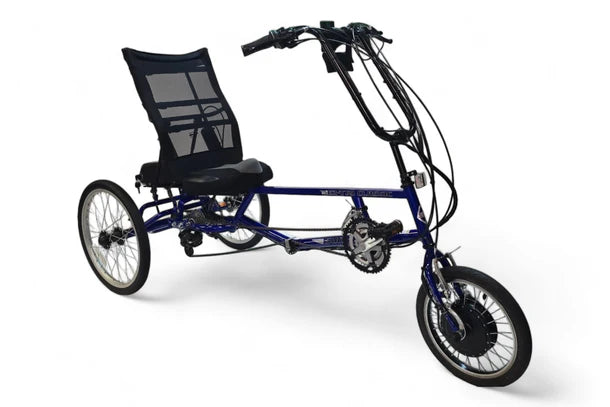

Convert your Sunseeker EZ-Tri Classic to Electric!

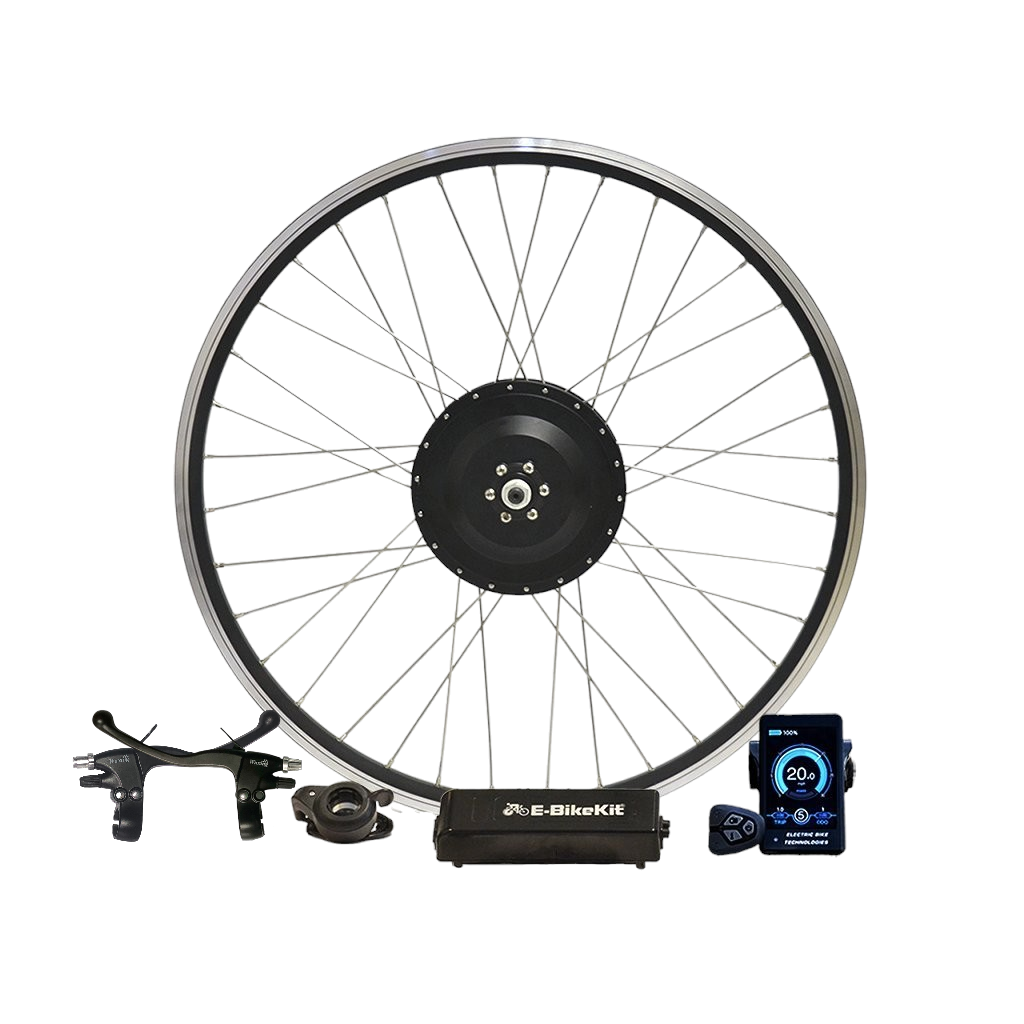

E-BikeKit Front 500w Geared Hub Motor Conversion Kit with 48 Volt Li-ion Battery Pack and Charger The E-BikeKit 500-1000w geared conversion kit is powered by an internal 5:1 planetary gear hub motor with a clutch. The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with "start/stop" riding), has more starting torque, and has greater hill-climbing ability than a direct-drive motor of equal power rating. The motor is also smaller in diameter for increased stealth and 3.4lbs lighter than the 500w direct-drive.

Who's it for? This premium electric bike conversion kit system is for those that want the best of the best in performance, efficiency, weight, and stealth. There is a 300lb total load limit so if you plan on more than that, look to a heavy-duty system.

System Specs:
Watts: (Nominal/Peak) 500-750w (EBK 22Amp Controller)
Top Speed: Approx. 20 MPH @48vin 26" Wheel
Range: 10-44 Miles* (see battery chart)
Charge Time: 3-5hrs (0-100%) (depending on battery choice)
Weight: 489 5.8lbs / 4810 9.7lbs / 4820 14lbs
Performance: High
Efficiency: High
Stealth Factor: High

Li-ion batteries provide a high level of performance for the duration of each discharge (unlike seal lead-acid where performance is diminished 1:1 as the pack is emptied). Li-ion batteries have a much higher power to weight ratio than lead-acid and 5-8 times the number of charge cycles (how many times a rechargeable battery can be charged from 0-100%). The li-ion option costs more initially, but over time, the "cost-per-cycle" is about half the cost of lead-acid. Li-ion packs also require less care as they can be left partially charged, and do not require immediate charging after each use. All batteries MUST be properly cared for during storage.



Battery Choice:
We offer 3 battery packs for this kit - the 9Ah li-ion shrink-wrapped battery is the lightest and smallest, at just 5.8lbs. The 20Ah li-ion shrink-wrapped battery is the longest-lasting, with a 20-44 mile range.

Model Weight Range Mount Style Cost

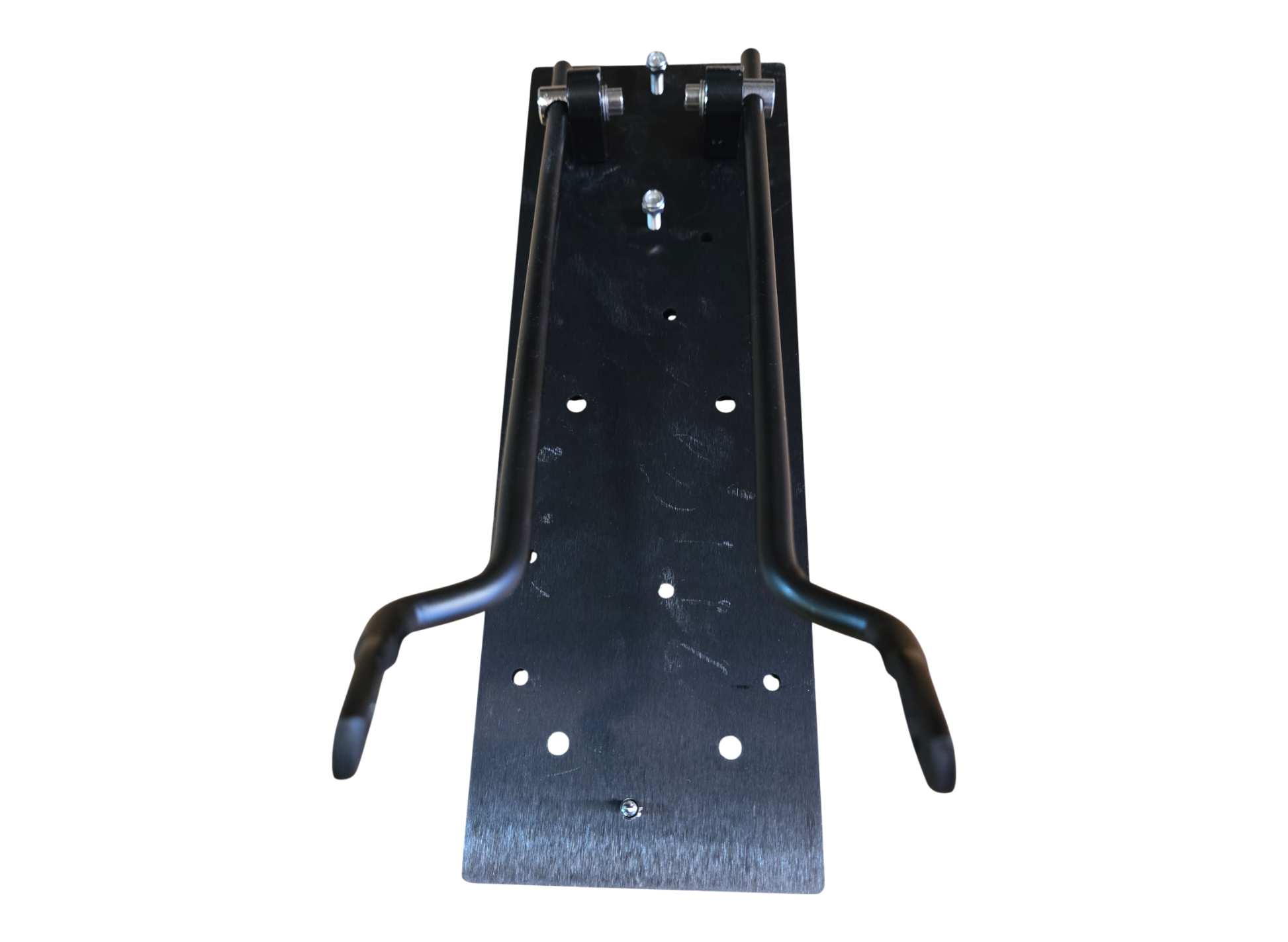

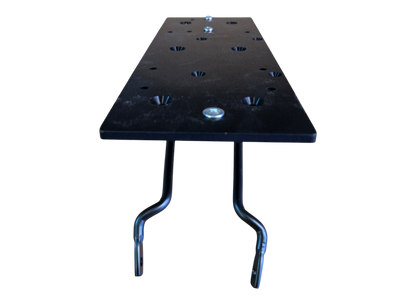

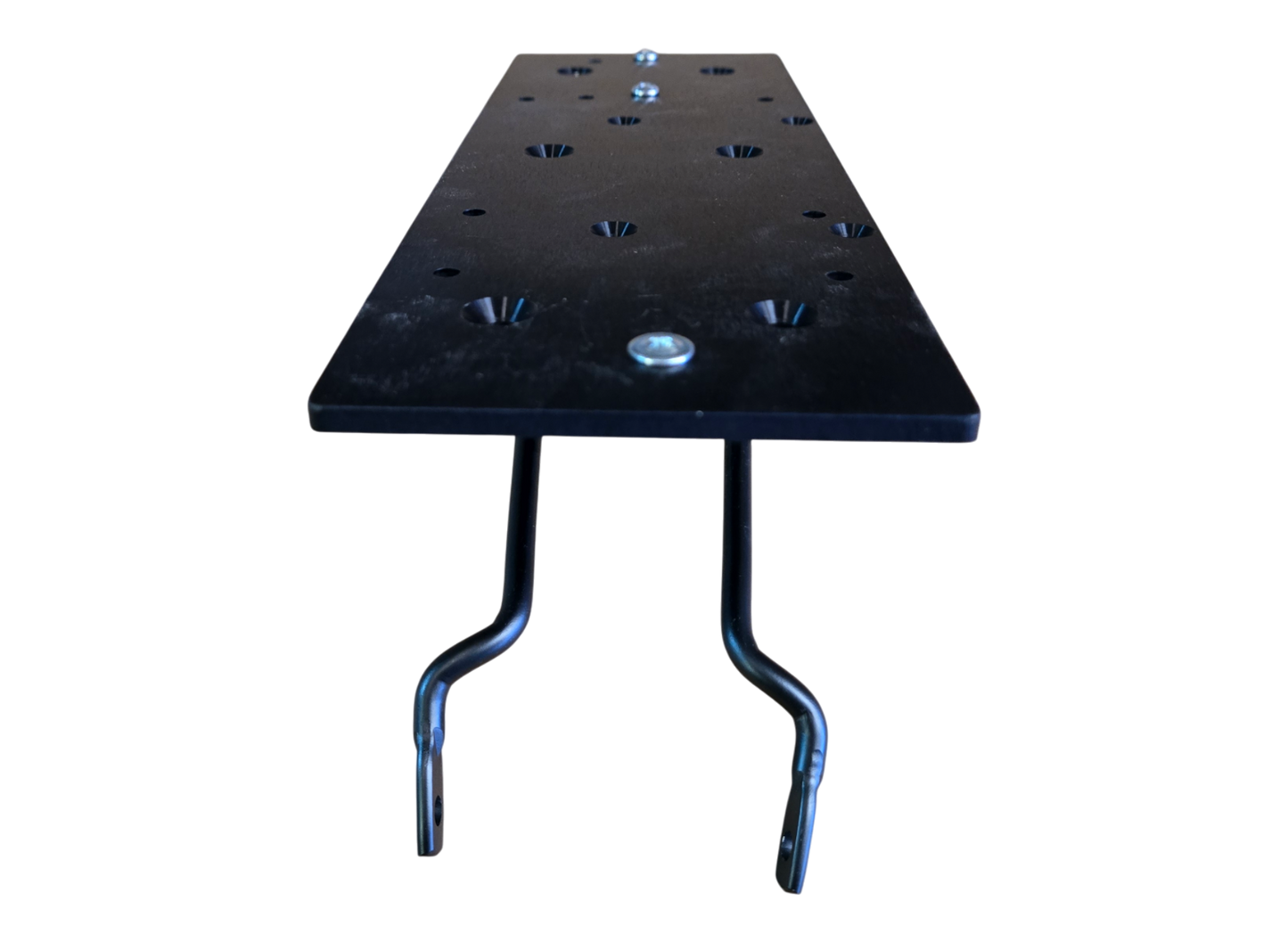

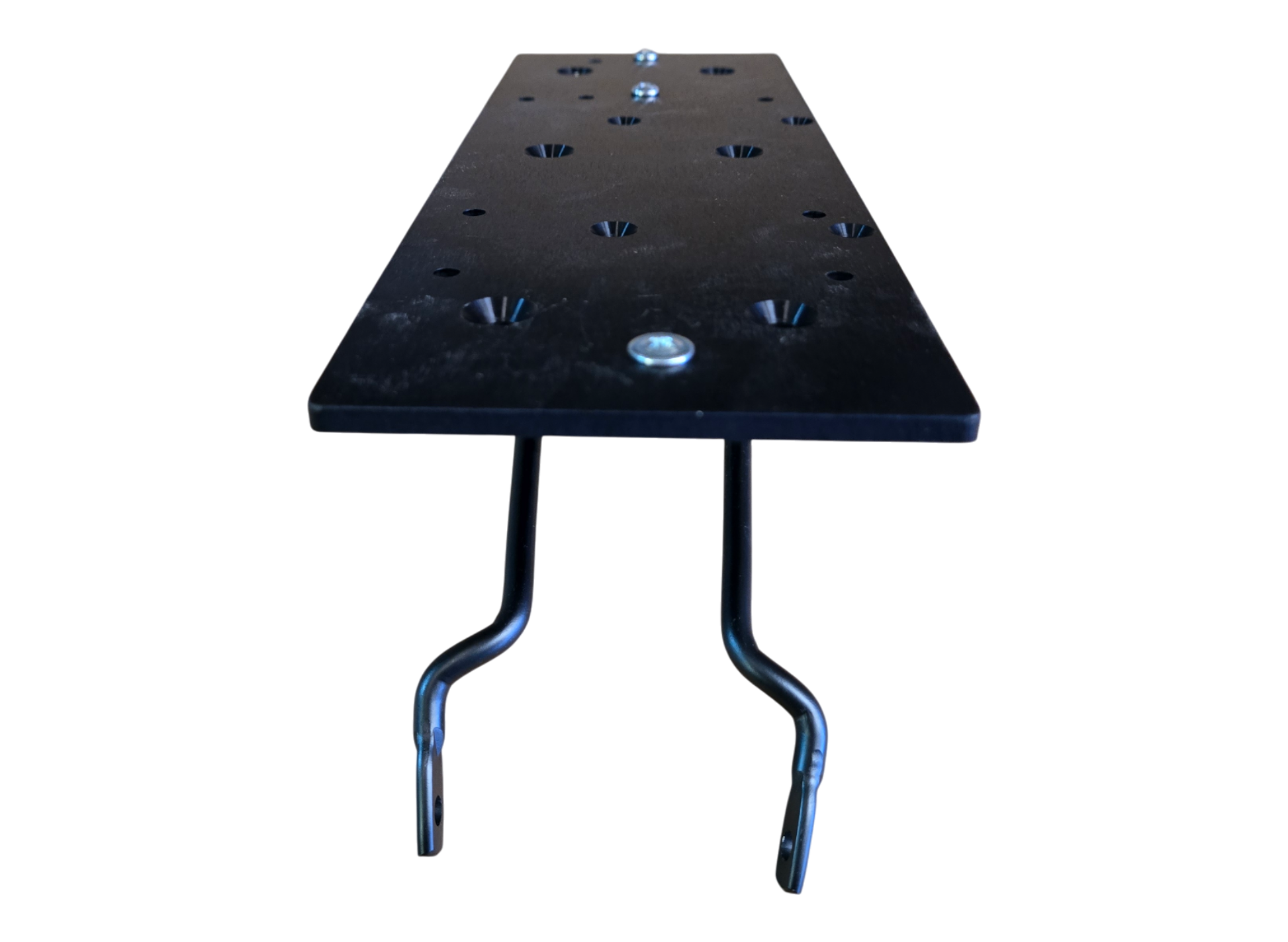

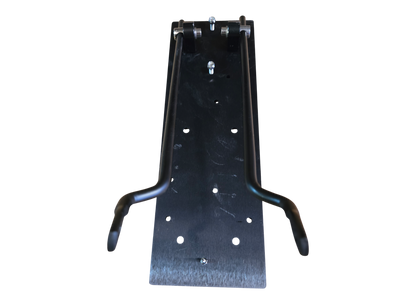

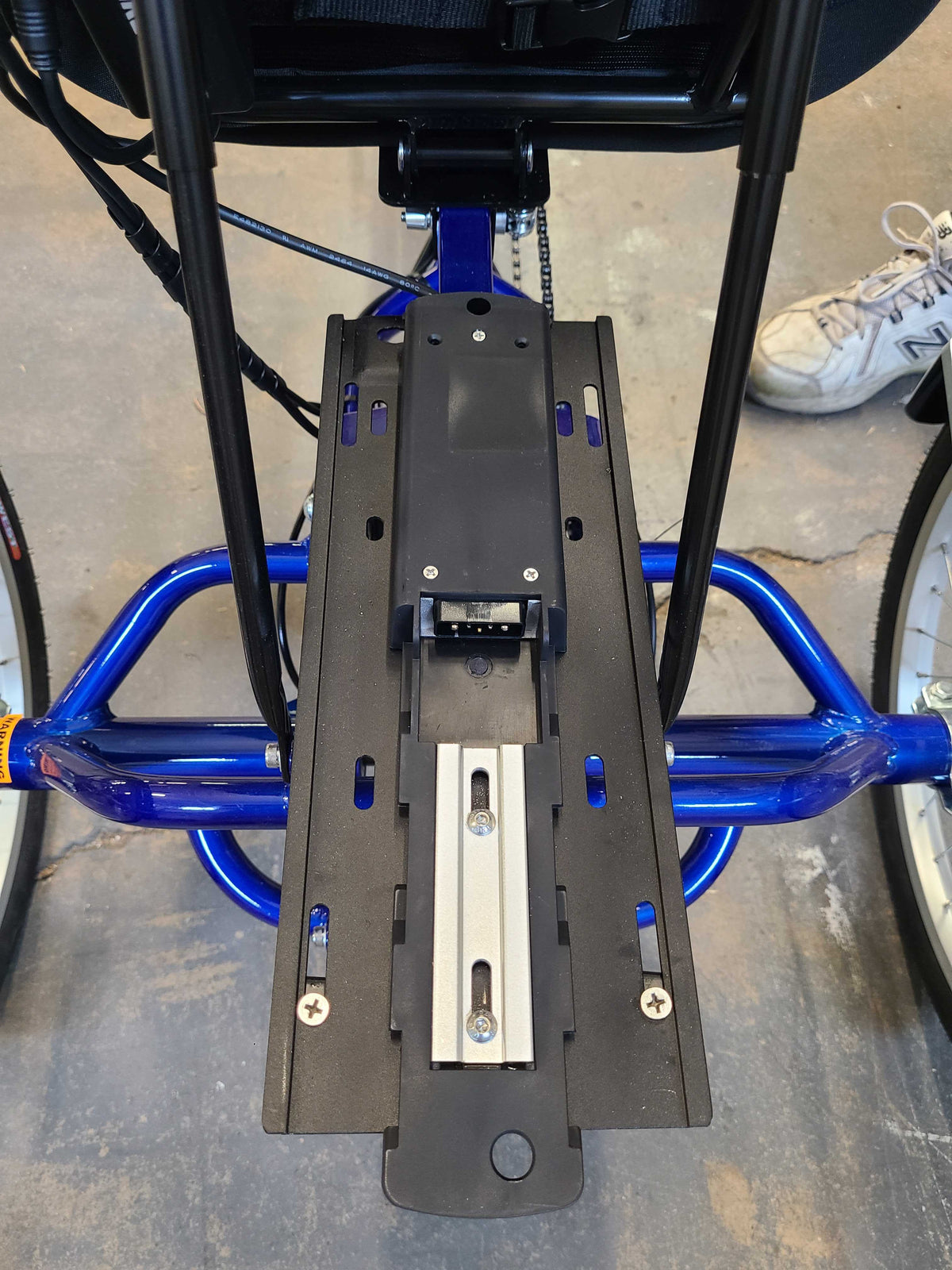

48v 9Ah Shrink Wrapped 5.8lbs 9-21 Battery bag w/ velcro straps & mounting plate to mount to the rear frame +$470
48v 10Ah Aluminum Case 9.7lbs. 10-24
Mounting plate to mount to the rear frame +$665
48v 20Ah Shrink Wrapped 14lbs 20-44 Battery bag w/ velcro straps & mounting plate to mount to the rear frame +$850


Choosing Your Wheel Size:
 You can find your wheel size written on your tire. Available size options for this conversion kit are: 16", 20", 24", 26", 700c and 29er. Acceptable tire widths for the E-BikeKit rims: 1.15" (29mm) - 2.25" (57mm).

Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility

Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.

Helpful Resources: Installation Videos | Owner's Manuals

Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday 9 am-5 pm EST. Outside of business hours get help fast via email.

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and are require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.

Motor Specs


Brand: Electric Bike Technologies, Inc.
Type: Internally Geared (brushless, disc brake compatible)
Power: 500w Nominal / >1000 @48v
Max Torque: 84N-m @48v
Max RPM: 320 @48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32" (10.4mm)
Weight: 9.4lbs (4.26kg)
Warranty: 1 Year (up to 48v - 300lb max load)

Battery Specs


Nominal Voltage: 36v/48v
Nominal Capacity: 9Ah / 10ah / 20Ah (0.2C)
Battery Energy: 378Wh / 840Wh approx.
Dimensions: See table
Total Weight: 489 5.8lbs / 4810 9.7lbs /  4820 14lbs
Cell Assembly: 18650-3.6v-10S 4P / 10P
Life Cycles: 800-1000 Cycles
Max. Continuous Discharge: 20A  / 30A
BMS Protection Current: 30A  / 40A
Discharge Cut-Off Voltage: 30v
Max. Charge Voltage: 42v
Inner Resistance: 190mΩ / 180mΩ
Charge Time: Depending on Battery <= 3 -5 hours
Operation Temperature Range: Charge: 0°C – 45°C / Discharge: -20°C – 60°C
Storage Temperature: 0°C – 40°C (Extended Storage: 15°C – 25°C;)
Battery Case Material: Blue PVC Heatshrink / Aluminum / Blue PVC Heatshrink
Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies, Inc.

**System includes battery carrying rear rack.

UN 38.3 Certified e-bike battery
Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS

Includes

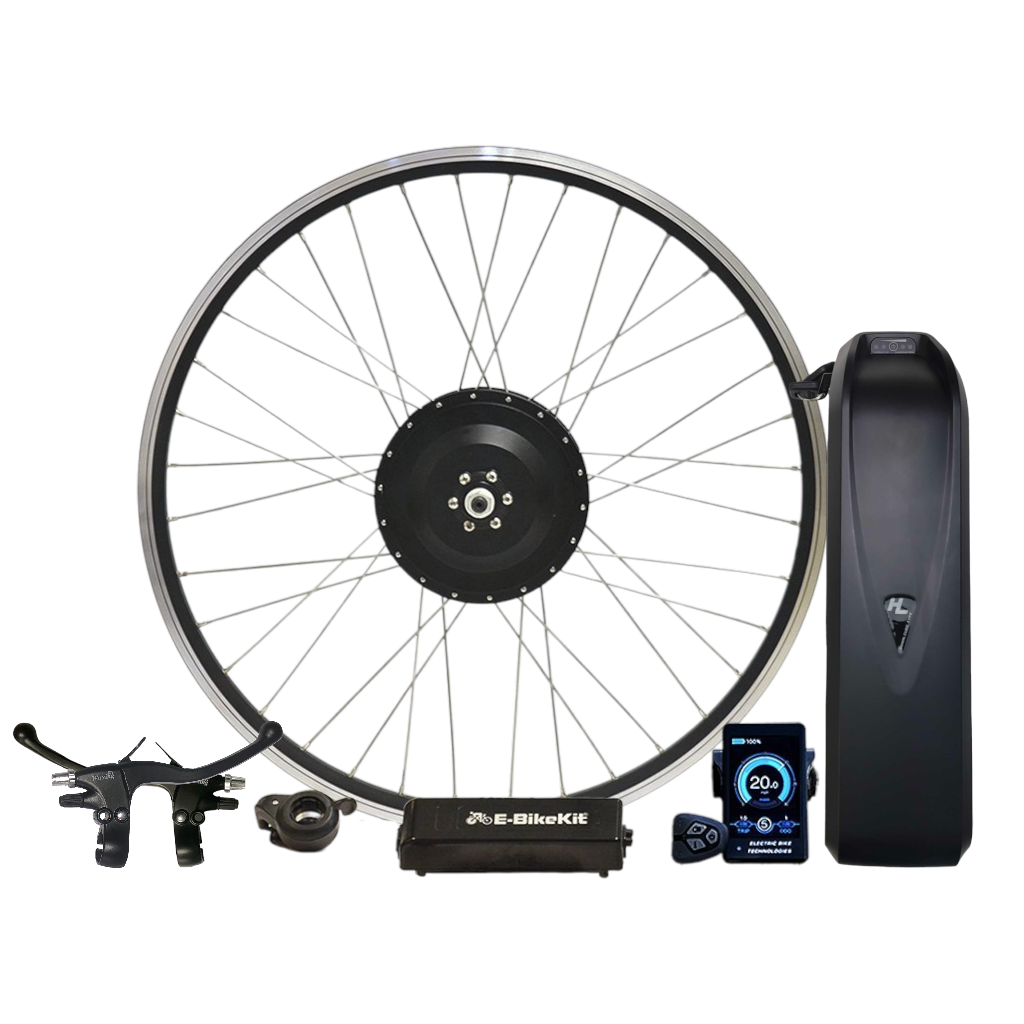

Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.

1 x USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
1 x 36/48V Compatible 22Amp 12FET Controller
1 x Programmable LCD Dashboard
1 x PAS 12-Magnet Split Disc
1 x PAS Sensor Left Side Mount (right side mount by request)
2 x 1 Thumb & 1 Split-Twist Throttles
2 x Left & Right E-Brake Levers
1 x Motor Cable
1 x Accessory Cable
1 x Battery Wire Harness (kits w/o batteries only)
1 x Freewheel (rears only)
1 x Battery
1 x Battery Charger
1 x Owner's Manual w/ Installation Guide
**Zip Ties, C-Washers & Torque Arms in Every Kit!

Extras For EZ-Tri Classic:
1 x Pedal-Assist Extension Cable
1 x Locking Parking Brake Levers
2 x Torque Arms (you must install both and fully torque axle nuts to 35 ft-lb to help with wheel retention)



Convert your Sunseeker EZ-Tri Classic to Electric!

E-BikeKit Front 500w Geared Hub Motor Conversion Kit with 48 Volt Li-ion Battery Pack and Charger The E-BikeKit 500-1000w geared conversion kit is powered by an internal 5:1 planetary gear hub motor with a clutch. The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with "start/stop" riding), has more starting torque, and has greater hill-climbing ability than a direct-drive motor of equal power rating. The motor is also smaller in diameter for increased stealth and 3.4lbs lighter than the 500w direct-drive.

Who's it for? This premium electric bike conversion kit system is for those that want the best of the best in performance, efficiency, weight, and stealth. There is a 300lb total load limit so if you plan on more than that, look to a heavy-duty system.

System Specs:
Watts: (Nominal/Peak) 500-750w (EBK 22Amp Controller)
Top Speed: Approx. 20 MPH @48vin 26" Wheel
Range: 10-44 Miles* (see battery chart)
Charge Time: 3-5hrs (0-100%) (depending on battery choice)
Weight: 489 5.8lbs / 4810 9.7lbs / 4820 14lbs
Performance: High
Efficiency: High
Stealth Factor: High

Li-ion batteries provide a high level of performance for the duration of each discharge (unlike seal lead-acid where performance is diminished 1:1 as the pack is emptied). Li-ion batteries have a much higher power to weight ratio than lead-acid and 5-8 times the number of charge cycles (how many times a rechargeable battery can be charged from 0-100%). The li-ion option costs more initially, but over time, the "cost-per-cycle" is about half the cost of lead-acid. Li-ion packs also require less care as they can be left partially charged, and do not require immediate charging after each use. All batteries MUST be properly cared for during storage.



Battery Choice:
We offer 3 battery packs for this kit - the 9Ah li-ion shrink-wrapped battery is the lightest and smallest, at just 5.8lbs. The 20Ah li-ion shrink-wrapped battery is the longest-lasting, with a 20-44 mile range.

Model Weight Range Mount Style Cost
48v 9Ah Shrink Wrapped 5.8lbs 9-21 Battery bag w/ velcro straps & mounting plate to mount to the rear frame +$470
48v 10Ah Aluminum Case 9.7lbs. 10-24
Mounting plate to mount to the rear frame +$665
48v 20Ah Shrink Wrapped 14lbs 20-44 Battery bag w/ velcro straps & mounting plate to mount to the rear frame +$850


Choosing Your Wheel Size:
 You can find your wheel size written on your tire. Available size options for this conversion kit are: 16", 20", 24", 26", 700c and 29er. Acceptable tire widths for the E-BikeKit rims: 1.15" (29mm) - 2.25" (57mm).

Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility

Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.

Helpful Resources: Installation Videos | Owner's Manuals

Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday 9 am-5 pm EST. Outside of business hours get help fast via email.

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and are require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.

Brand: Electric Bike Technologies, Inc.
Type: Internally Geared (brushless, disc brake compatible)
Power: 500w Nominal / >1000 @48v
Max Torque: 84N-m @48v
Max RPM: 320 @48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32" (10.4mm)
Weight: 9.4lbs (4.26kg)
Warranty: 1 Year (up to 48v - 300lb max load)

Nominal Voltage: 36v/48v
Nominal Capacity: 9Ah / 10ah / 20Ah (0.2C)
Battery Energy: 378Wh / 840Wh approx.
Dimensions: See table
Total Weight: 489 5.8lbs / 4810 9.7lbs /  4820 14lbs
Cell Assembly: 18650-3.6v-10S 4P / 10P
Life Cycles: 800-1000 Cycles
Max. Continuous Discharge: 20A  / 30A
BMS Protection Current: 30A  / 40A
Discharge Cut-Off Voltage: 30v
Max. Charge Voltage: 42v
Inner Resistance: 190mΩ / 180mΩ
Charge Time: Depending on Battery <= 3 -5 hours
Operation Temperature Range: Charge: 0°C – 45°C / Discharge: -20°C – 60°C
Storage Temperature: 0°C – 40°C (Extended Storage: 15°C – 25°C;)
Battery Case Material: Blue PVC Heatshrink / Aluminum / Blue PVC Heatshrink
Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies, Inc.

**System includes battery carrying rear rack.

UN 38.3 Certified e-bike battery
Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS

Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.

1 x USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
1 x 36/48V Compatible 22Amp 12FET Controller
1 x Programmable LCD Dashboard
1 x PAS 12-Magnet Split Disc
1 x PAS Sensor Left Side Mount (right side mount by request)
2 x 1 Thumb & 1 Split-Twist Throttles
2 x Left & Right E-Brake Levers
1 x Motor Cable
1 x Accessory Cable
1 x Battery Wire Harness (kits w/o batteries only)
1 x Freewheel (rears only)
1 x Battery
1 x Battery Charger
1 x Owner's Manual w/ Installation Guide
**Zip Ties, C-Washers & Torque Arms in Every Kit!

Extras For EZ-Tri Classic:
1 x Pedal-Assist Extension Cable
1 x Locking Parking Brake Levers
2 x Torque Arms (you must install both and fully torque axle nuts to 35 ft-lb to help with wheel retention)
