Eco-Tad Conversion System
Eco-Tad Conversion System
Shipping Update – Controller Backorder: Due to a temporary controller backorder, conversion kits will be held until controllers are available. If you would like your kit to ship ahead of time (without the controller) so you can begin preparation and installation work, please contact us at 866-882-3245. The controller is expected to ship separately once inventory arrives between January 23rd and January 29th.
Couldn't load pickup availability
Overview
- Designed specifically for the Sun Eco-Tad SX
- Top speed up to 26 mph with a typical 15–30 mile range
- Pedal-assist and throttle-on-demand
- Rear 500W geared hub motor with internal clutch
- Optional battery mounting kit: allows the battery to be mounted securely on the trike for a clean, balanced installation (select this option above)
A purpose-built electric conversion system engineered specifically for the Sun Eco-Tad SX tadpole trike, combining efficiency, comfort, and confident handling.
Description

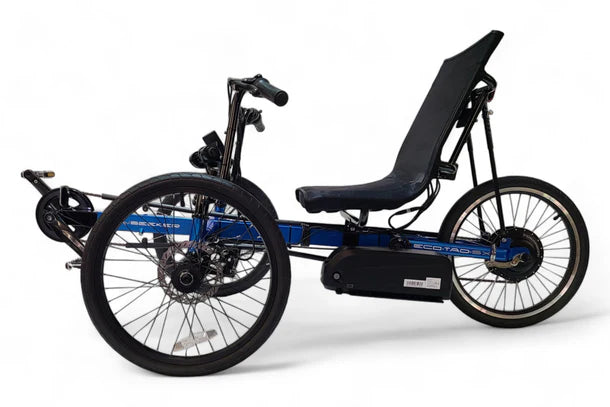

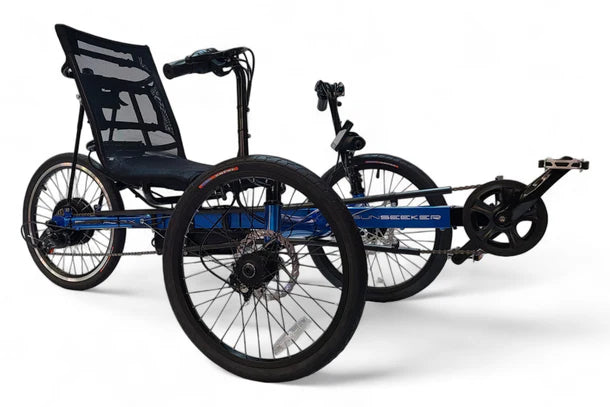

Convert Your Sun Eco-Tad SX to Electric
The E-BikeKit™ Eco-Tad SX Conversion Kit is designed to integrate cleanly with the Eco-Tad’s tadpole layout and direct-steering geometry, preserving the trike’s stable handling while adding smooth electric assist.
Power comes from a rear 500W internally geared hub motor featuring a 5:1 planetary gear reduction and internal clutch. This design delivers strong low-speed torque, excellent hill-climbing ability, and zero drag when pedaling without power.
Compared to a direct-drive motor, the geared motor is lighter, more efficient, and better suited to stop-and-go riding, helping extend range while maintaining a compact, discreet appearance.
Who is this kit for? This system is ideal for riders who want high efficiency, lighter weight, and smooth performance on a tadpole-style recumbent trike. The total system load limit is 300 lbs. Riders exceeding this should consider a heavy-duty system instead.

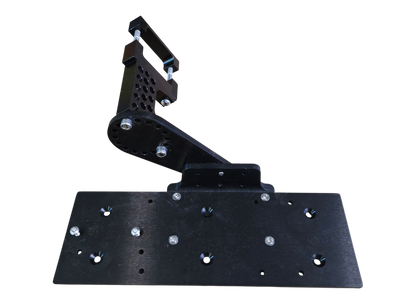

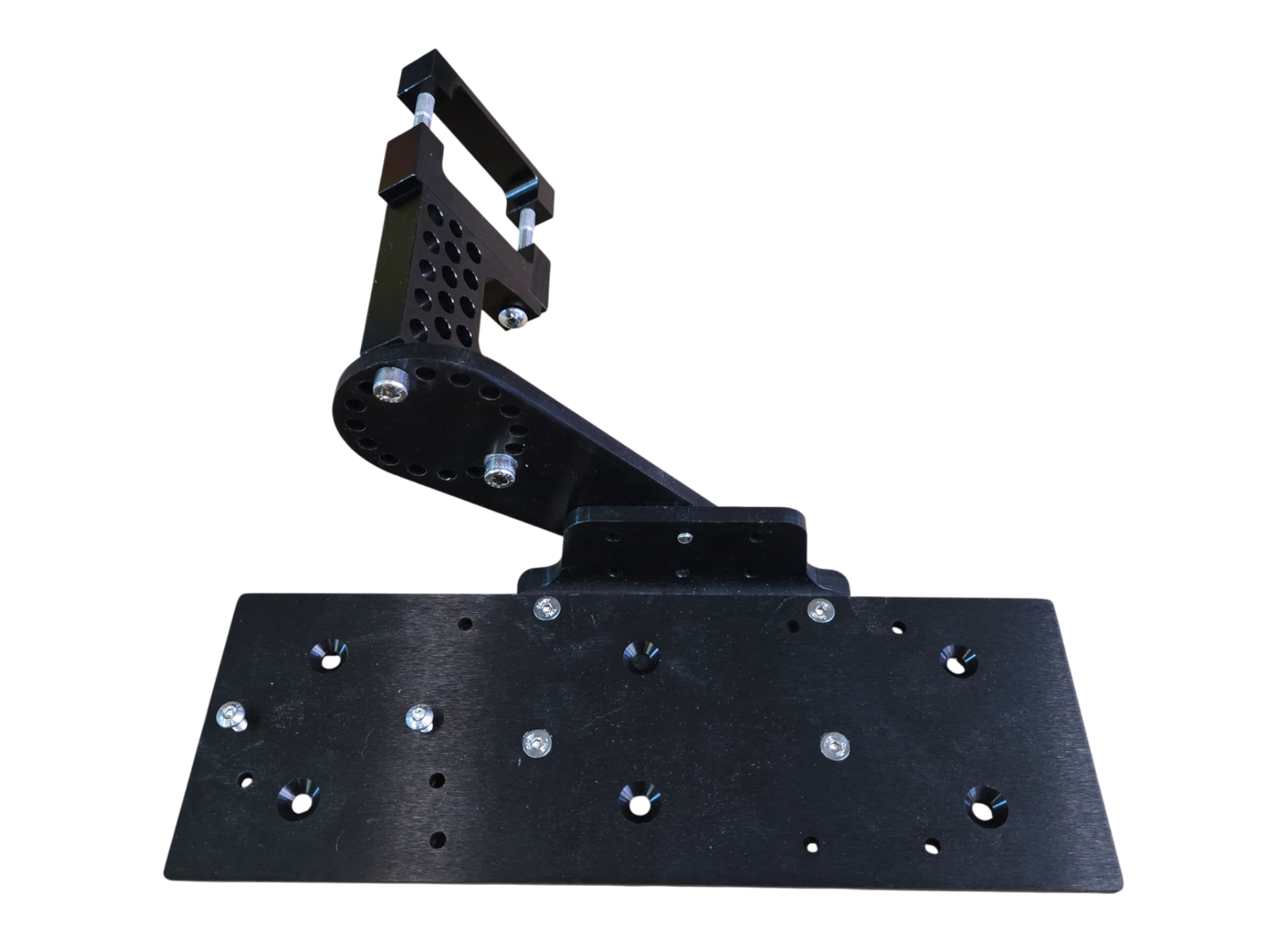

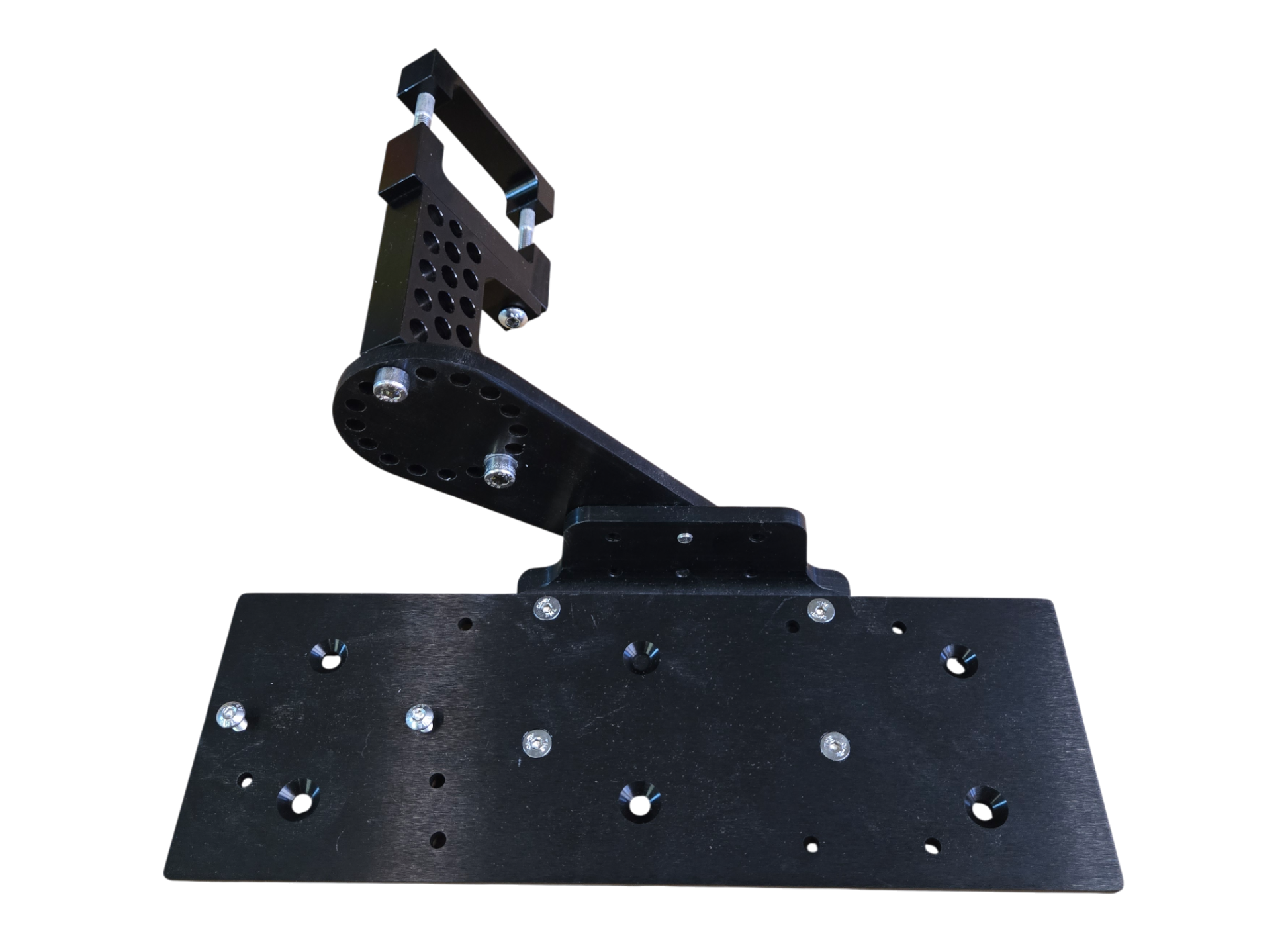

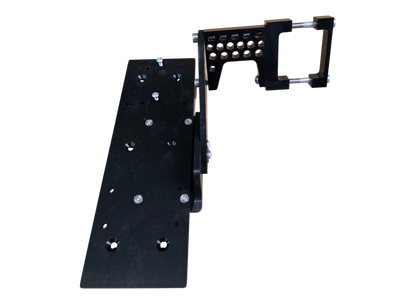

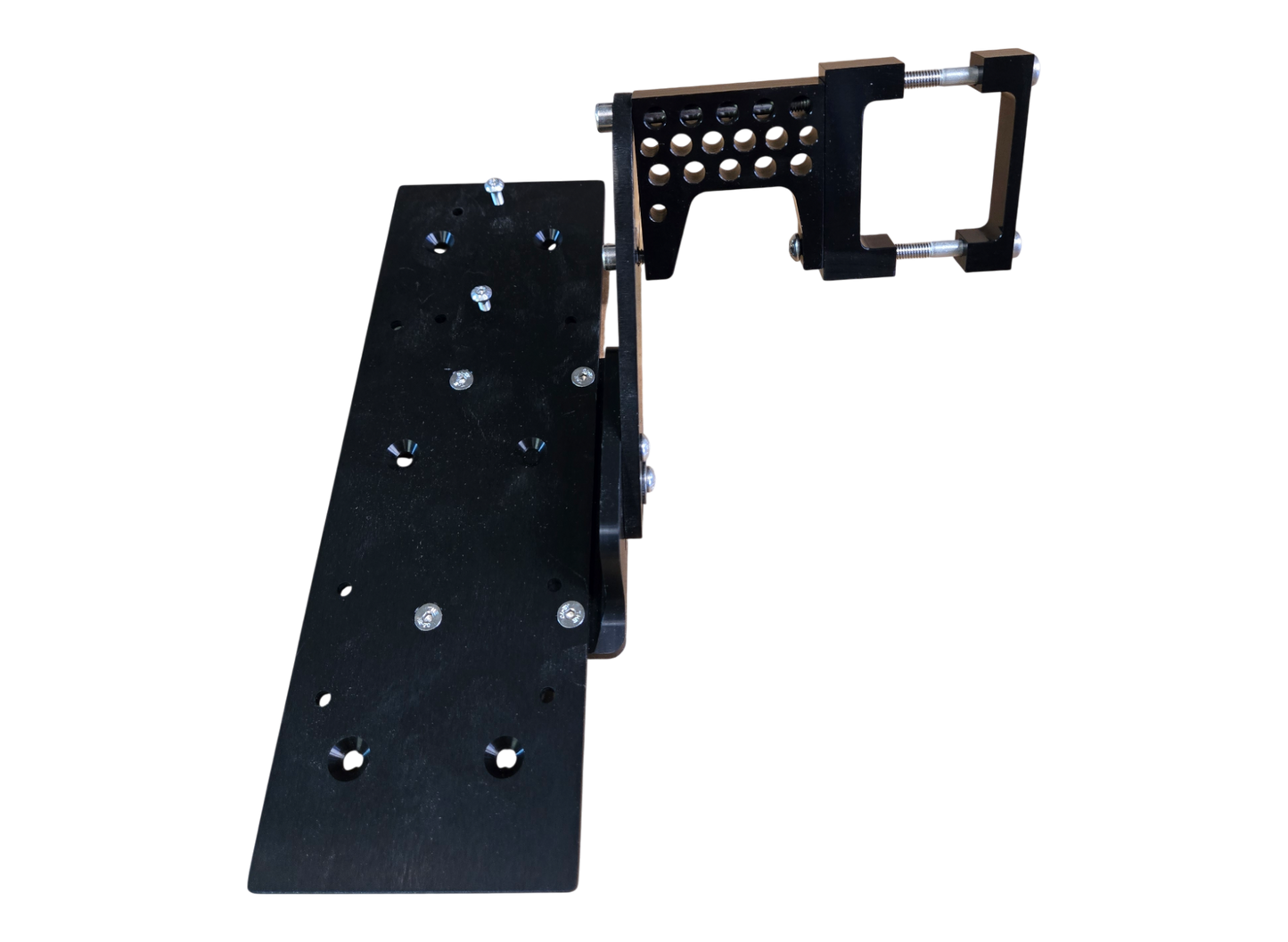

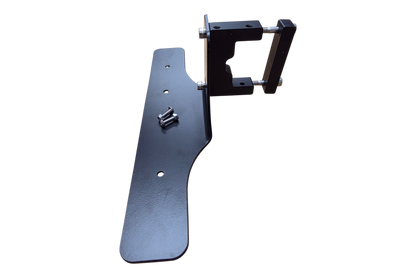

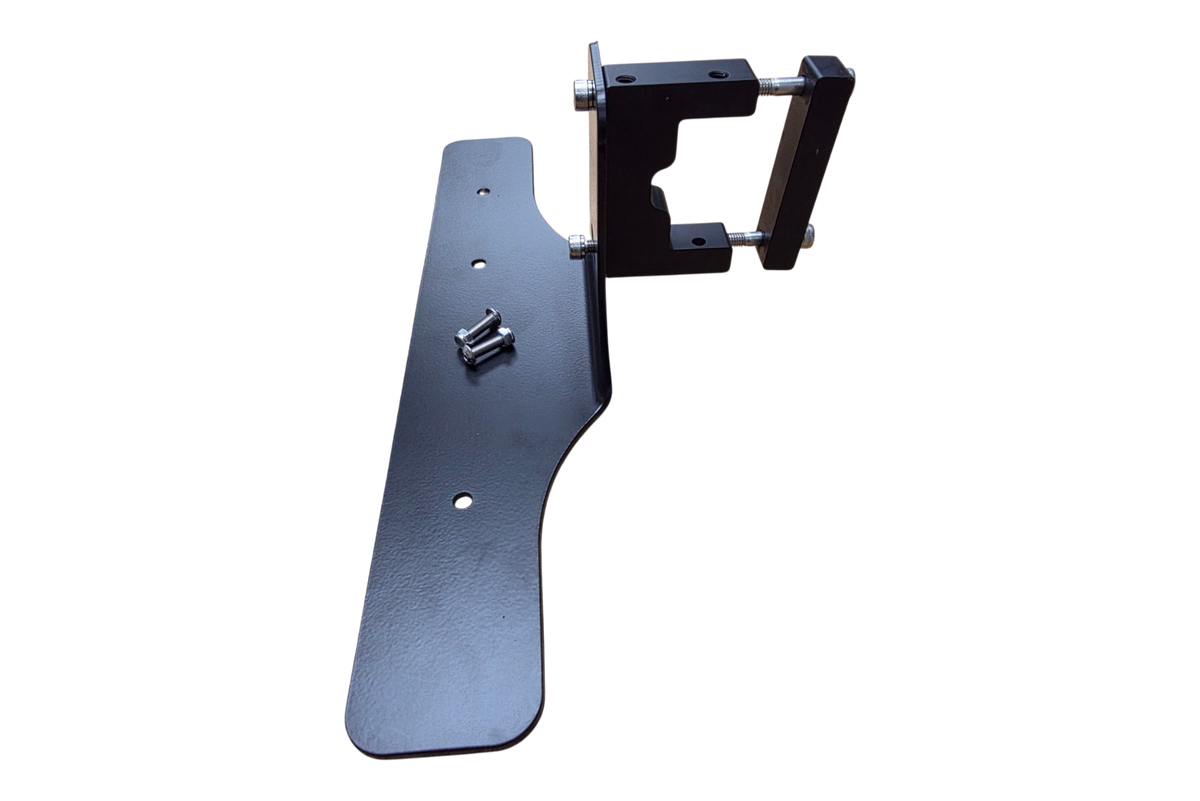

Optional battery mounting kit: When selected, this kit includes the battery mounting plate and all required hardware to securely mount the battery in the position shown in the product photos. This provides proper weight distribution and a clean, finished installation.
Performance & Specifications
- Motor type: Rear internally geared hub motor (with clutch)
- Nominal / peak power: 500W / up to 1000W
- Top speed: Up to 26 mph
- Estimated range: 15–30 miles (terrain, rider input, and battery dependent)
- System voltage: 48V
- Maximum torque: 84 Nm @ 48V
- Total load limit: 300 lbs
Battery Specifications
- Nominal voltage: 48V
- Nominal capacity: 15Ah
- Battery energy: ~720Wh
- Estimated charge time: ~5 hours (3A charger)
- Cell configuration: 18650 cells, 13S4P
- Cycle life: 500–800 cycles
- Max continuous discharge: 16A
- BMS protection current: 20A
- Battery weight: ~10 lbs (4.6 kg)
- Warranty: 1 year

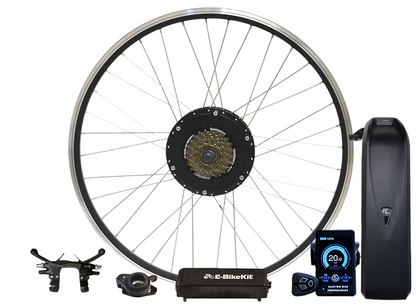

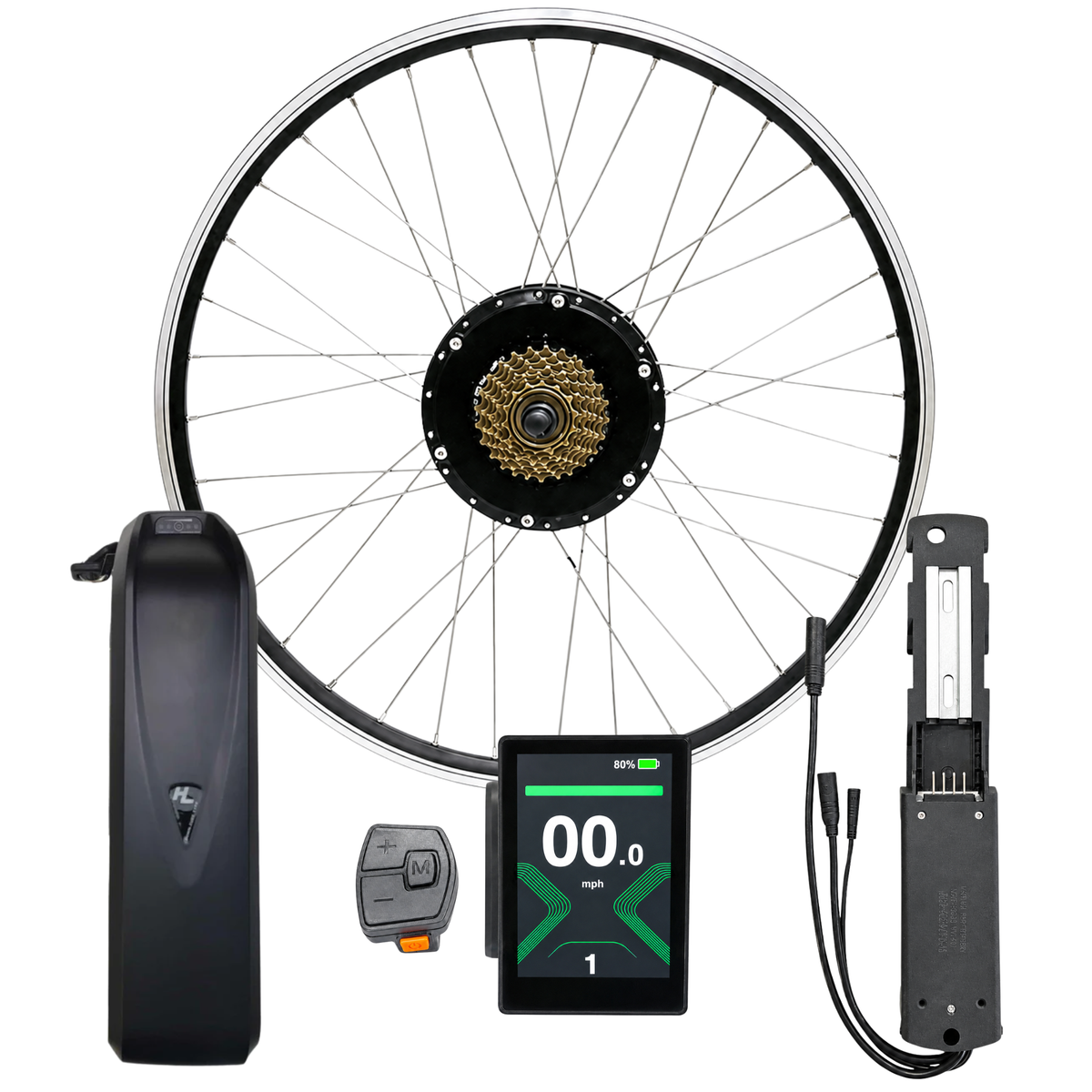

What’s Included
- USA hand-built rear wheel with geared hub motor
- 48V-compatible 22A / 12-FET controller
- Programmable LCD dashboard
- Mini III PAS left-side sensor
- Thumb throttle
- Locking parking e-brake levers
- Motor cable
- 4-to-1 accessory cable
- Torque arms, C-washers, zip ties, and mounting hardware
- Battery and charger (if battery option is selected)
- Battery mounting kit (when selected): includes the battery mounting plate and all required hardware to securely mount the battery as shown in the product photos
FAQ & Support
Learn more: Top 25 Frequently Asked Questions
Questions? Call us toll-free at 1-866-882-3245, Monday–Friday, 9am–5pm EST, or email support@ebikekit.com.
Shipping Notes
Battery shipping: Lithium-ion batteries ship separately via FedEx Hazmat and may require a delivery signature. It is normal for the kit, battery, and mounting hardware (if applicable) to arrive on different days.
