EZ-3 HD Conversion System

  • $712.00 - $1,684.00

Product Code: HD-DDF20-489

EZ-3 HD Conversion System

E-Bike Kit Dealers

Search for an authorized E-BikeKitTM Dealer near YOU!

No Dealer in Your Area ?

Click here to search for local bike shops in your area Once you find a bike shop , we would encourage you to forward them this New Dealer Application Link
Onboarding is easy and fast. Your local dealer can offer you any of our products and help with conversion if required.
Still need help finding a dealer? Email: support@ebikekit.com

Description

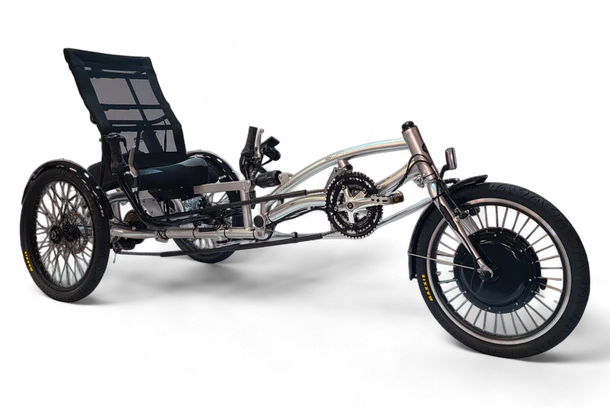

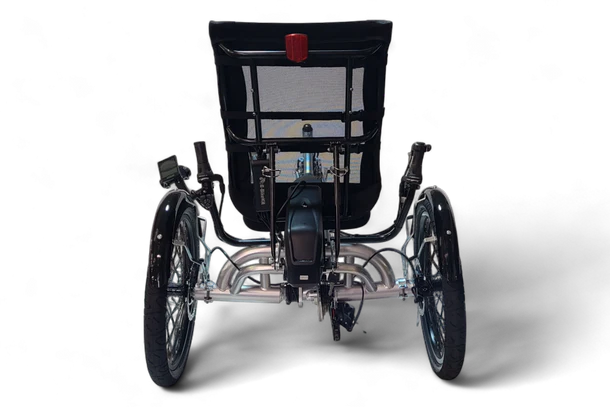

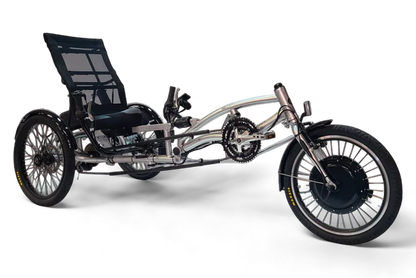

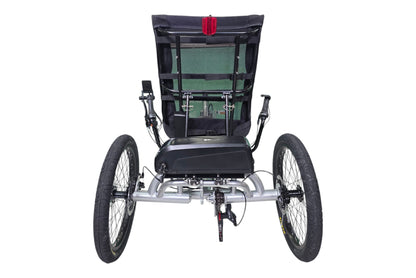

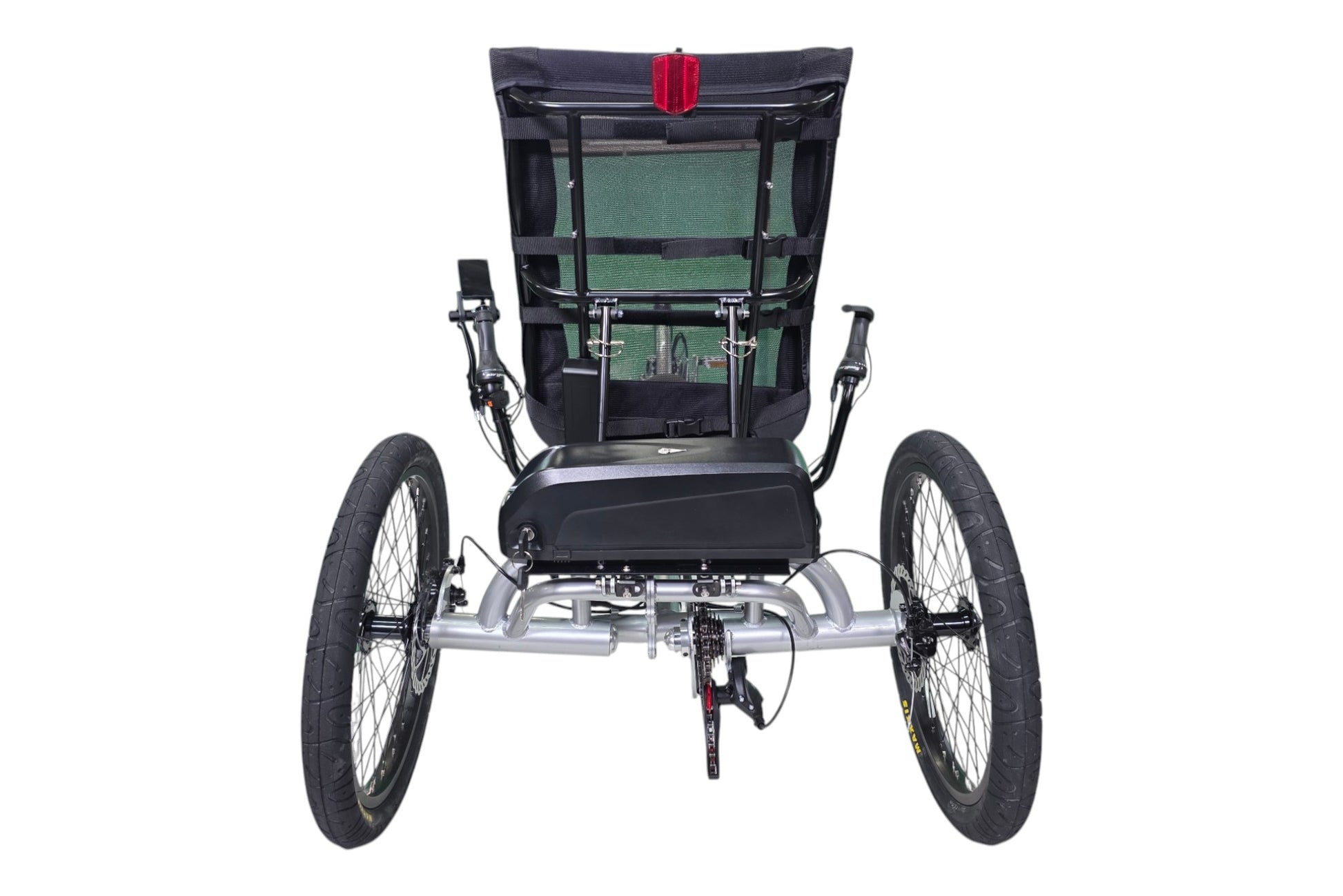

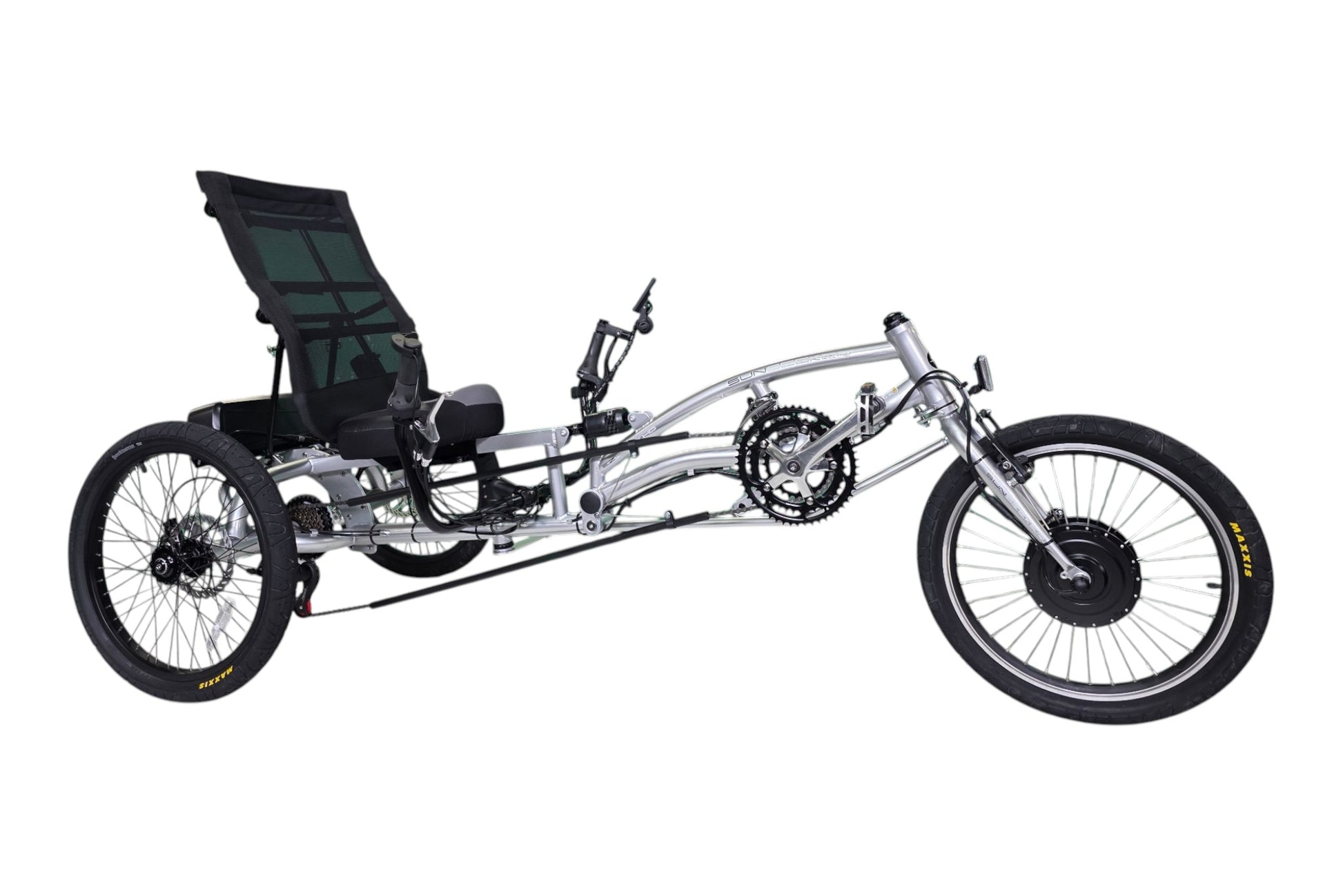

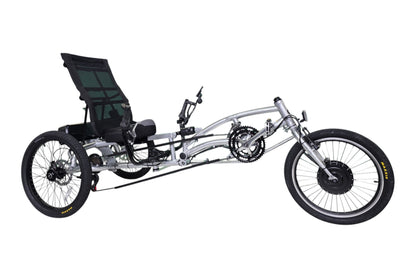

Convert your SunSeeker EZ-3 HD to electric as seen on ElectricTrike.com.

Extras Included:

  • Locking Parking Brake Lever
  • Topeak BarXtender

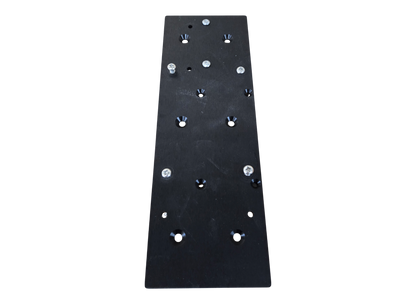

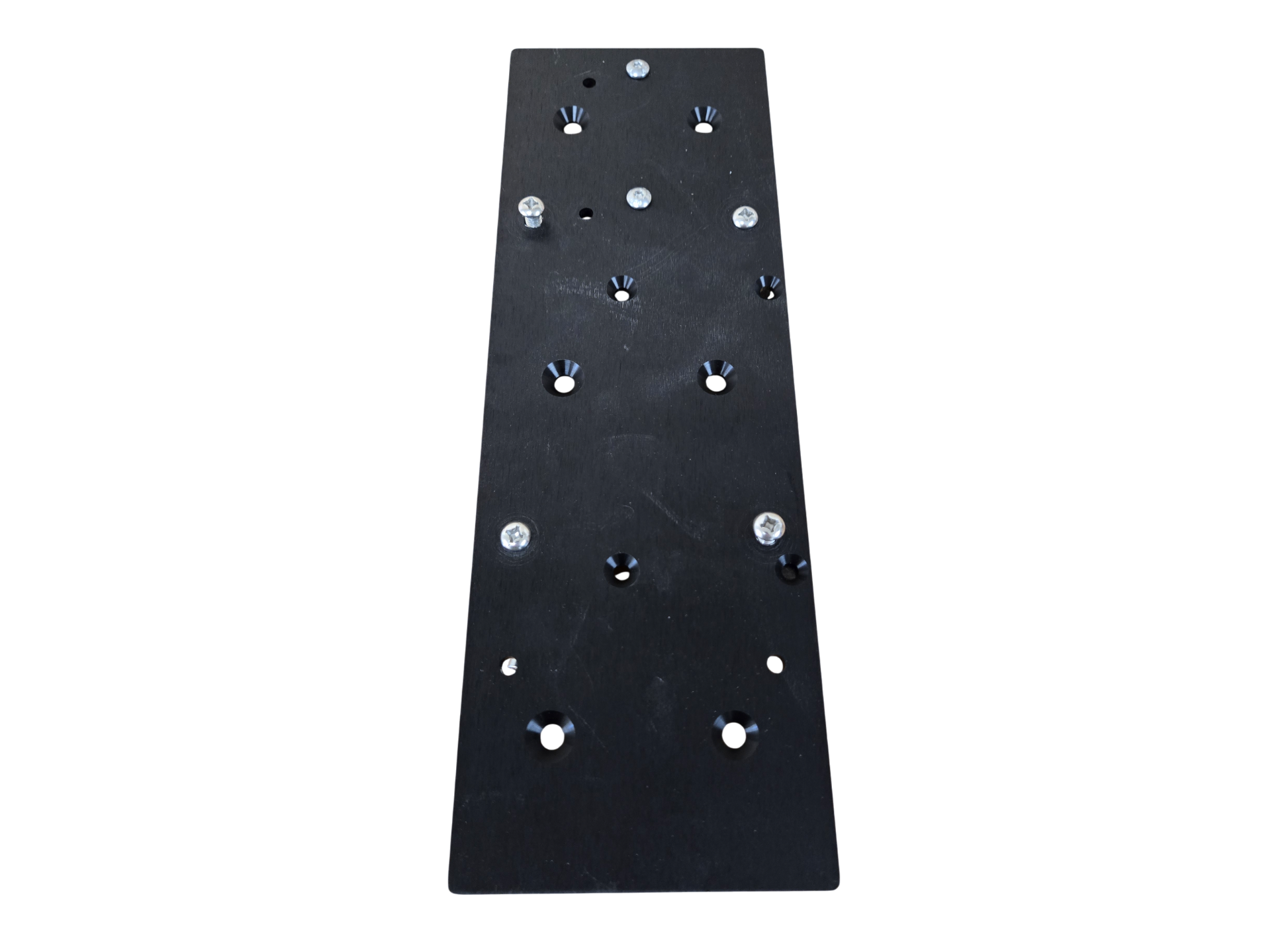

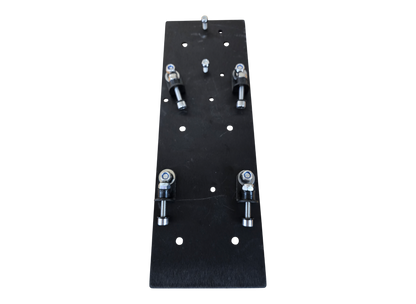

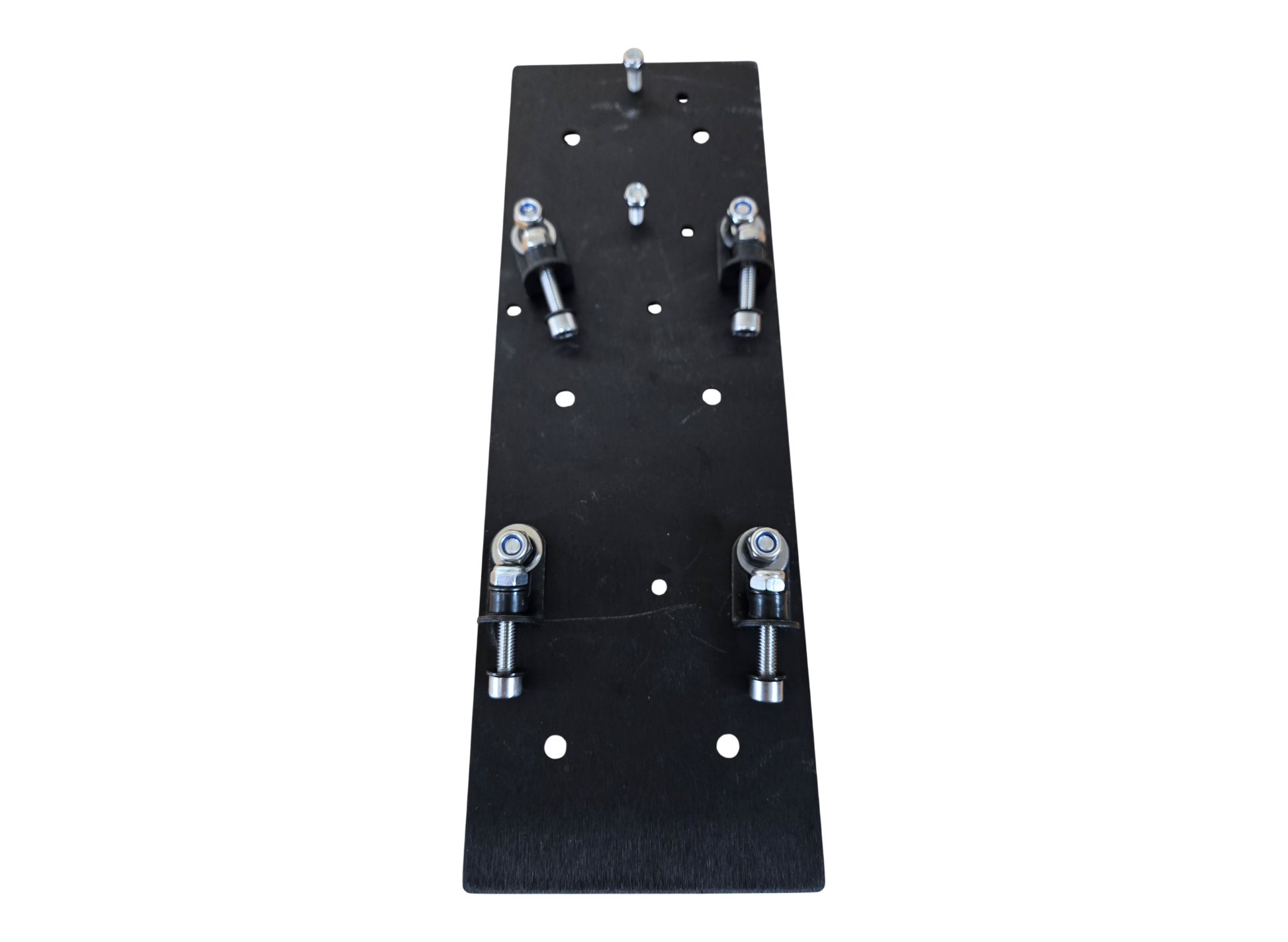

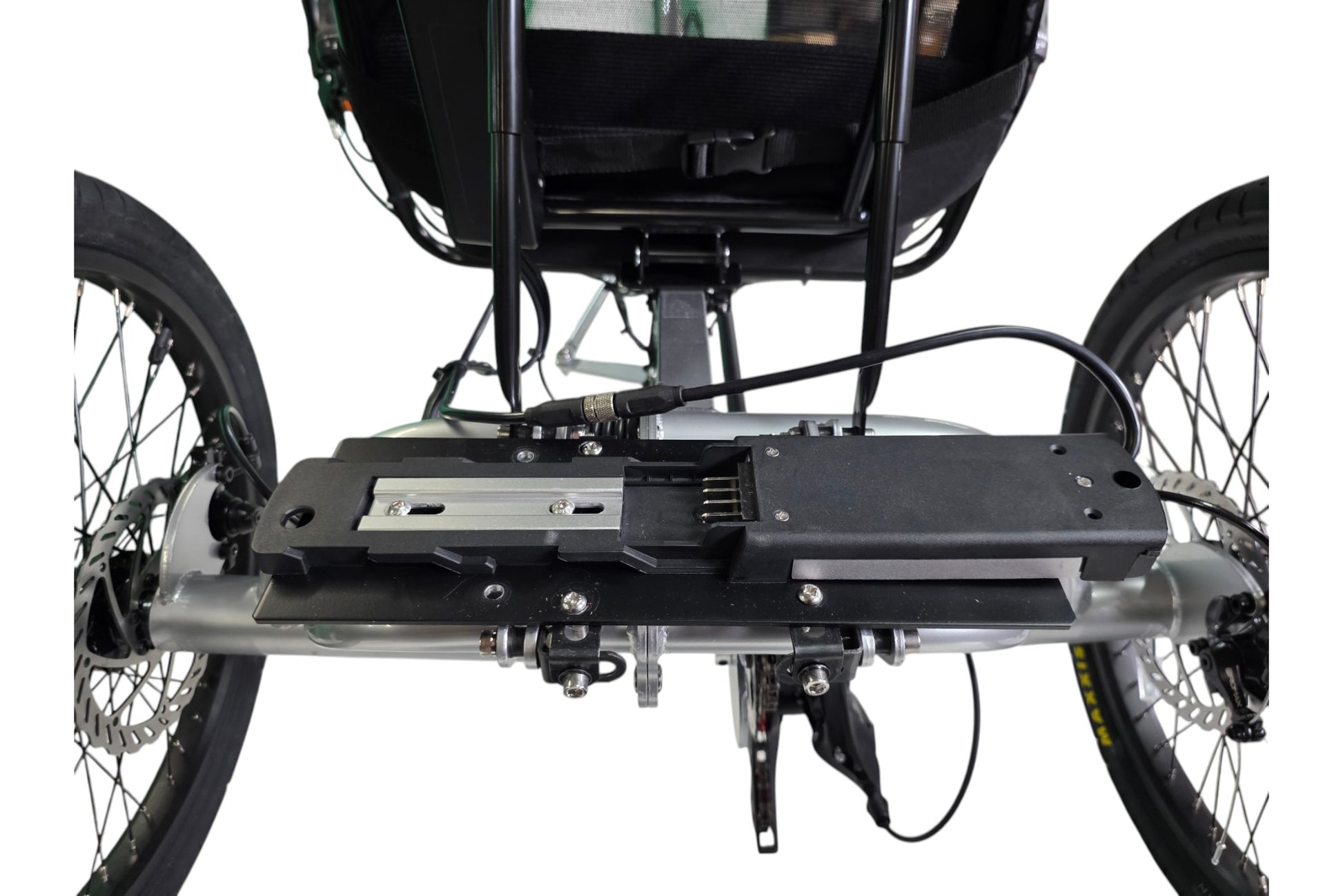

  • Battery Mounting Plate and p-clamps to install plate to frame behind seat



E-BikeKit Front 500w Direct-Drive Hub Motor Conversion Kit
with 48 Volt Li-ion Battery Pack and Charger.

This premium electric bike conversion kit system is for riders that require the increased durability of a direct-drive motor for heavier loads and the long term reliability of a lithium battery. The direct-drive hub motor used in this conversion kit system is for heavier applications and a MUST for any total load (bike + rider + cargo) of 300 lbs or more. This system pairs the heavy-duty motor with a 48v battery pack for increased torque and an 18 mph top speed.

Direct-drive motors are strong, durable, and long-lasting due to zero internal friction. Some lower quality or larger direct-drive motors have resistance, but that should not be a concern with this E-BikeKit direct-drive hub motor.

System Specs:
Watts (Nominal/Peak): 500-1000w (EBK 22Amp Controller)
Top Speed: Approx. 18 Mph @ 48v in 20in Wheel
Range: 9-42 Miles
Charge Time: 3 - 7 Hours (From 0-100% and depending on the battery)
Weight: 24 lbs (10.88 kgs)
Performance: High
Efficiency: Medium
Stealth Factor: Low

Li-ion batteries provide a high level of performance for the duration of each discharge (unlike seal lead-acid where performance is diminished 1:1 as the pack is emptied). Li-ion batteries have a much higher power to weight ratio than lead-acid and 5-8 times the number of charge cycles (how many times a rechargeable battery can be charged from 0-100%). The li-ion option costs more initially, but over time, the "cost-per-cycle" is about half the cost of lead-acid. Li-ion packs also require less care as they can be left partially charged, and do not require immediate charging after each use. All batteries MUST be properly cared for during storage.


Battery Choice: We offer 3 battery packs for this kit - the 9Ah li-ion shrink-wrapped battery is the lightest and smallest, at just 5.8 lbs. The 20Ah li-ion shrink-wrapped battery is the longest-lasting, with a 19-42 mile range. The 10Ah li-ion aluminum case battery sports a rugged enclosure, carrying handle, and locks in place with a key.

48v 9Ah Bag Battery  DISCONTINUED

  • Range: 9-18 Miles
  • Price: $1,254.00

This e-bike battery is a lightweight and easy to carry pack. Two of these packs will fit into one canvas battery bag (included) nicely, offering the option of taking one or two of these depending on your range needs. You do have to connect them one at a time as needed; same for charging.

** It is common to carry two 48v 9Ah batteries in the same canvas bag in order to double your range. However, these batteries can not be used in parallel with one another. In other words, you would have to physically unplug one, in order to use the other. **

48v 10Ah w/ 2-Tier Rack

  • Range: 10-20 Miles
  • Price: $1,478.00

This li-ion e-bike battery offers a nice finished look plus a locking mechanism for securing the battery in the middle section of an included 2-tiered rack. The top of the rack remains clear and available.

48v 20Ah Bag Battery

  • Range: 20-40 Miles
  • Price: $1,690.00

This e-bike battery is the largest capacity, longest range e-bike battery we offer. This pack weighs 14 lbs and comes in our canvas battery bag with velcro straps for securing it to the top of a conventional rear rack (not included).

Choosing Your Wheel Size: You can find your wheel size written on your tire. Available size options for this conversion kit are: 16in, 20in, 24in, 26in, 700c, and 29er. Acceptable tire widths for the E-BikeKit rims: 1.15in (29mm) - 2.25in (57mm).

Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility

Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.

Helpful Resources: Helpful VideosOwner's Manuals

Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday through Friday from 9 am to 5 pm EST. Outside of business hours get help fast via email.

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and are require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.

Motor Specs


Brand: Electric Bike Technologies, Inc.
Type: Direct-Drive (brushless, and disc brake compatible)
Power: 500w Nominal / > 1000 @ 48v
Max Torque: 46N-m @ 48v
Max RPM: 259 @ 48v
Cable: 8in Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 19/32in (10.4mm)
Weight: 12.8 lbs (5.85 kg)
Warranty: 1 Year

Battery Specs


Nominal Voltage: 48v
Nominal Capacity: 9Ah / 10Ah / 20Ah (0.2C)
Battery Energy: 421Wh / 468Wh / 936Wh approx.
Total Weight: Depending on Battery: 48v 9Ah = 5.8 lbs (2.6 kg) / 48v 10Ah = 9.7 lbs (4.4 kg) / 48v 20Ah = 14 lbs (6.35 kg)
Cell Assembly: 18650-3.6v-13S  4P / 5P / 10P
Life Cycles: 800-1000 Cycles
Max Continuous Discharge: 20A / 22.5A / 50A
BMS Protection Current: 30A / 30A / 60A
Discharge Cut-Off Voltage: 39v
Max Charge Voltage: 54.6v
Inner Resistance: 180mΩ / 180mΩ / 220mΩ
Charge Time: Depending on Battery: 48v 9Ah < = 4.5 Hours / 48v 10Ah < = 3.3 Hours / 48v 20Ah < = 7 Hours
Operation Temperature Range: Charge: 0°C – 45°C / Discharge: -20°C – 60°C
Storage Temperature: 0°C – 40°C (Extended Storage: 15°C – 25°C;)
Battery Case Material: Blue PVC Heatshrink / Aluminum / Blue PVC Heatshrink
Assembled Pack Certificates: UN38.3; MSDS; RoHS; SGS
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies, Inc.

**System includes battery carrying rear rack.

UN 38.3 Certified e-bike battery
Assembled Pack Certificates: UN38.3; MSDS; RoHS; SGS

Includes


Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.

• USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
• 48v Compatible 22Amp 12FET Controller
• Programmable LCD Dashboard
• Mini III PAS Left Side Sensor
• Thumb Throttle
• Right E-Brake Lever w/ Parking Lock (installed on the left side)
• Motor Cable
• 3-to-1 Accessory Cable
• Battery Wire Harness (Only included if no battery is ordered with kit)
• Battery and Charger (Only if a battery is ordered)
• Thank You Postcard
• Owner's Manual (An online PDF)
• Zip Ties, C-Washers, Allen Keys and Torque Arms in Every Kit!

Extras For EZ-3 HD Kit:
• Topeak BarXtender

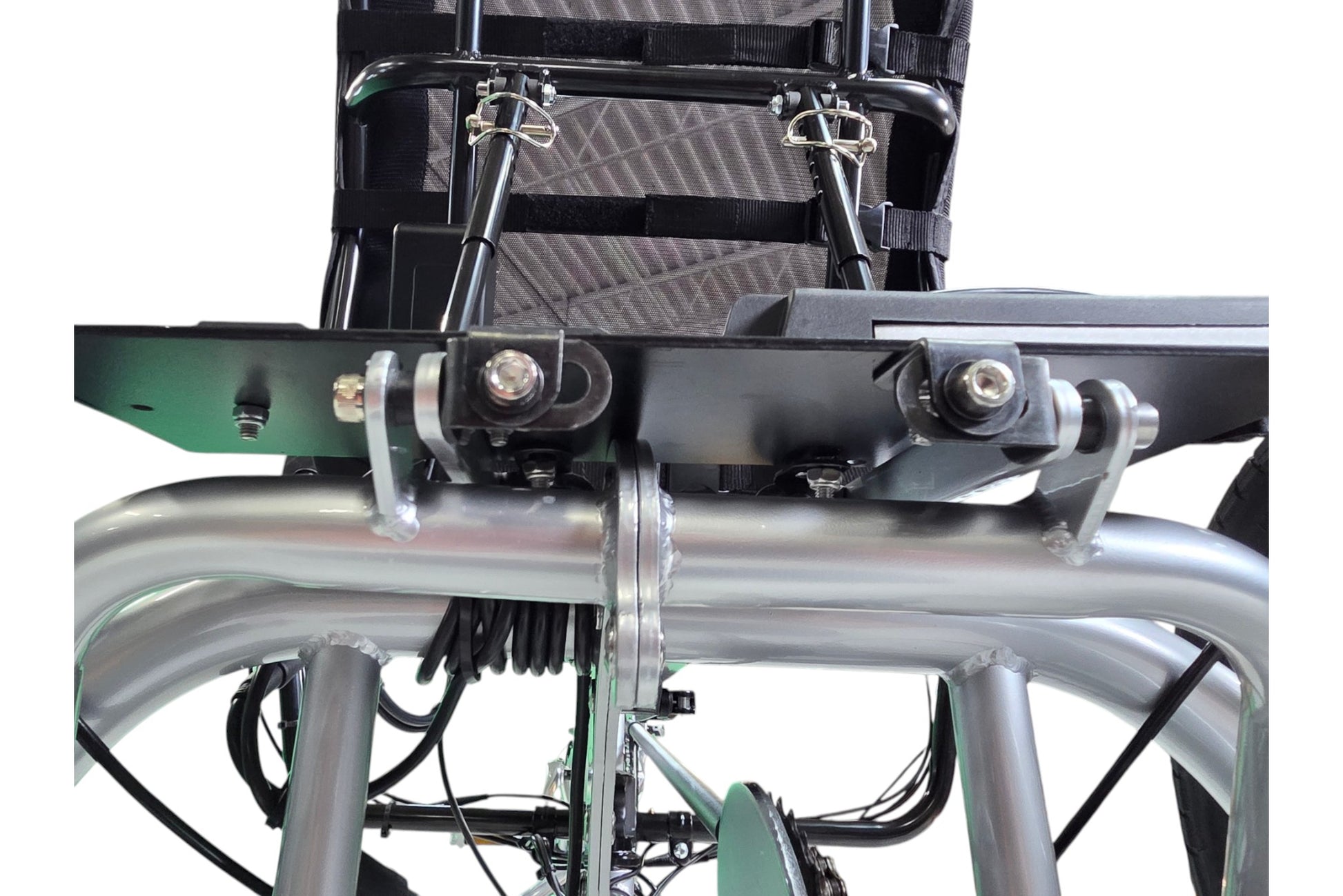

• Battery Mounting Plate and p-clamps to install plate to frame behind the seat



E-BikeKit's included parts for the EZ-3 HD conversion kit


Convert your SunSeeker EZ-3 HD to electric as seen on ElectricTrike.com.

Extras Included:

  • Locking Parking Brake Lever
  • Topeak BarXtender
  • Battery Mounting Plate and p-clamps to install plate to frame behind seat



E-BikeKit Front 500w Direct-Drive Hub Motor Conversion Kit
with 48 Volt Li-ion Battery Pack and Charger.

This premium electric bike conversion kit system is for riders that require the increased durability of a direct-drive motor for heavier loads and the long term reliability of a lithium battery. The direct-drive hub motor used in this conversion kit system is for heavier applications and a MUST for any total load (bike + rider + cargo) of 300 lbs or more. This system pairs the heavy-duty motor with a 48v battery pack for increased torque and an 18 mph top speed.

Direct-drive motors are strong, durable, and long-lasting due to zero internal friction. Some lower quality or larger direct-drive motors have resistance, but that should not be a concern with this E-BikeKit direct-drive hub motor.

System Specs:
Watts (Nominal/Peak): 500-1000w (EBK 22Amp Controller)
Top Speed: Approx. 18 Mph @ 48v in 20in Wheel
Range: 9-42 Miles
Charge Time: 3 - 7 Hours (From 0-100% and depending on the battery)
Weight: 24 lbs (10.88 kgs)
Performance: High
Efficiency: Medium
Stealth Factor: Low

Li-ion batteries provide a high level of performance for the duration of each discharge (unlike seal lead-acid where performance is diminished 1:1 as the pack is emptied). Li-ion batteries have a much higher power to weight ratio than lead-acid and 5-8 times the number of charge cycles (how many times a rechargeable battery can be charged from 0-100%). The li-ion option costs more initially, but over time, the "cost-per-cycle" is about half the cost of lead-acid. Li-ion packs also require less care as they can be left partially charged, and do not require immediate charging after each use. All batteries MUST be properly cared for during storage.


Battery Choice: We offer 3 battery packs for this kit - the 9Ah li-ion shrink-wrapped battery is the lightest and smallest, at just 5.8 lbs. The 20Ah li-ion shrink-wrapped battery is the longest-lasting, with a 19-42 mile range. The 10Ah li-ion aluminum case battery sports a rugged enclosure, carrying handle, and locks in place with a key.

48v 9Ah Bag Battery  DISCONTINUED

  • Range: 9-18 Miles
  • Price: $1,254.00

This e-bike battery is a lightweight and easy to carry pack. Two of these packs will fit into one canvas battery bag (included) nicely, offering the option of taking one or two of these depending on your range needs. You do have to connect them one at a time as needed; same for charging.

** It is common to carry two 48v 9Ah batteries in the same canvas bag in order to double your range. However, these batteries can not be used in parallel with one another. In other words, you would have to physically unplug one, in order to use the other. **

48v 10Ah w/ 2-Tier Rack

  • Range: 10-20 Miles
  • Price: $1,478.00

This li-ion e-bike battery offers a nice finished look plus a locking mechanism for securing the battery in the middle section of an included 2-tiered rack. The top of the rack remains clear and available.

48v 20Ah Bag Battery

  • Range: 20-40 Miles
  • Price: $1,690.00

This e-bike battery is the largest capacity, longest range e-bike battery we offer. This pack weighs 14 lbs and comes in our canvas battery bag with velcro straps for securing it to the top of a conventional rear rack (not included).

Choosing Your Wheel Size: You can find your wheel size written on your tire. Available size options for this conversion kit are: 16in, 20in, 24in, 26in, 700c, and 29er. Acceptable tire widths for the E-BikeKit rims: 1.15in (29mm) - 2.25in (57mm).

Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility

Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.

Helpful Resources: Helpful VideosOwner's Manuals

Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday through Friday from 9 am to 5 pm EST. Outside of business hours get help fast via email.

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and are require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.

Brand: Electric Bike Technologies, Inc.
Type: Direct-Drive (brushless, and disc brake compatible)
Power: 500w Nominal / > 1000 @ 48v
Max Torque: 46N-m @ 48v
Max RPM: 259 @ 48v
Cable: 8in Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 19/32in (10.4mm)
Weight: 12.8 lbs (5.85 kg)
Warranty: 1 Year

Nominal Voltage: 48v
Nominal Capacity: 9Ah / 10Ah / 20Ah (0.2C)
Battery Energy: 421Wh / 468Wh / 936Wh approx.
Total Weight: Depending on Battery: 48v 9Ah = 5.8 lbs (2.6 kg) / 48v 10Ah = 9.7 lbs (4.4 kg) / 48v 20Ah = 14 lbs (6.35 kg)
Cell Assembly: 18650-3.6v-13S  4P / 5P / 10P
Life Cycles: 800-1000 Cycles
Max Continuous Discharge: 20A / 22.5A / 50A
BMS Protection Current: 30A / 30A / 60A
Discharge Cut-Off Voltage: 39v
Max Charge Voltage: 54.6v
Inner Resistance: 180mΩ / 180mΩ / 220mΩ
Charge Time: Depending on Battery: 48v 9Ah < = 4.5 Hours / 48v 10Ah < = 3.3 Hours / 48v 20Ah < = 7 Hours
Operation Temperature Range: Charge: 0°C – 45°C / Discharge: -20°C – 60°C
Storage Temperature: 0°C – 40°C (Extended Storage: 15°C – 25°C;)
Battery Case Material: Blue PVC Heatshrink / Aluminum / Blue PVC Heatshrink
Assembled Pack Certificates: UN38.3; MSDS; RoHS; SGS
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies, Inc.

**System includes battery carrying rear rack.

UN 38.3 Certified e-bike battery
Assembled Pack Certificates: UN38.3; MSDS; RoHS; SGS

Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.

• USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
• 48v Compatible 22Amp 12FET Controller
• Programmable LCD Dashboard
• Mini III PAS Left Side Sensor
• Thumb Throttle
• Right E-Brake Lever w/ Parking Lock (installed on the left side)
• Motor Cable
• 3-to-1 Accessory Cable
• Battery Wire Harness (Only included if no battery is ordered with kit)
• Battery and Charger (Only if a battery is ordered)
• Thank You Postcard
• Owner's Manual (An online PDF)
• Zip Ties, C-Washers, Allen Keys and Torque Arms in Every Kit!

Extras For EZ-3 HD Kit:
• Topeak BarXtender
• Battery Mounting Plate and p-clamps to install plate to frame behind the seat



E-BikeKit's included parts for the EZ-3 HD conversion kit
