Catrike Electric Conversion System – 48V 15Ah Battery

• Designed for compatible Catrike recumbent trikes
• Complete SINET™ rear-wheel electric conversion system with 48V 15Ah battery included
• 500W nominal rear hub motor
• Wheel Size: select 20", 26", or 700C
• Freewheel: select 7-Speed, 8-Speed, 9-Speed, or 10-Speed
• Choose Cadence Sensor or Bottom Bracket Torque Sensor
• 3.5" full-color SINET™ LCD with USB charging port, diagnostics, and programming
• Topeak handlebar extender included for LCD mounting
• Catrike 2-inch round frame-tube battery mounting bracket included

A configurable rear-wheel electric conversion system for compatible Catrike recumbent trikes. Select the wheel size and freewheel that match your trike, then choose cadence or torque-sensing pedal assist.

Catrike Electric Conversion System – 48V 15Ah Battery

The current-generation E-BikeKit™ Catrike Conversion System uses the latest SINET™ platform with a 500W nominal rear hub motor, integrated sine-wave controller, full-color LCD, throttle-on-demand, locking e-brake levers, and your choice of cadence or torque-sensing pedal assist.

Because Catrike configurations vary by model and model year, this system is offered with customer-selected 20", 26", or 700C rear wheel sizes and 7-, 8-, 9-, or 10-speed freewheels. Select the configuration that matches your compatible trike before adding the system to your cart.

Who is this system for? Riders with a compatible Catrike who want a complete rear-wheel electric conversion system with matched SINET™ electronics and configurable wheel/drivetrain options. The total system load limit is 300 lbs.

Catrike models vary in rear wheel size and drivetrain configuration. This product uses required configuration selections so E-BikeKit can build the correct rear motor wheel for your order.

Wheel Size

• 20"
• 26"
• 700C

Freewheel

• 7-Speed
• 8-Speed
• 9-Speed
• 10-Speed

Both Wheel Size and Freewheel must be selected before ordering. These selections are recorded with your order and are used to configure the rear motor wheel.

If you do not know your wheel size, freewheel configuration, or rear axle/dropout type, contact E-BikeKit before ordering.

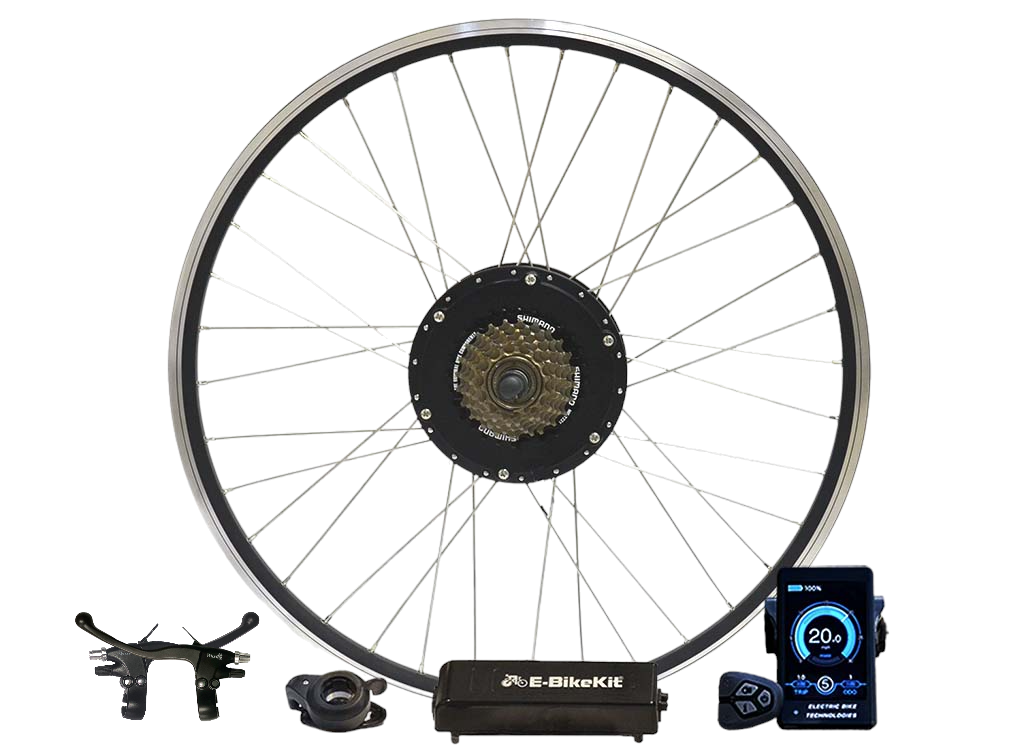

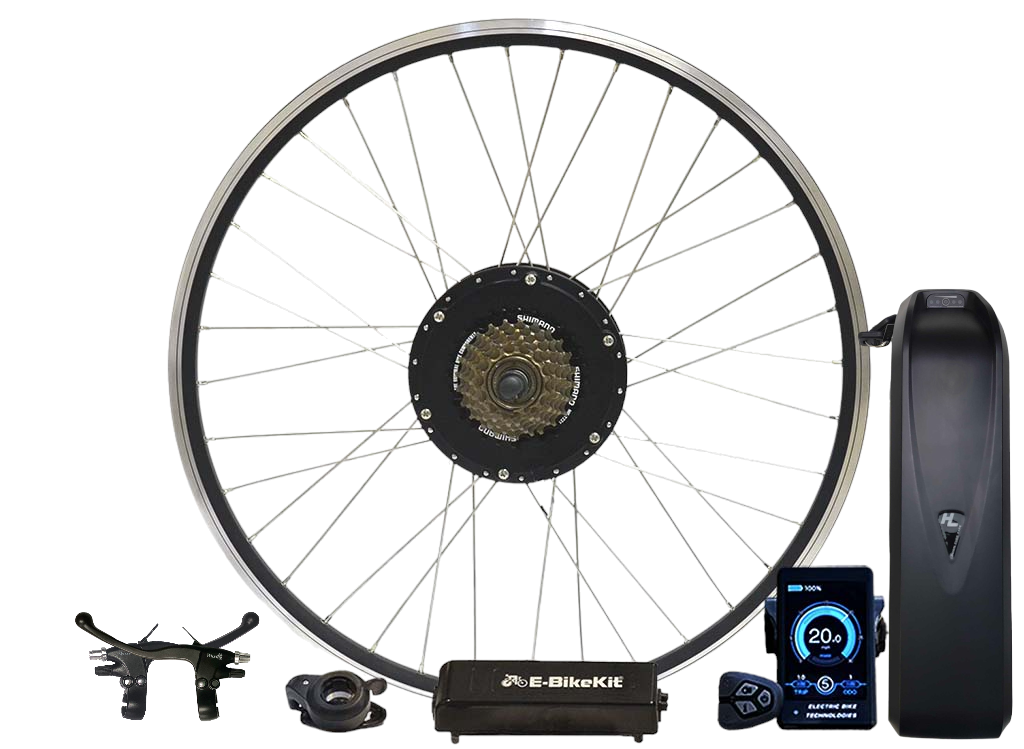

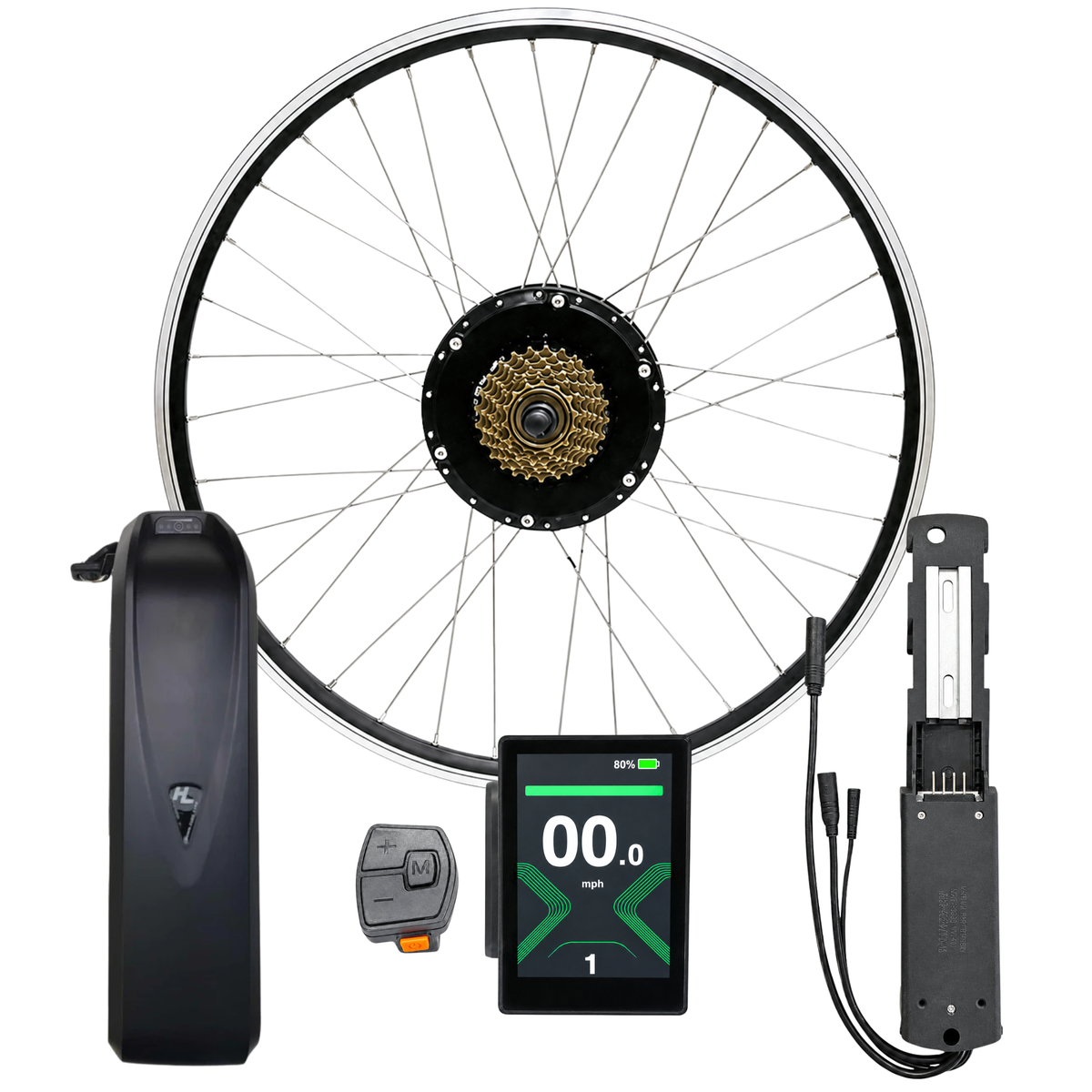

• USA hand-built Catrike rear motor wheel in your selected 20", 26", or 700C size
• 500W nominal rear hub motor
• Selected 7-, 8-, 9-, or 10-speed freewheel
• 48V 15Ah lithium-ion battery
• Integrated SINET™ sine-wave controller housed in the battery cradle

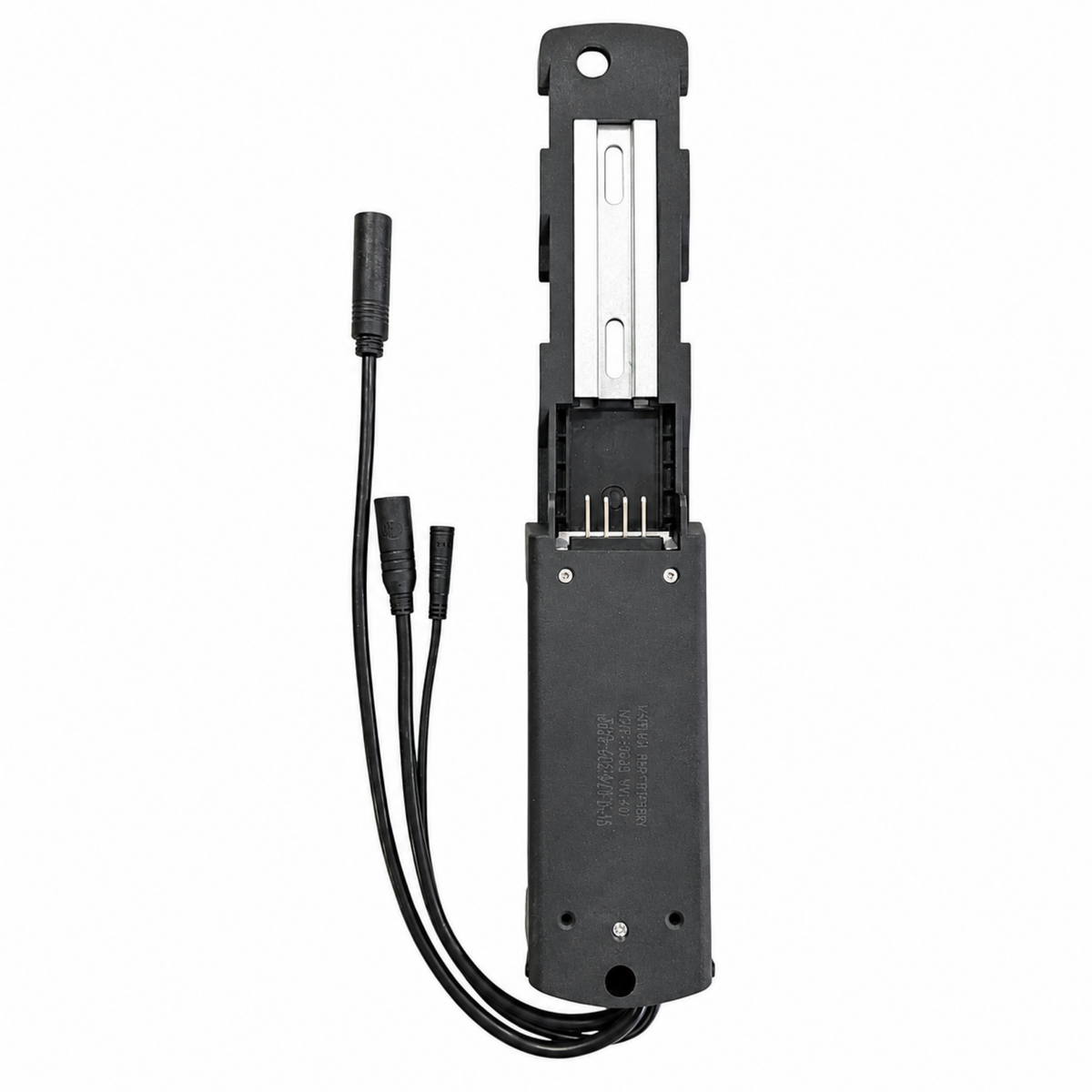

• SINET™ battery/controller cradle
• 3A smart charger

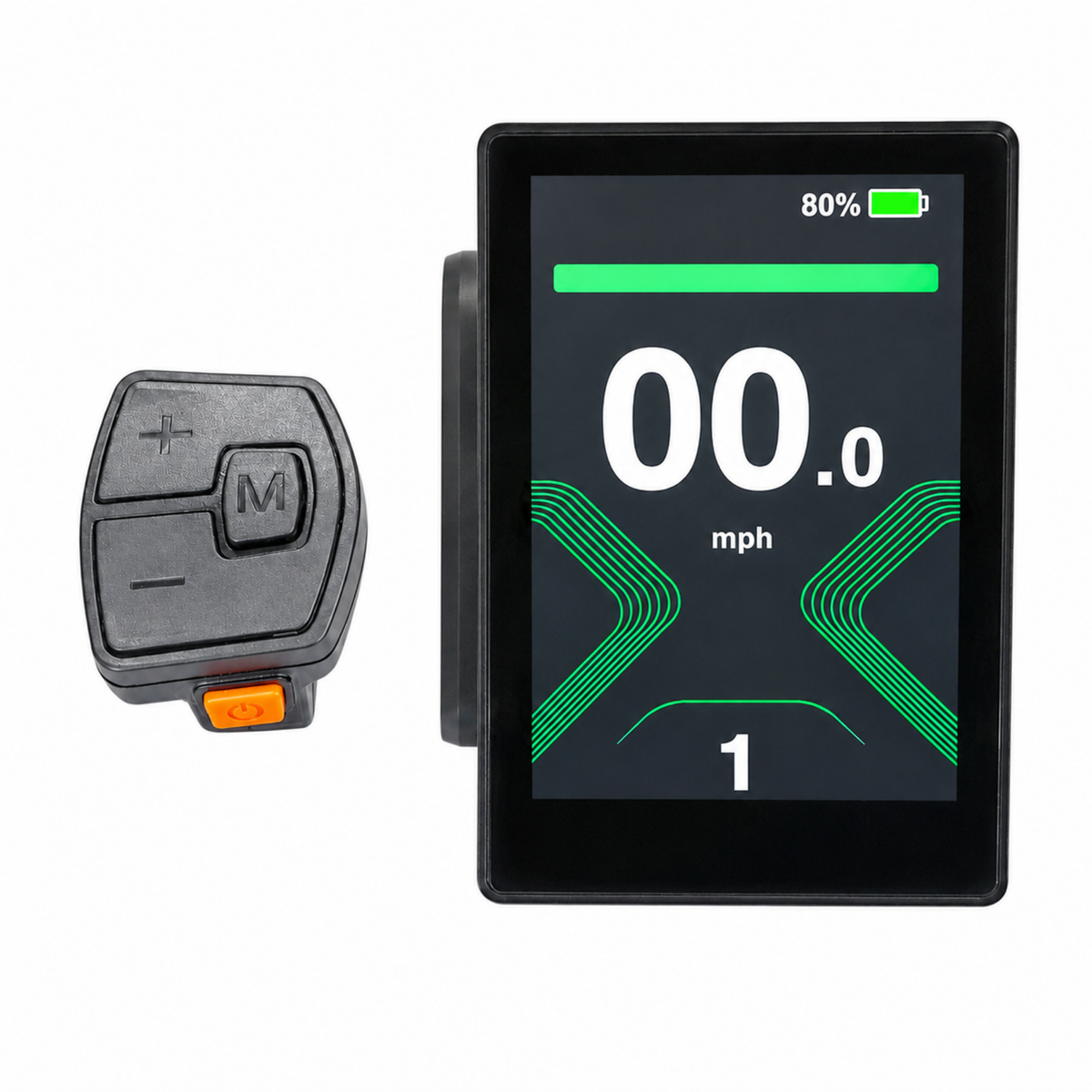

• SINET™ 3.5" full-color LCD with USB charging port

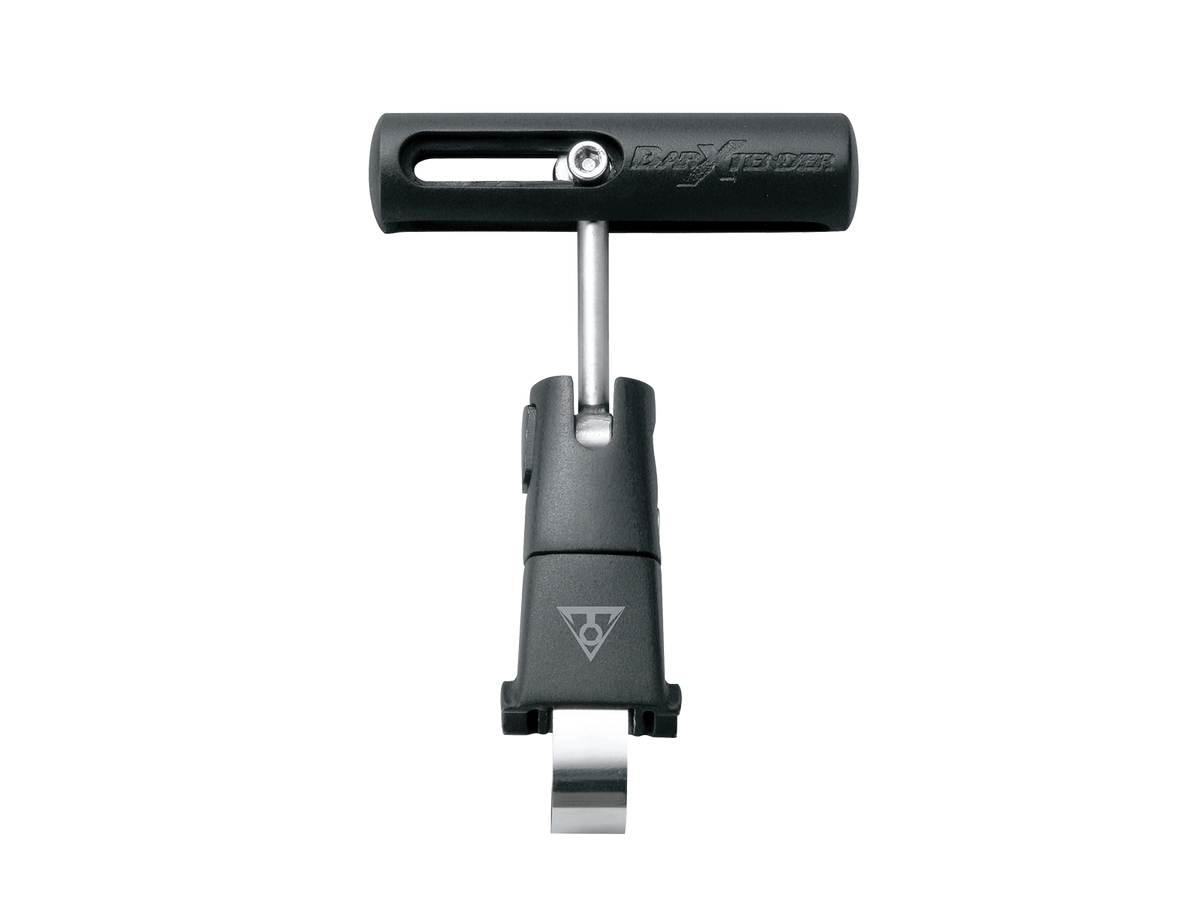

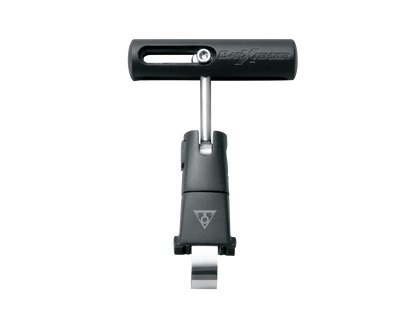

• Topeak handlebar extender for LCD mounting

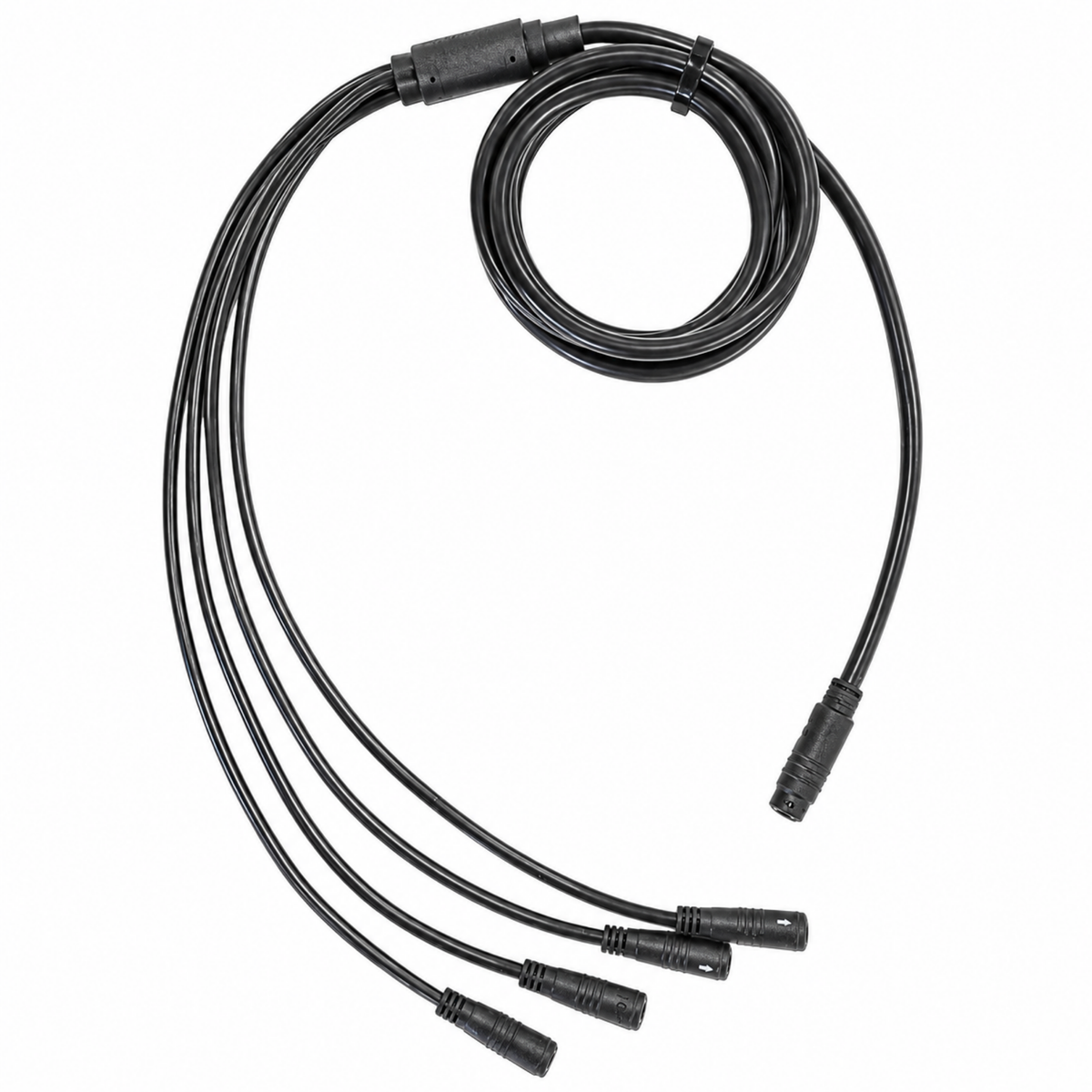

• SINET™ component wiring harness

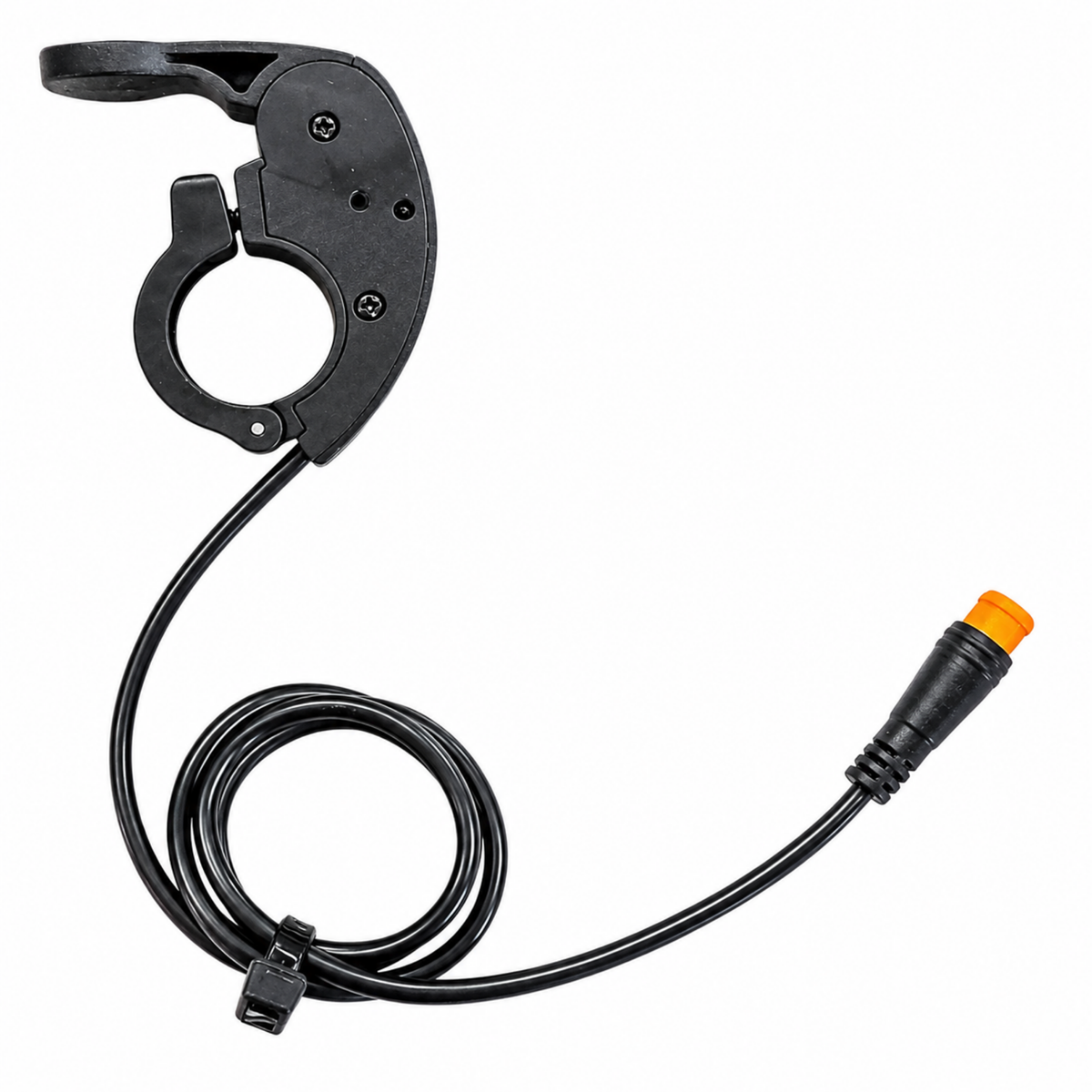

• Thumb throttle

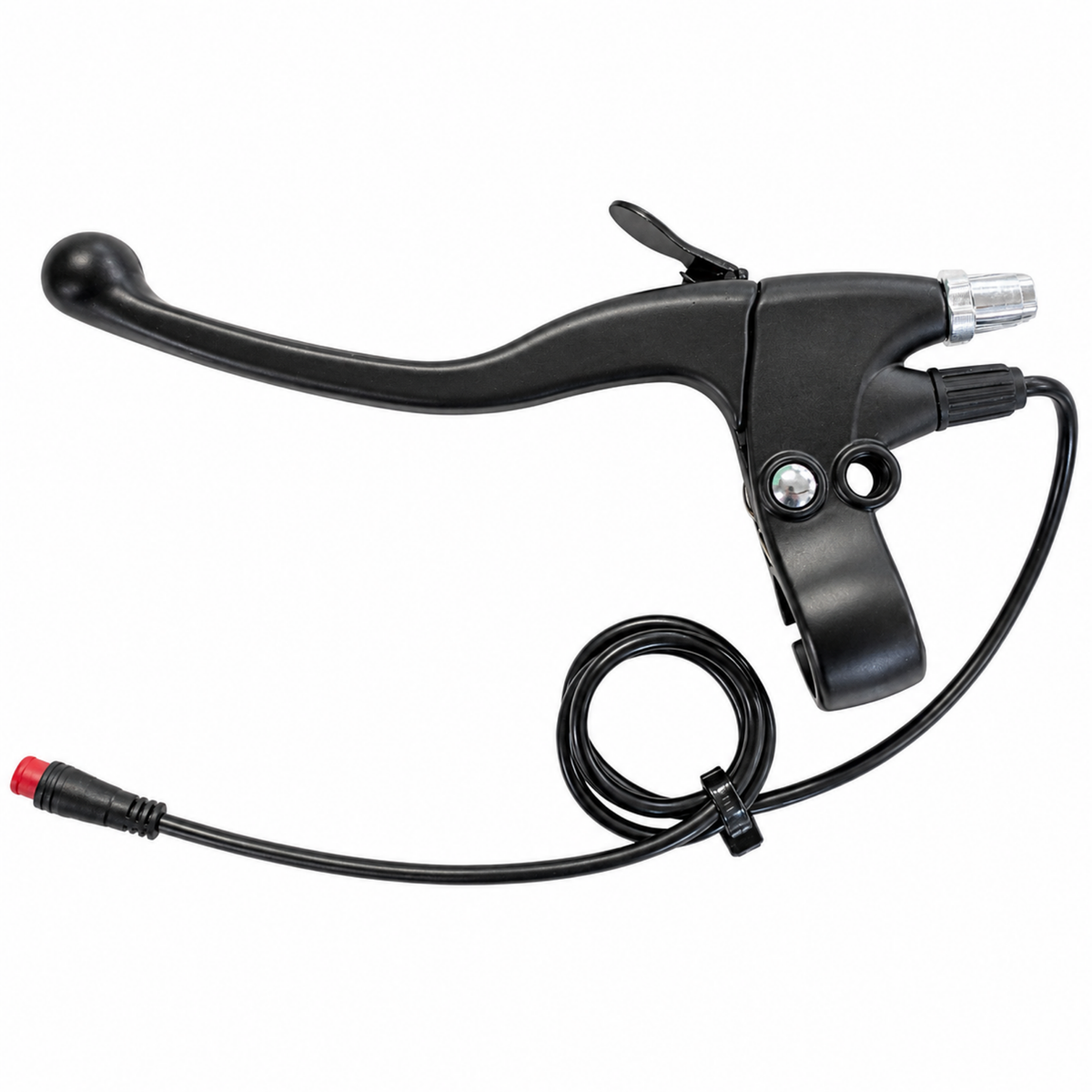

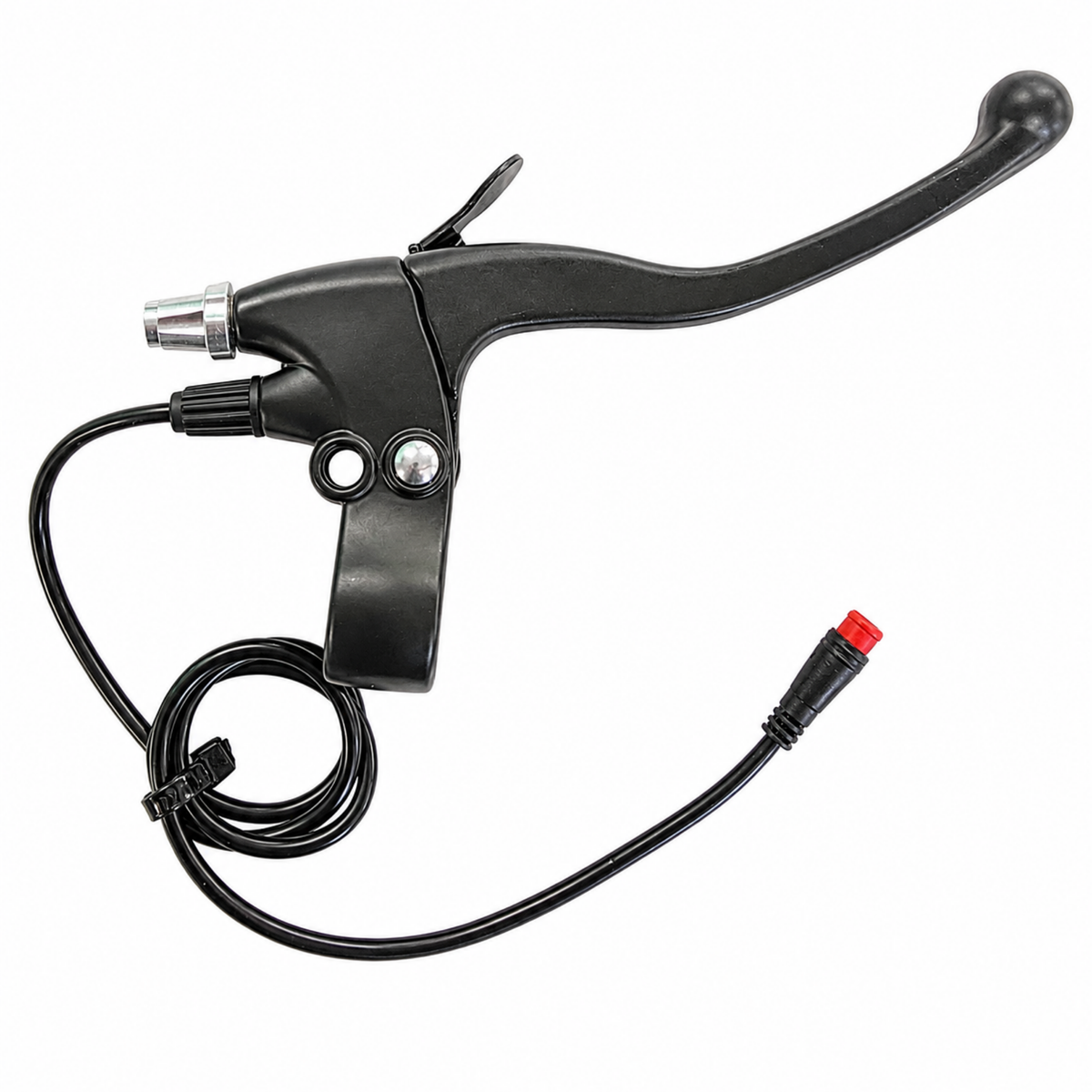

• Left and right locking e-brake levers with motor cutoff

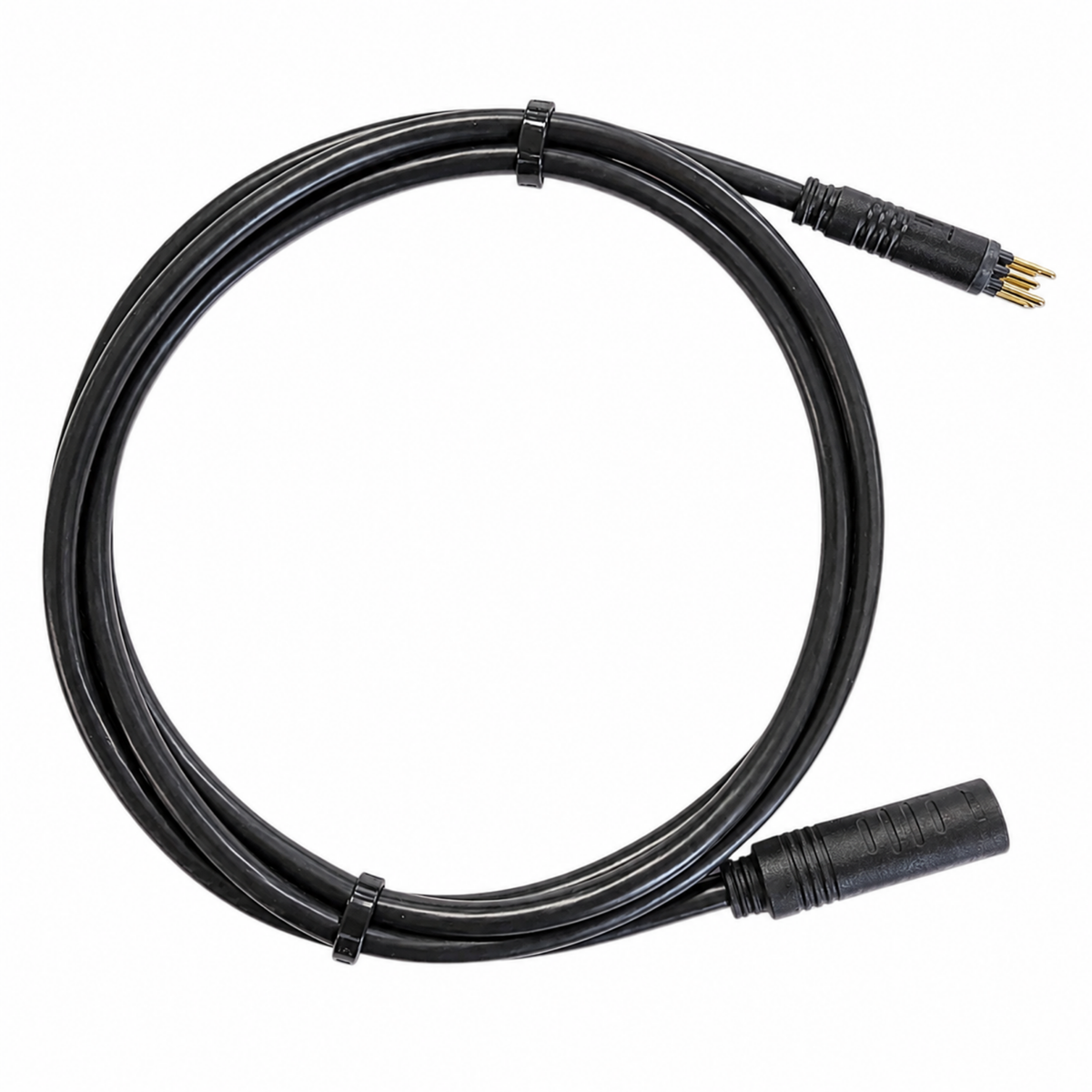

• Motor cable
• Pedal-assist extension cable as required for the Catrike layout

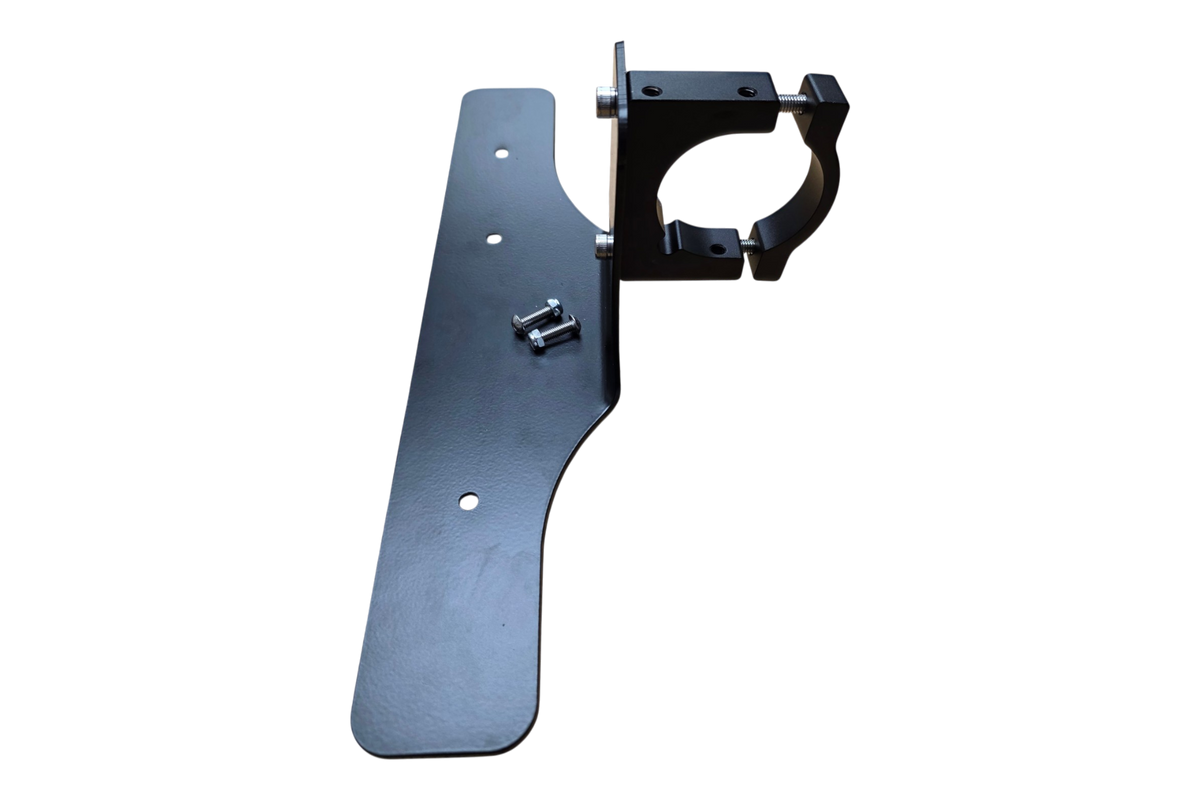

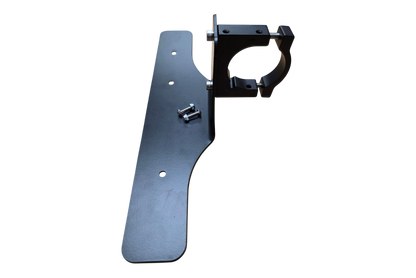

• Catrike 2-inch round frame-tube battery mounting bracket
• Torque arm(s), washers, zip ties, and required conversion-system hardware

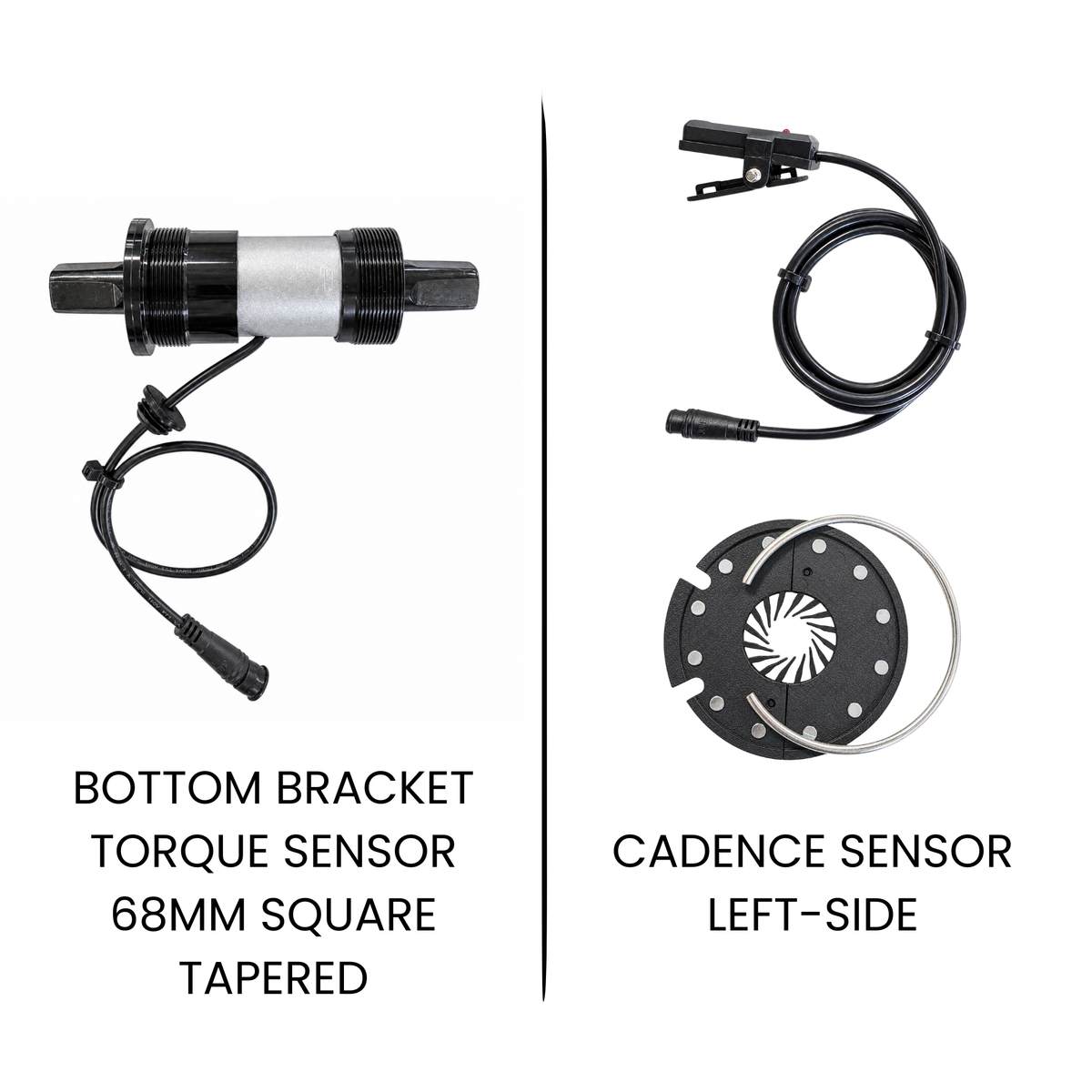

Your pedal-assist selection determines the sensor included:

• Cadence Sensor: Cadence-sensing pedal-assist components configured for the Catrike application
• Bottom Bracket Torque Sensor: SINET™ 68 mm square-taper torque-sensing bottom bracket with required SINET™ extension cable

Cadence Sensor

The cadence sensor detects crank rotation and activates pedal assistance according to the assist level selected on the LCD. Catrike crank and bottom-bracket configurations can vary, so the appropriate cadence-sensing hardware depends on the trike's crank configuration.

Some Catrike models use external-bearing bottom brackets. If your Catrike uses an external-bearing crankset, contact E-BikeKit with photos before ordering so we can confirm the appropriate pedal-assist hardware.

Bottom Bracket Torque Sensor

The optional SINET™ bottom bracket torque sensor measures rider effort and provides motor assistance in proportion to how hard you pedal, creating a smoother and more natural riding feel.

• Designed for a compatible 68 mm square-taper bottom bracket
• Required SINET™ extension cable included
• Measures rider pedaling force
• Provides smooth, proportional assistance
• Installation requires removal of the existing crank arms and bottom bracket
• Installation requires a protected 3/8-inch cable-routing hole through the bottom bracket shell

Important: If your Catrike uses an external-bearing bottom bracket or another crank configuration that is not compatible with the SINET™ 68 mm square-taper torque sensor, contact E-BikeKit before selecting the torque-sensor option.

The SINET™ Bottom Bracket Torque Sensor provides smooth, proportional pedal assist by measuring how much force you apply to the pedals. It provides a more natural riding feel than traditional cadence-only pedal assist, but installation is more involved.

Before selecting the torque sensor, please understand the installation requirements:

• Your bicycle or tricycle must have a compatible 68 mm bottom bracket shell
• The torque sensor is designed for use with square-taper cranks
• Both crank arms and the existing bottom bracket must be removed
• A 3/8-inch cable-routing hole must be drilled through the bottom bracket shell
• The torque-sensor cable is routed through the 3/8-inch opening
• The supplied rubber grommet seats in the opening to protect the cable and provide a clean finished installation
• Proper crank and bottom-bracket removal tools are required

Can I install the torque sensor myself?
Yes. If you are comfortable removing crank arms and a bicycle bottom bracket, installing a replacement bottom bracket, drilling the required 3/8-inch cable-routing hole, and completing the rest of the conversion, this installation can be performed by an experienced DIY installer.

We recommend reviewing the installation requirements and watching the installation video below before choosing the torque-sensor option so you can decide whether this is a job you are comfortable performing yourself.

Torque Sensor Installation Video

Watch the complete installation process for the SINET™ 68 mm square-taper bottom bracket torque sensor, including crank and bottom-bracket removal, drilling the 3/8-inch cable-routing hole, routing the sensor cable, installing the torque sensor, and seating the protective grommet.

Watch the SINET™ Torque Sensor Installation Video on YouTube →

Important: This video demonstrates installation on a compatible 68 mm square-taper bottom bracket. Some traditional upright tricycles use a one-piece crank and require additional crank-conversion components before the SINET™ torque sensor can be installed.

Prefer a simpler DIY installation?
Choose the Cadence Sensor. It provides dependable pedal assist without replacing the bottom bracket or drilling a cable-routing hole.

Want a Shop to Handle the Installation?

If you would rather have the conversion professionally installed, start with the E-BikeKit Dealer Locator. Enter your ZIP code to find participating dealers near you, then contact the shop directly to confirm installation availability.

Find an E-BikeKit Dealer Near You →

No E-BikeKit dealer nearby? Contact a local bicycle shop and ask whether they are willing to install an electric bike conversion system. Give the shop our contact information and have them call us directly. We can quickly help them get set up as an E-BikeKit dealer, review the system with them, and provide technical support for your conversion.

If you find a local shop that is interested but would prefer that we contact them, contact E-BikeKit and provide the shop's information. We can reach out and help get the process started.

Questions before ordering? Call E-BikeKit at 1-866-882-3245, Monday–Friday, 9am–5pm EST, or email support@ebikekit.com.

• Quiet, efficient sine-wave motor control
• Integrated controller housed in the battery cradle
• 3.5" full-color LCD with USB charging port
• Matched waterproof electrical connectors
• Cadence and compatible torque-sensing pedal-assist support
• Throttle-on-demand
• Motor cutoff through both locking e-brake levers
• Cleaner installation with fewer external components

• 3.5" full-color display
• USB charging port
• Battery voltage and level display
• Current speed
• Trip meter and odometer
• Pedal-assist level selection
• Walk-assist mode
• Error diagnostics
• Advanced programming menu

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, display operation, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD Quick-Start Guide (PDF)

• Application: Compatible Catrike recumbent trikes
• System Type: Configurable rear-wheel electric conversion system
• Nominal Motor Power: 500W
• System Voltage: 48V
• Motor Type: Rear hub motor
• Motor Axle: 10 mm flat bolt-on axle
• Wheel Sizes: 20", 26", or 700C — customer selected
• Freewheel: 7-, 8-, 9-, or 10-speed — customer selected
• Controller: Integrated SINET™ sine-wave controller housed in battery cradle
• Battery: 48V 15Ah lithium-ion battery included
• Charger: 3A smart charger included
• Display: SINET™ 3.5" full-color LCD with USB charging port
• Display Mount: Topeak handlebar extender included
• Throttle: Thumb throttle included
• Pedal Assist: Cadence Sensor or compatible 68 mm Bottom Bracket Torque Sensor
• Total System Load Limit: 300 lbs
• Wheel Build: USA hand-built

This system includes the current E-BikeKit 48V 15Ah lithium-ion battery, integrated SINET™ controller cradle, matching 3A charger, and the Catrike 2-inch round frame-tube battery mounting bracket.

Battery Mount Included: The supplied bracket clamps to a compatible 2-inch round frame tube and provides the mounting point for the SINET™ battery/controller cradle. This mount is included with the Catrike system and does not need to be selected or purchased separately.

• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: Approximately 720Wh
• Cell Configuration: 21700 cells, 13S3P
• Maximum Continuous Discharge: 30A
• BMS Protection Current: 30A
• Maximum Charge Voltage: 54.6V
• BMS Low-Voltage Protection: 36V
• Battery-to-Cradle Interface: Four-blade contact system
• Controller: Integrated into battery cradle
• Estimated Range: Approximately 20–40 miles depending on rider weight, terrain, speed, pedal input, assist level, temperature, and total load
• Charger: 3A smart charger included
• Charge Time: Approximately 5 hours
• Expected Life: Approximately 400–500 charge cycles

Before installation, confirm that your Catrike has an appropriate 2-inch round frame-tube mounting location and adequate clearance for the mounting bracket, SINET™ battery/controller cradle, and battery.

View the 48V 15Ah Battery Dimensional Drawing (PDF)

Catrike has produced different frame, rear-axle, crank, and drivetrain configurations. This conversion system is intended only for Catrikes with compatible slotted rear dropouts capable of accepting the E-BikeKit rear hub motor's 10 mm flat bolt-on axle.

Not compatible:

• Rear thru-axle configurations
• Rear dropout designs that cannot accept a 10 mm flat bolt-on axle

Before ordering, confirm:

• Your Catrike has compatible slotted rear dropouts for a 10 mm flat bolt-on axle
• Your required rear wheel size is 20", 26", or 700C
• Your drivetrain uses a compatible 7-, 8-, 9-, or 10-speed freewheel configuration
• Your frame and rear dropouts are in safe operating condition
• Your crank/bottom-bracket configuration is compatible with the pedal-assist option you select
• Your Catrike has an appropriate 2-inch round frame tube and sufficient clearance for the supplied battery mounting bracket, SINET™ battery/controller cradle, and battery

Not sure? Contact E-BikeKit before ordering. Tell us your Catrike model and year if known, and send photos of the rear dropout/axle area and crank/bottom-bracket area if needed. We can help determine whether the conversion system and selected pedal-assist option are appropriate.

This is a configurable Catrike conversion system. Installation requires mechanical bicycle work and proper electrical-component mounting and routing.

• Confirm rear dropout compatibility with the 10 mm flat bolt-on motor axle
• Install the rear motor wheel in the selected 20", 26", or 700C size
• Verify correct operation of the selected 7-, 8-, 9-, or 10-speed freewheel
• Install and properly secure the supplied axle hardware and torque arm(s) as required
• Install the supplied 2-inch round frame-tube battery mounting bracket on a compatible 2-inch round frame tube with adequate battery clearance
• Secure the SINET™ battery/controller cradle
• Install the 48V 15Ah battery into the cradle
• Install the Topeak handlebar extender and SINET™ LCD
• Install the thumb throttle and locking e-brake levers
• Install the selected pedal-assist sensor using the correct components for the Catrike crank configuration
• Route all wiring away from steering components, tires, chain, drivetrain, and other moving parts
• Verify brake cutoffs, throttle operation, pedal assist, wheel clearance, drivetrain operation, steering movement, and display settings before riding

Professional bicycle-shop installation is recommended if you are not experienced with cranksets, bottom brackets, rear wheels, drivetrains, battery mounting, and electric conversion systems.

Learn more: Top 25 Frequently Asked Questions

Before ordering: Because Catrike configurations vary, contact our team if you are uncertain about model, rear axle/dropout, wheel-size, drivetrain, crank, pedal-assist, or 2-inch frame-tube compatibility.

Questions? Call us toll-free at 1-866-882-3245, Monday–Friday, 9am–5pm EST, or email support@ebikekit.com.

Battery shipping: Lithium-ion batteries ship separately via FedEx Hazmat and may require a delivery signature. It is normal for the conversion system, battery, charger, wheel, or mounting components to arrive in multiple shipments or on different days.
