Baja Trike Electric Conversion System – 48V 15Ah Battery

• Designed specifically for the Sun Baja Trike
• Complete SINET™ electric conversion system with 48V 15Ah battery included
• 500W nominal front hub motor
• 24" fat-tire front wheel configuration
• Choose Cadence Sensor or Torque Sensor + Crank Conversion Kit
• 3.5" full-color SINET™ LCD with USB charging port, diagnostics, and programming
• Topeak handlebar extender included for display mounting
• Baja-specific behind-the-basket battery mounting hardware included

A purpose-built electric conversion system engineered specifically for the Sun Baja Trike. The system adds smooth electric assist while preserving the Baja's upright trike layout, rear axle, and drivetrain.

Baja Trike Electric Conversion System – 48V 15Ah Battery

The current-generation E-BikeKit™ Baja Trike Conversion System uses the latest SINET™ platform with a 500W nominal front hub motor, integrated sine-wave controller, full-color LCD, throttle-on-demand, locking e-brake levers, and your choice of cadence or torque-sensing pedal assist.

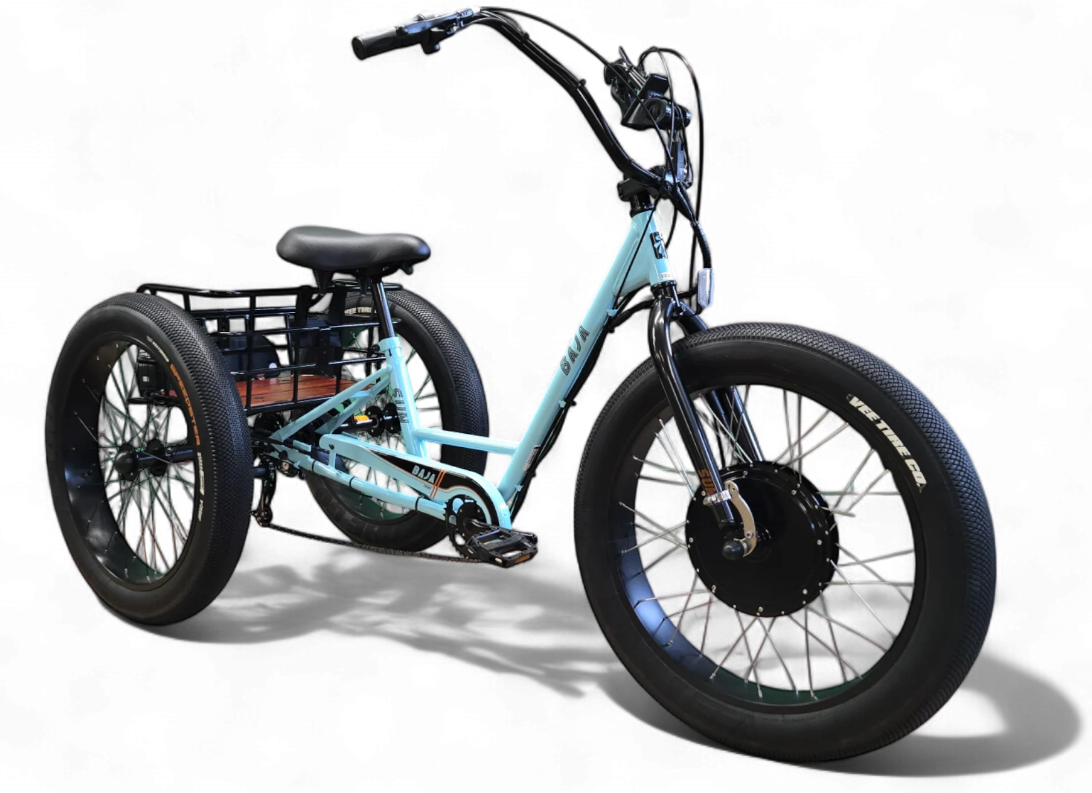

The motor is built into a USA hand-built 24" fat-tire front wheel configured specifically for the Baja. Because the conversion is front-wheel drive, the trike's existing rear axle and drivetrain remain unchanged.

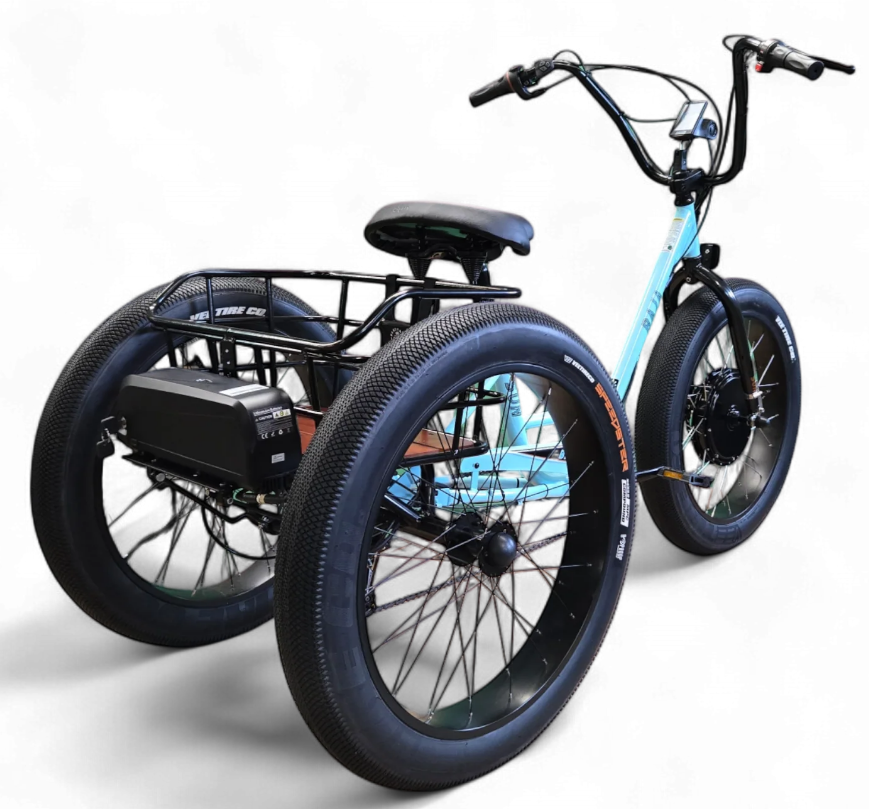

The included 48V 15Ah lithium-ion battery slides into the SINET™ battery/controller cradle. Baja-specific mounting hardware positions the cradle securely behind the rear basket, using the supplied support structure and mounting plate while preserving normal basket use.

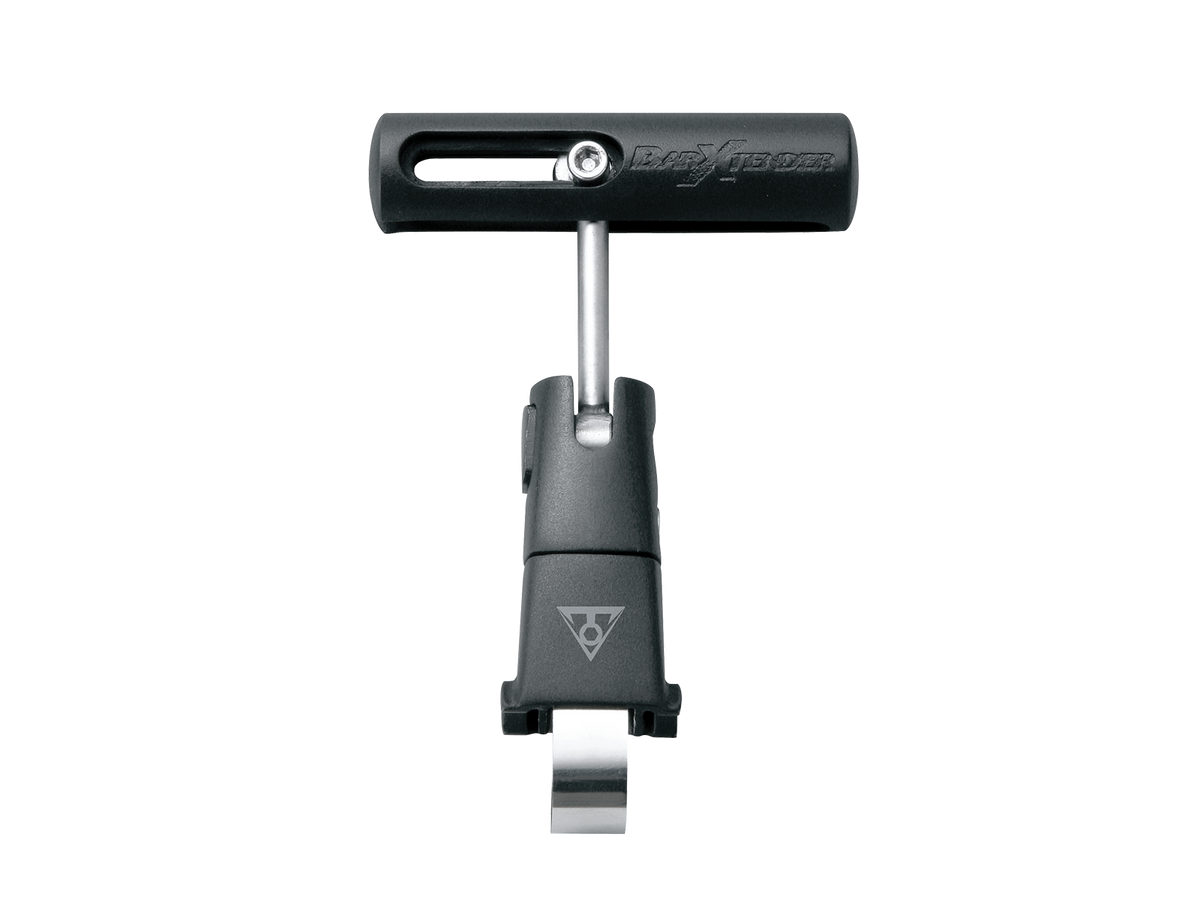

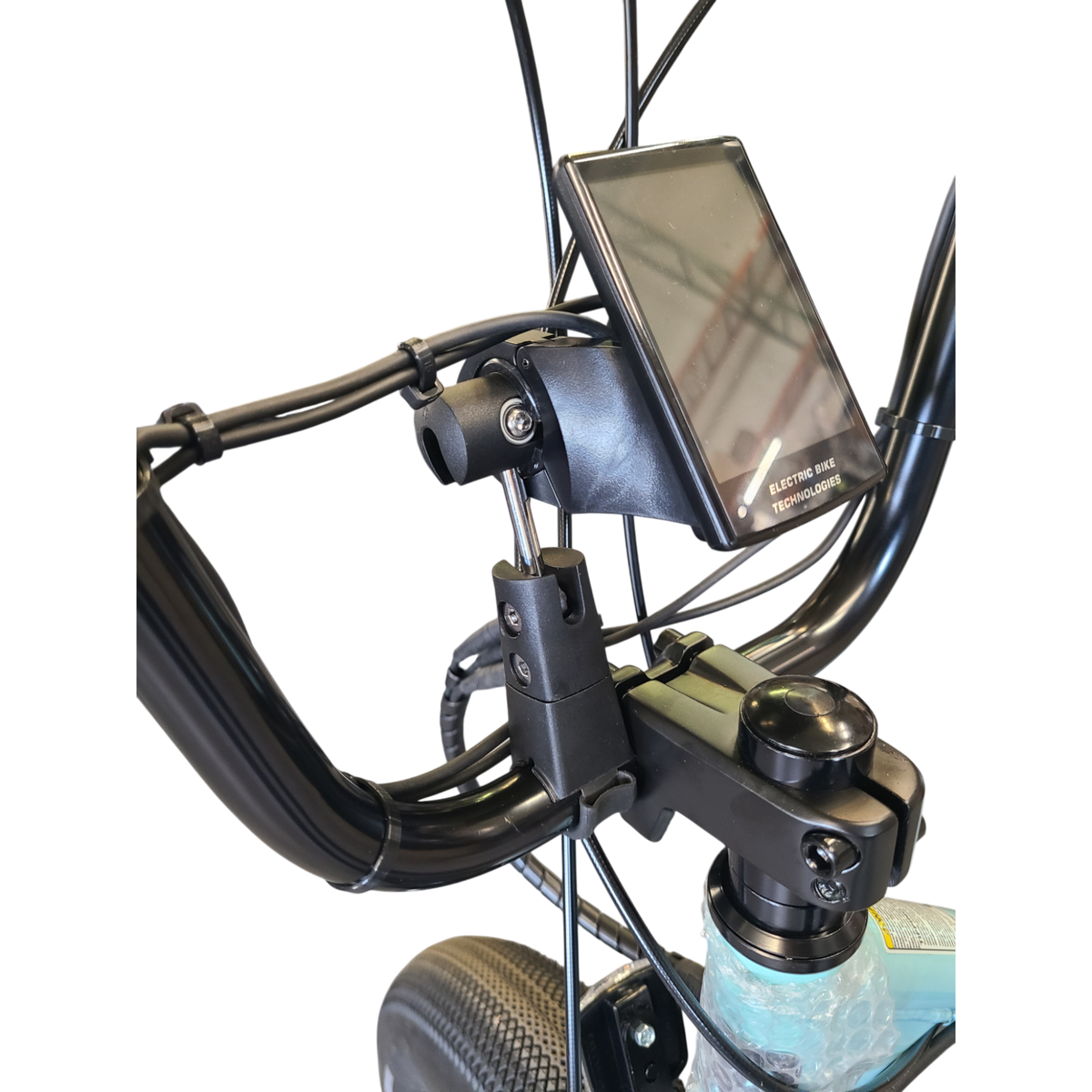

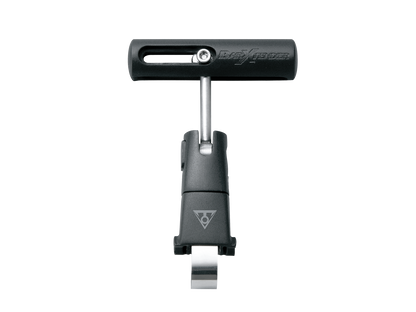

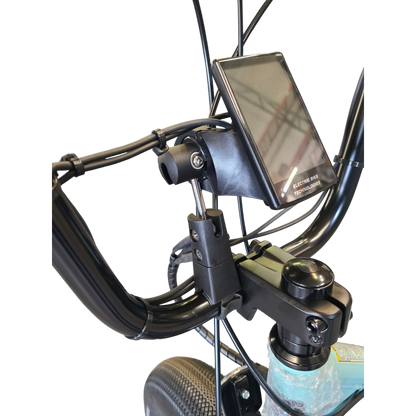

A Topeak handlebar extender is included to provide a practical mounting location for the SINET™ LCD on the Baja's cockpit.

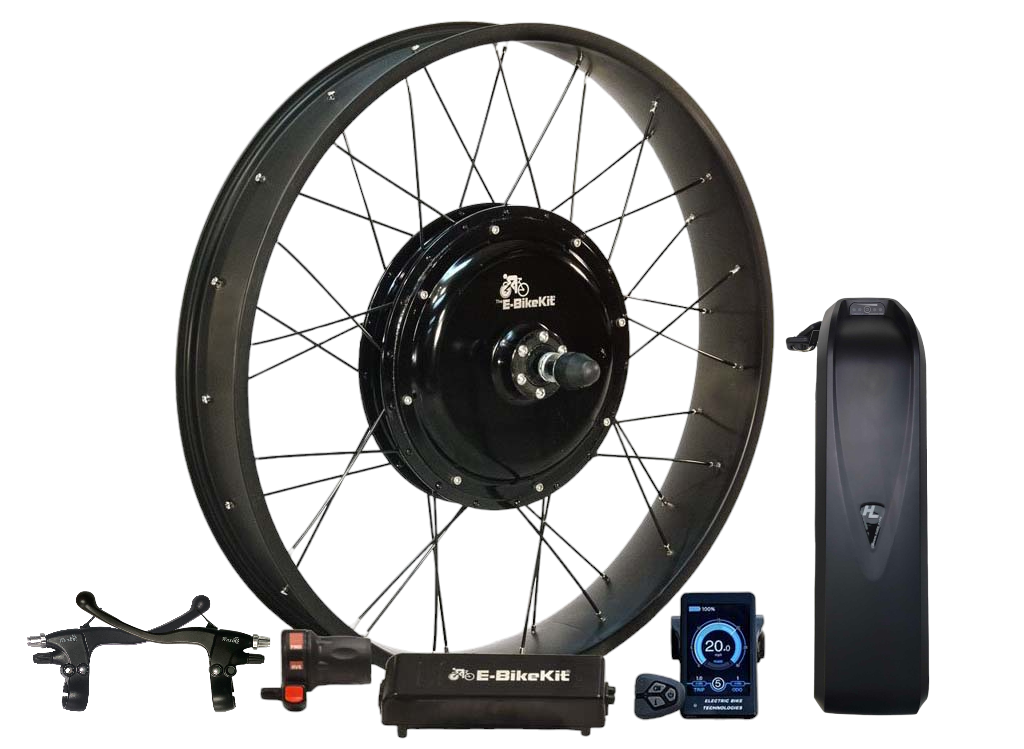

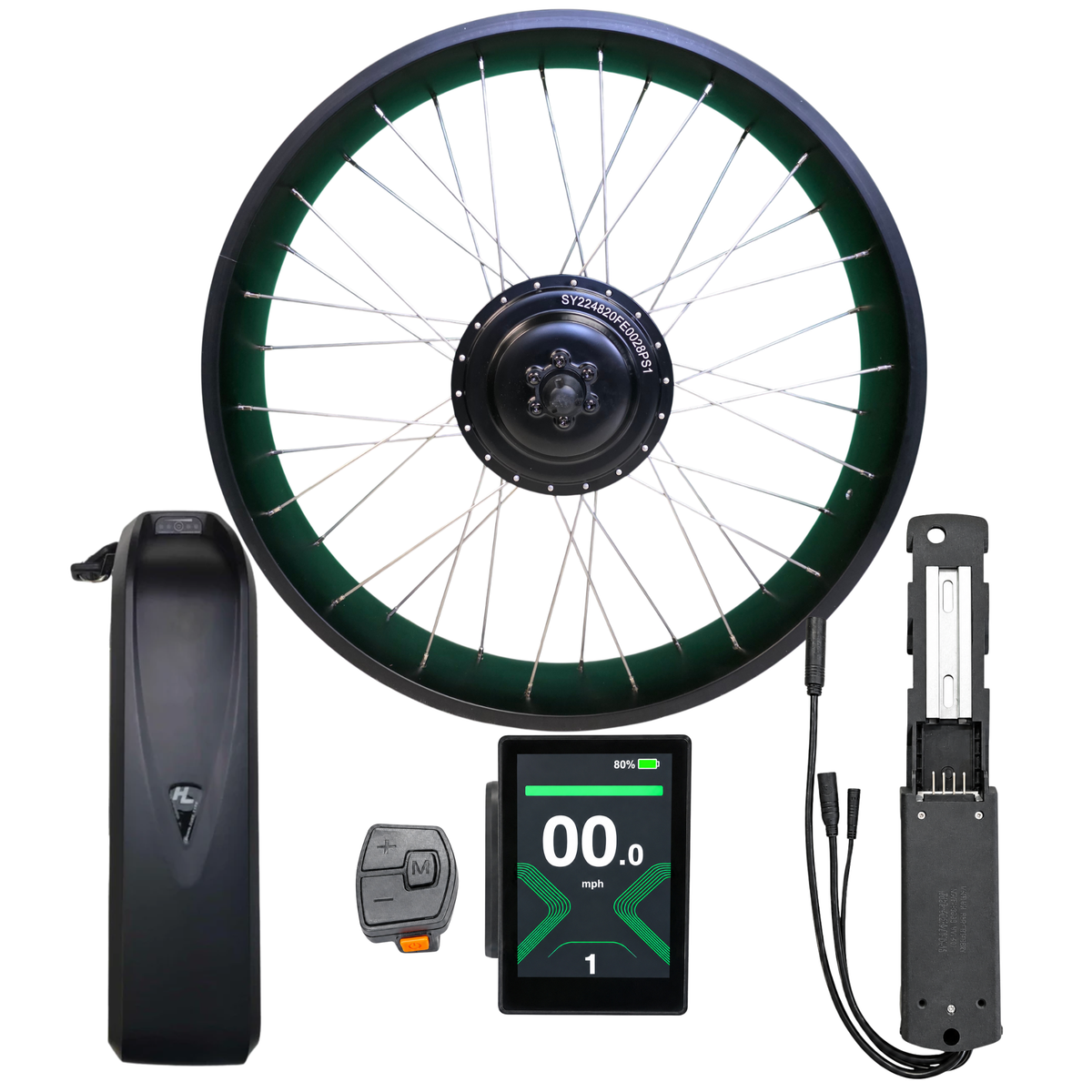

• USA hand-built 24" Baja front motor wheel
• 500W nominal front hub motor
• 48V 15Ah lithium-ion battery
• Integrated SINET™ sine-wave controller housed in the battery cradle

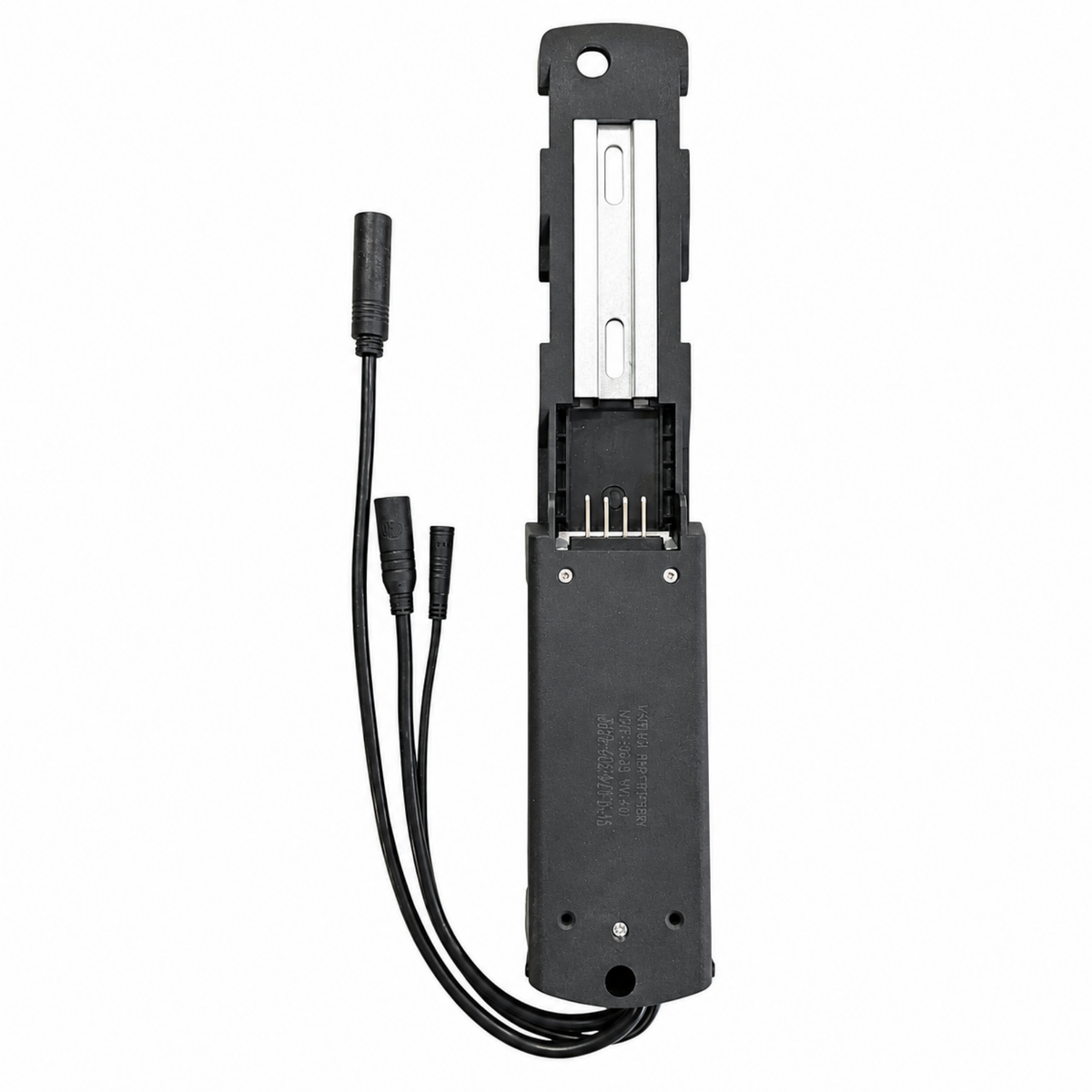

• SINET™ battery/controller cradle
• 3A smart charger
• SINET™ 3.5" full-color LCD with USB charging port
• Topeak handlebar extender for LCD mounting

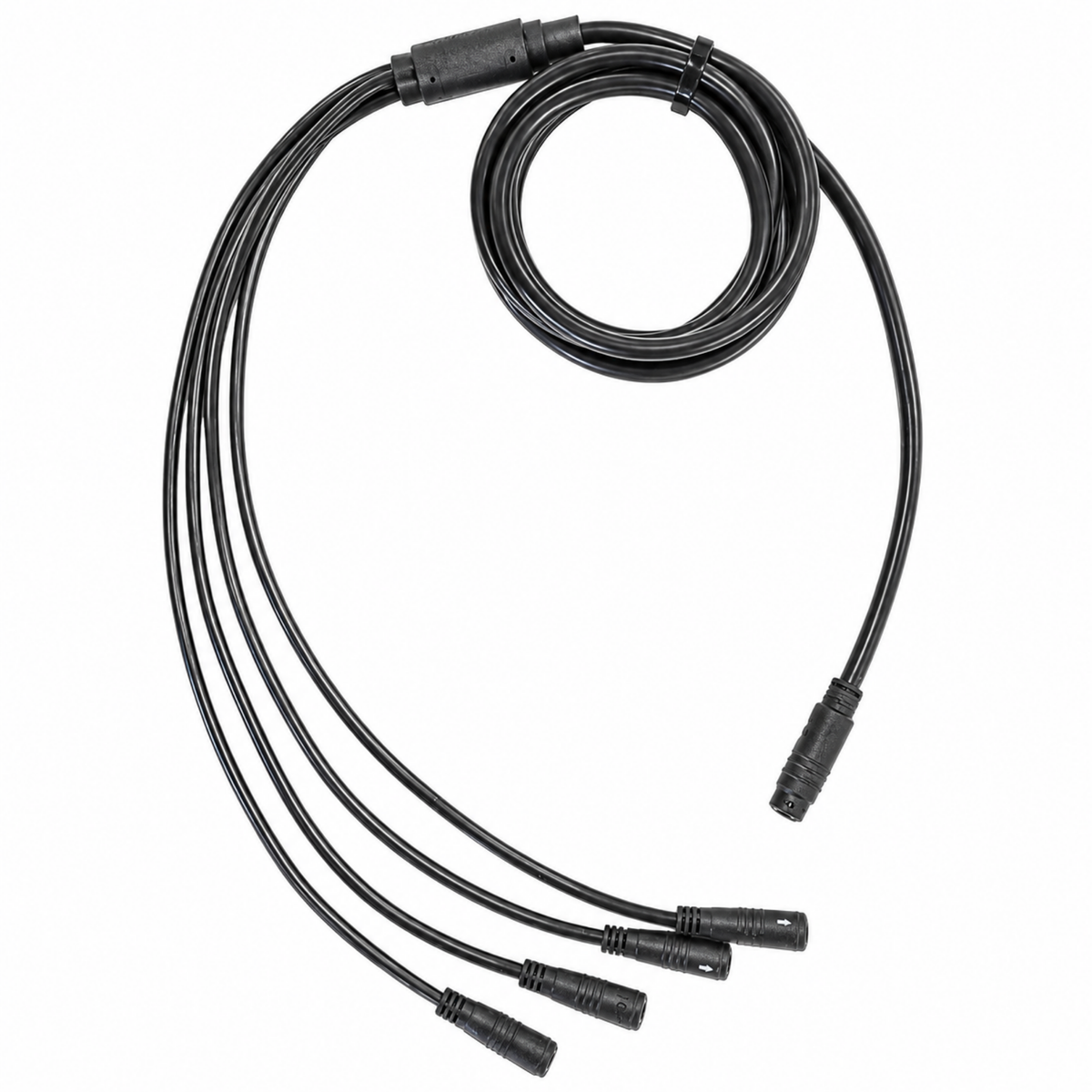

• SINET™ component wiring harness

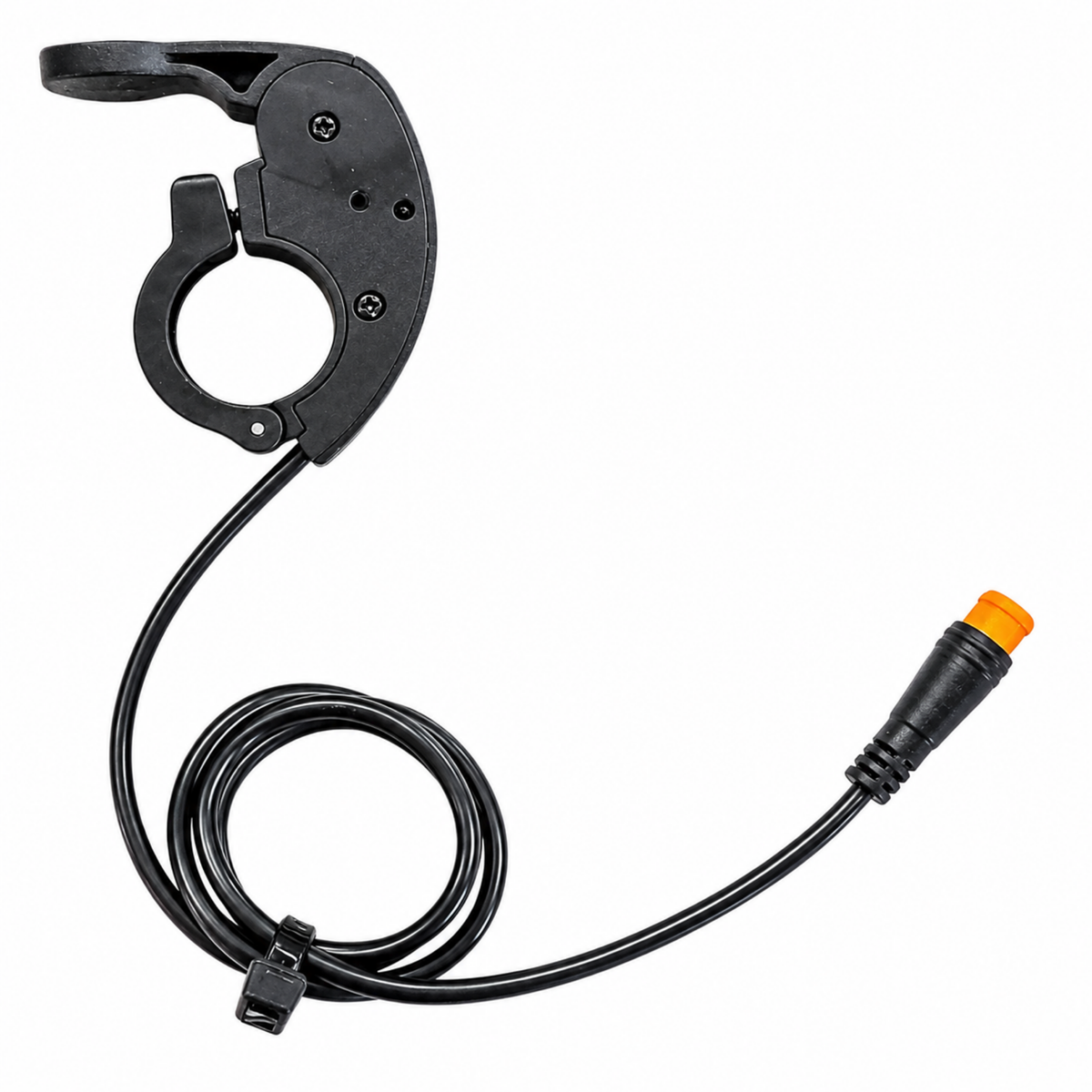

• Thumb throttle

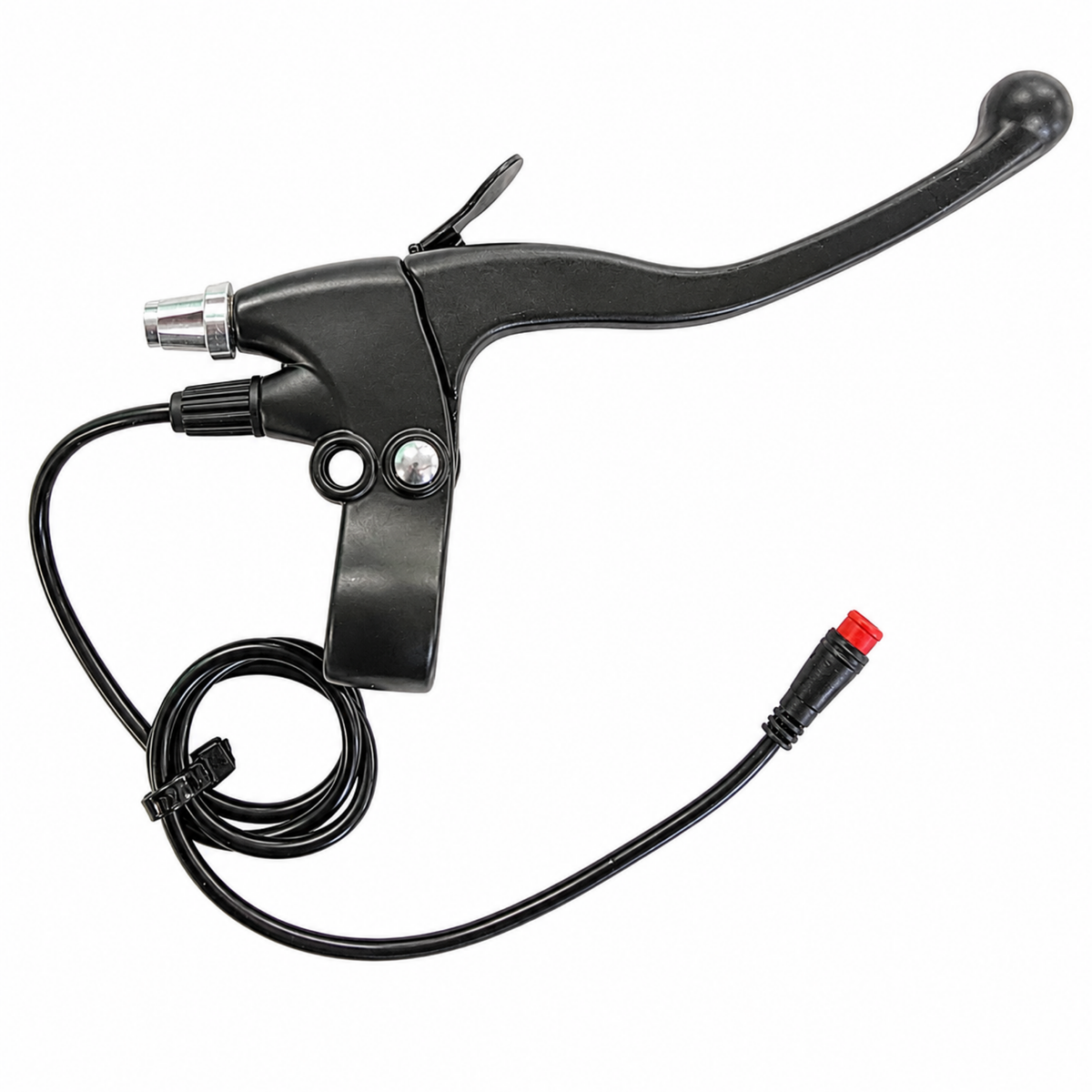

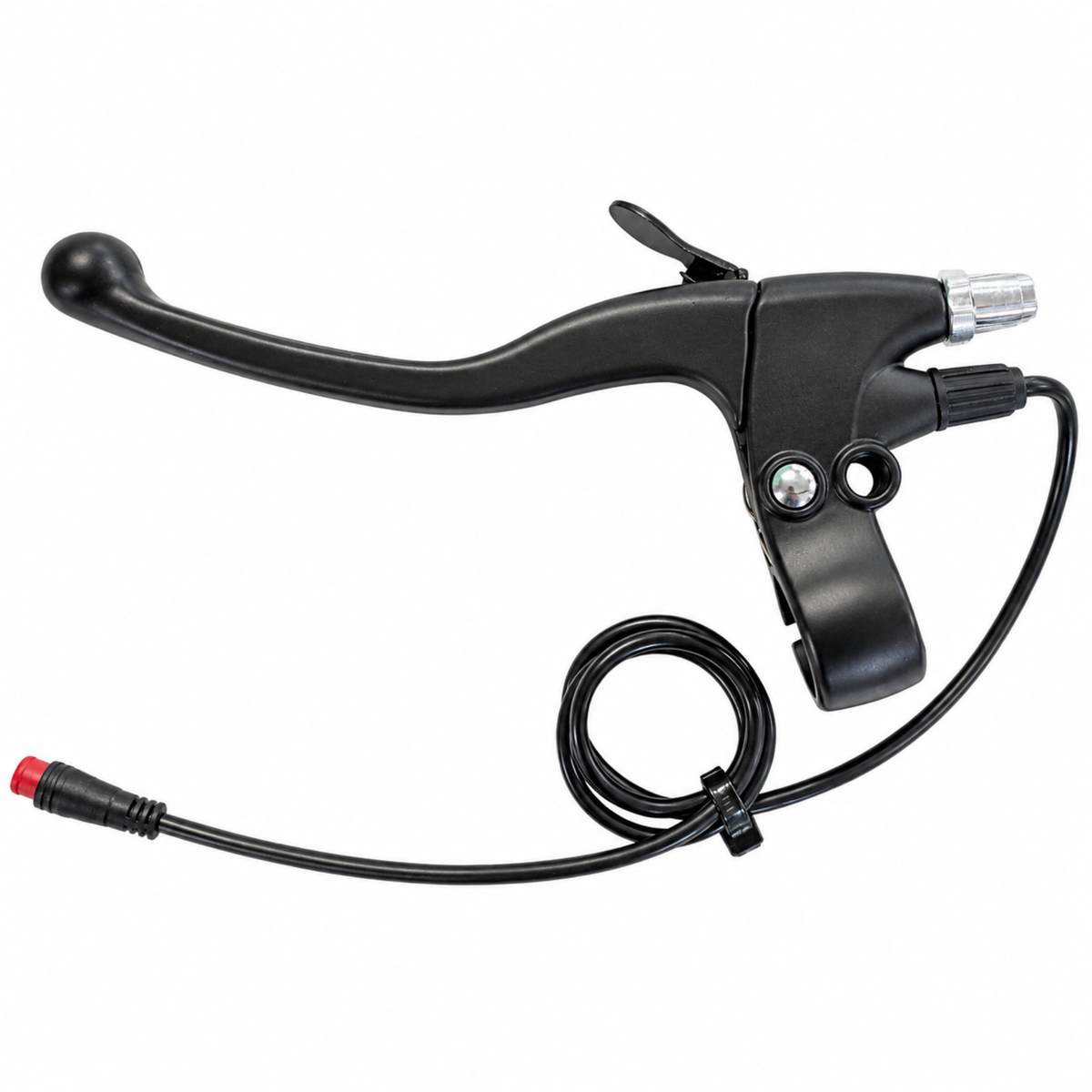

• Left and right locking e-brake levers with motor cutoff

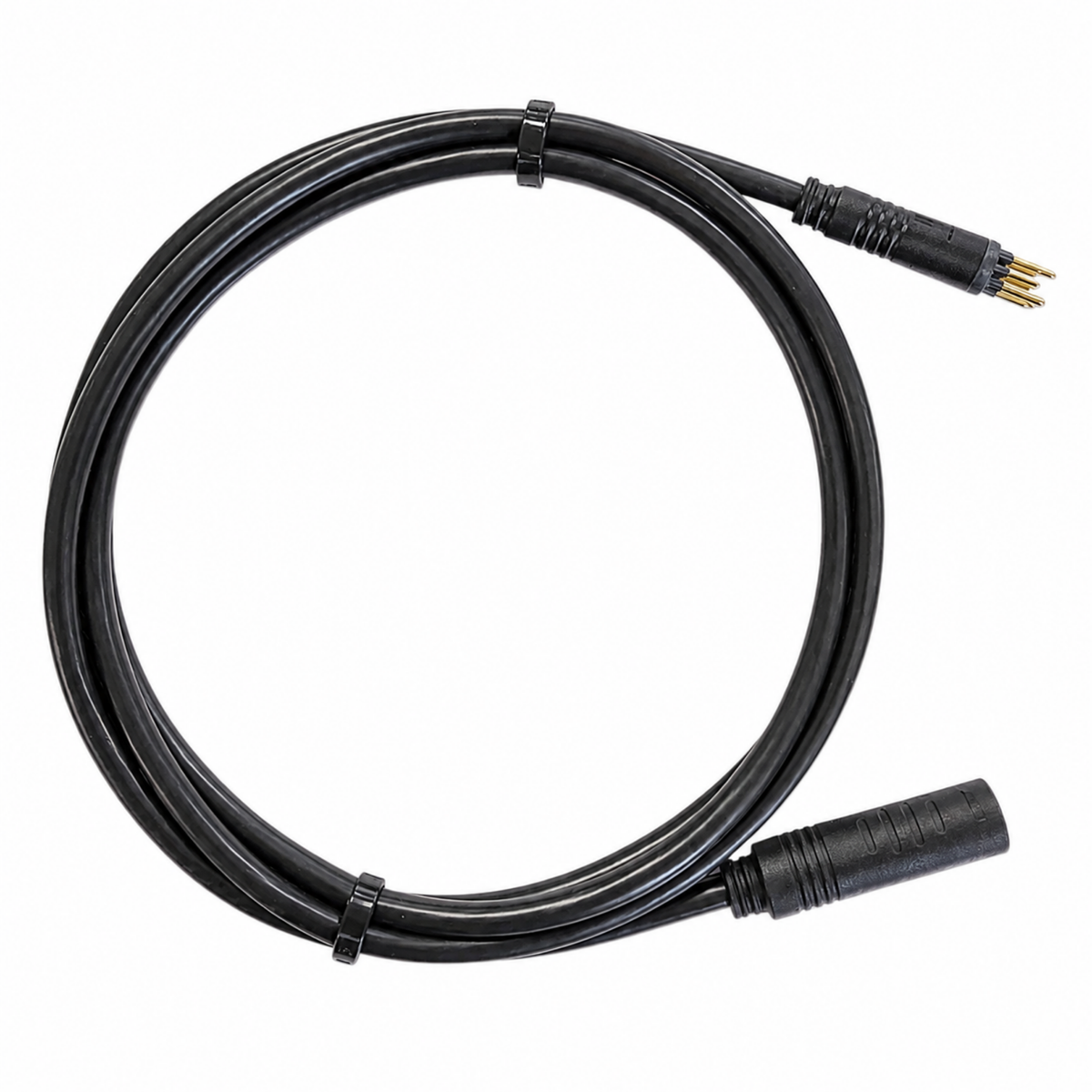

• Motor cable
• Baja-specific behind-the-basket battery mounting hardware and mounting plate
• Torque arm(s), washers, zip ties, and required conversion-system hardware

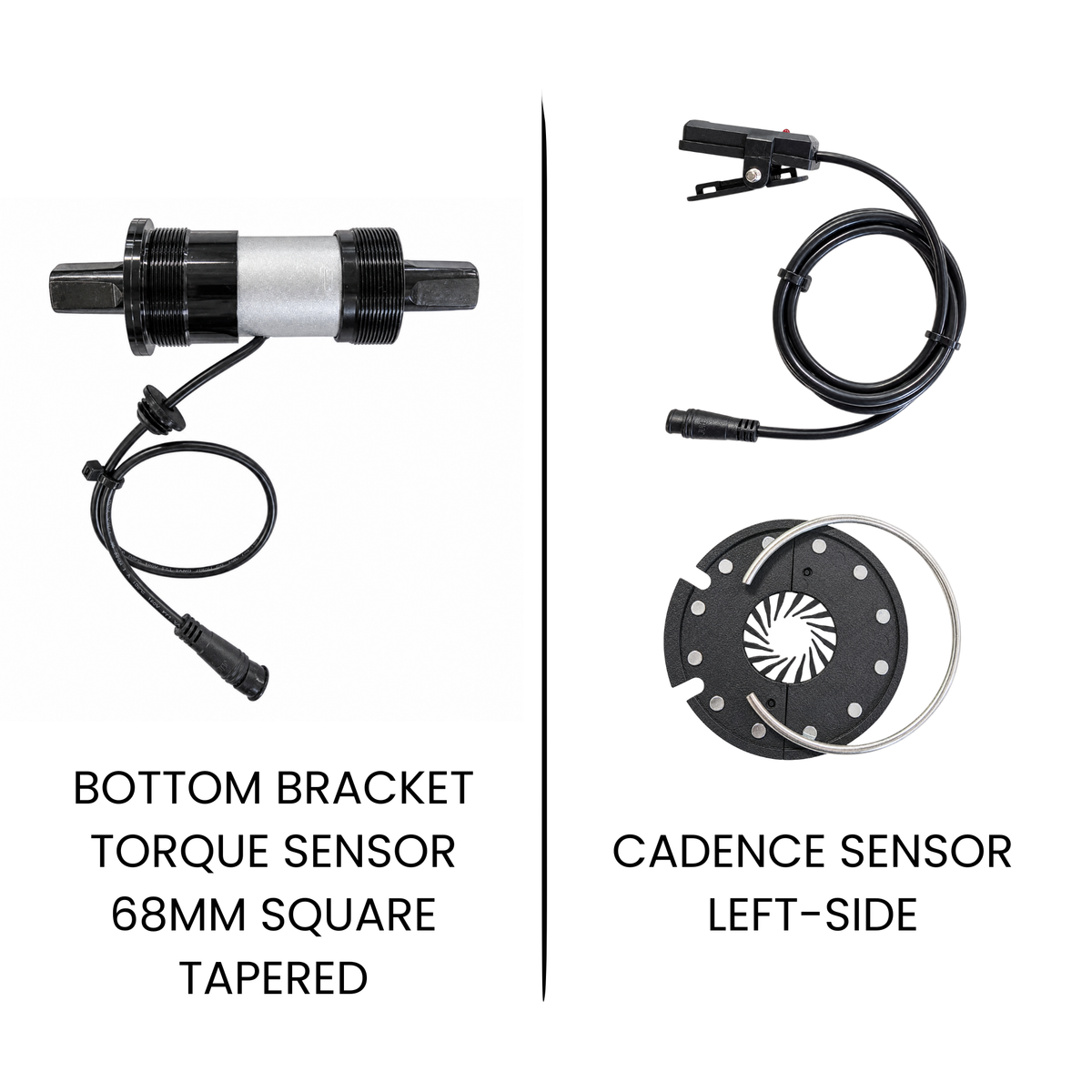

Your pedal-assist selection determines the additional components included:

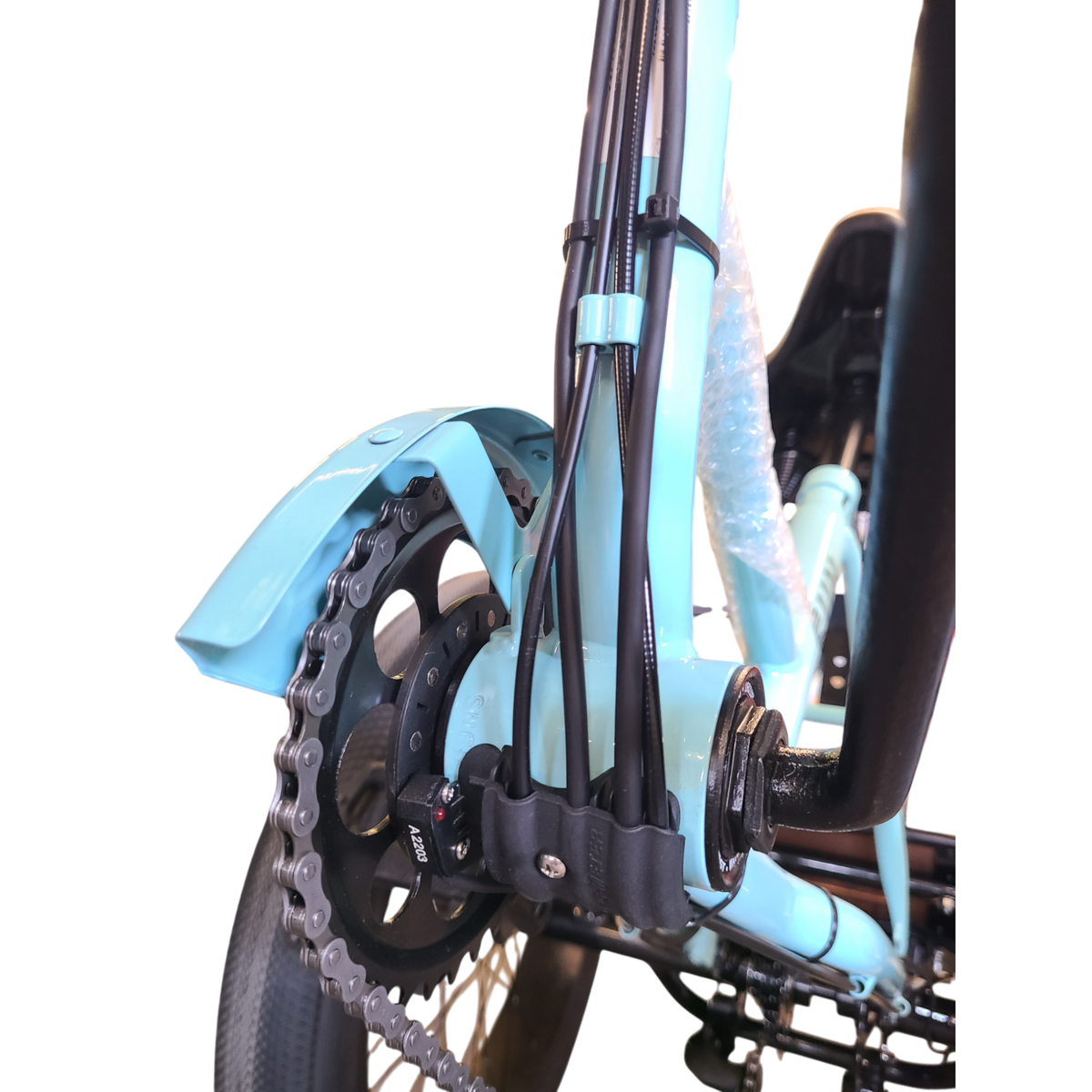

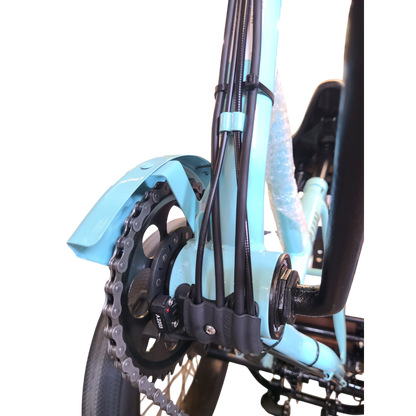

• Cadence Sensor: External cadence sensor and magnet disc for straightforward pedal-assist operation
• Torque Sensor + Crank Conversion Kit: SINET™ 68 mm square-taper bottom bracket torque sensor, bottom bracket adapter, three-piece cranks, pedals, and required SINET™ extension cable

Cadence Sensor

The cadence sensor detects crank rotation and activates pedal assistance according to the assist level selected on the LCD. This is the simpler installation option and is recommended for most DIY Baja conversions.

• External cadence-sensing system
• Detects crank rotation
• Does not measure rider force
• No crank-conversion kit required
• Recommended for riders who want the simplest installation

Torque Sensor + Crank Conversion Kit

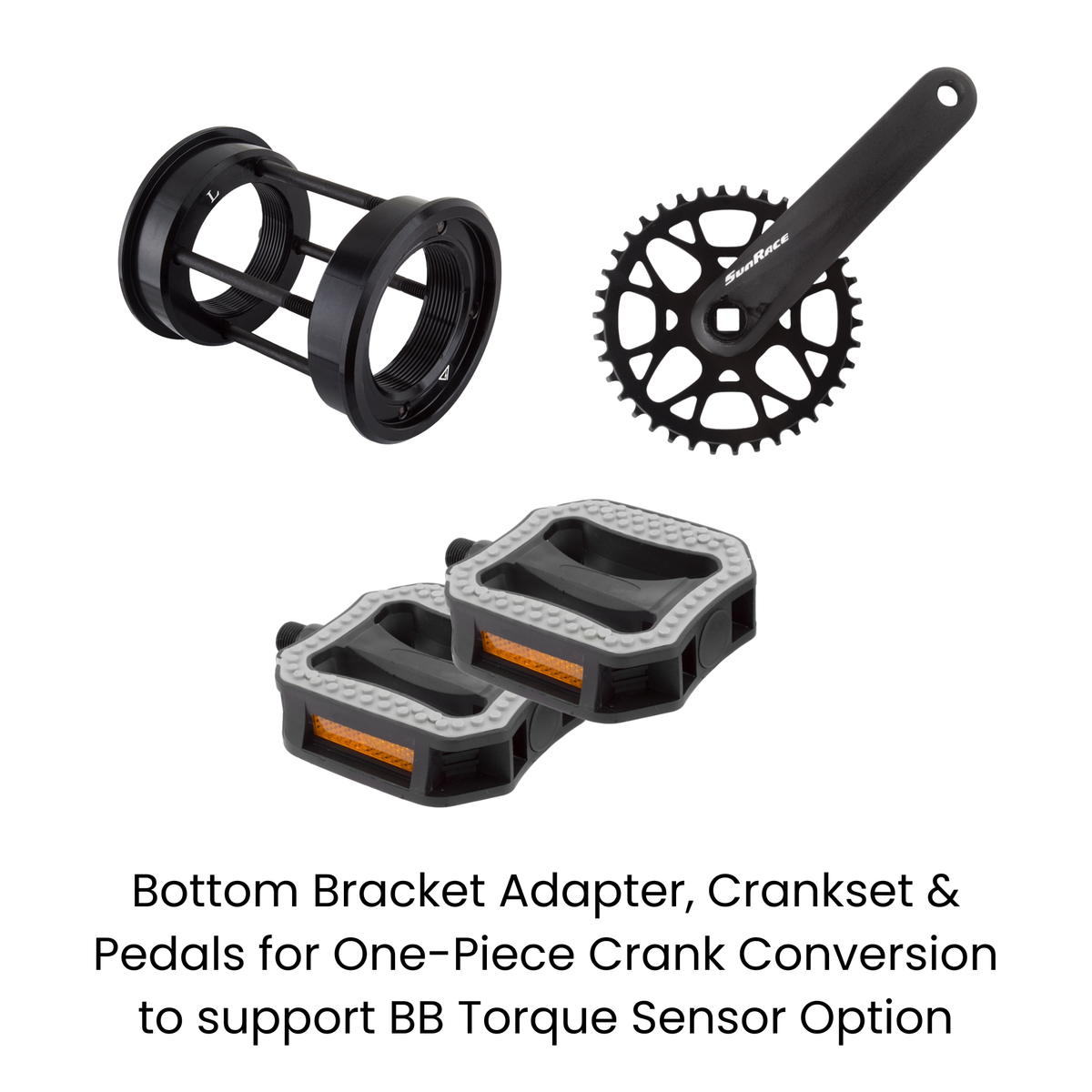

The Baja uses a one-piece crank configuration that is not directly compatible with the SINET™ 68 mm square-taper bottom bracket torque sensor. Selecting the Torque Sensor + Crank Conversion Kit provides the additional components required to convert a compatible Baja bottom bracket to a three-piece crank configuration and install the SINET™ torque sensor.

• SINET™ 68 mm square-taper bottom bracket torque sensor
• Bottom bracket adapter
• Three-piece crankset
• Pedals
• Required SINET™ extension cable
• Measures rider pedaling force
• Provides smooth, proportional pedal assistance

• Quiet, efficient sine-wave motor control
• Integrated controller housed in the battery cradle
• 3.5" full-color LCD with USB charging port
• Matched waterproof electrical connectors
• Cadence and torque-sensing pedal-assist compatibility
• Throttle-on-demand
• Motor cutoff through both locking e-brake levers
• Cleaner installation with fewer external components

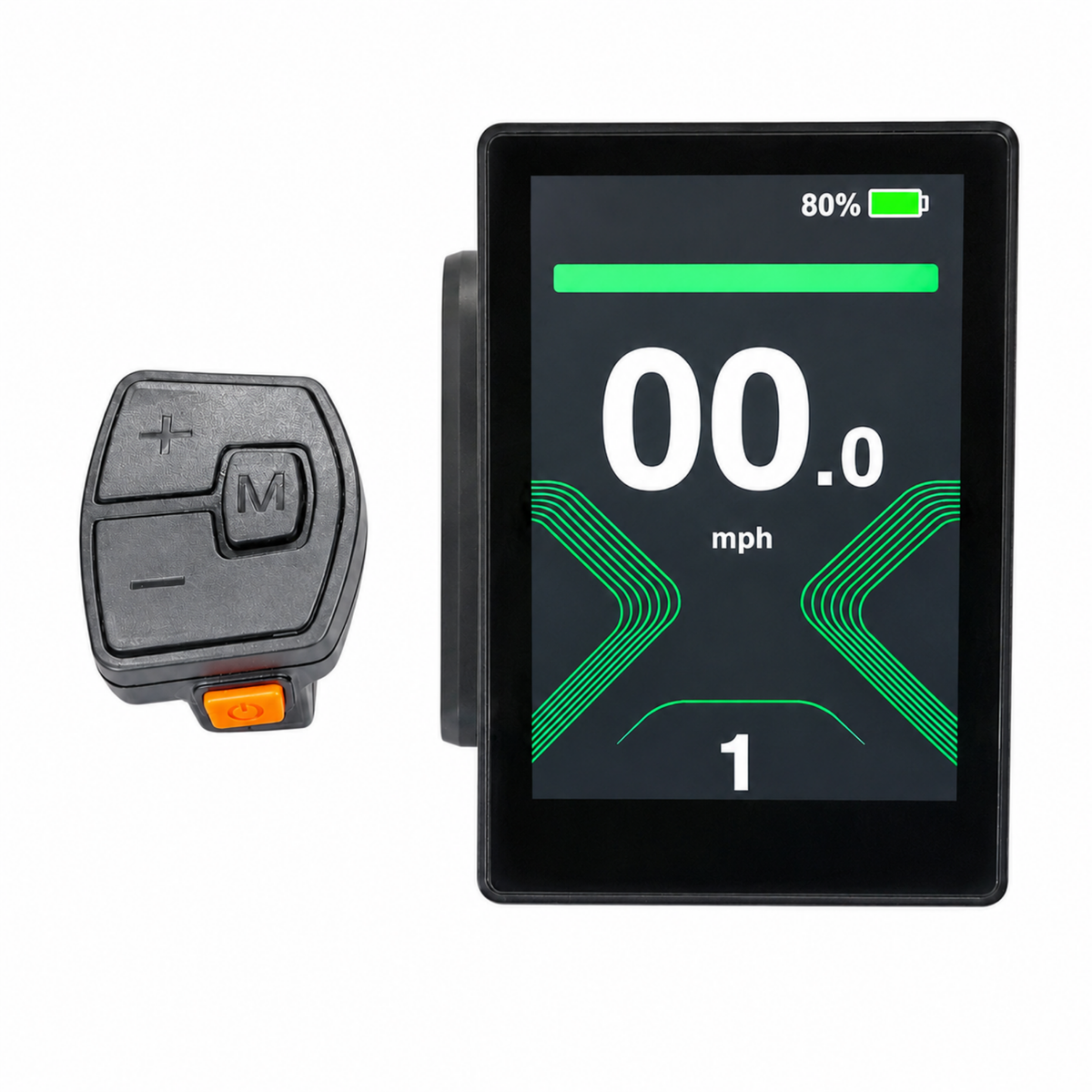

The included SINET™ 3.5" full-color LCD provides ride information, system setup, diagnostics, and programming controls. A Topeak handlebar extender is included with the Baja system to provide a practical display mounting location.

• 3.5" full-color display
• USB charging port
• Battery voltage and level display
• Current speed
• Trip meter and odometer
• Pedal-assist level selection
• Walk-assist mode
• Error diagnostics
• Advanced programming menu

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, display operation, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD Quick-Start Guide (PDF)

• Application: Sun Baja Trike
• System Type: Model-specific front-wheel electric conversion system
• Nominal Motor Power: 500W
• System Voltage: 48V
• Motor Type: Brushless front hub motor
• Front Wheel: 24" fat-tire configuration
• Controller: Integrated SINET™ sine-wave controller housed in battery cradle
• Battery: 48V 15Ah lithium-ion battery included
• Charger: 3A smart charger included
• Display: SINET™ 3.5" full-color LCD with USB charging port
• Display Mount: Topeak handlebar extender included
• Throttle: Thumb throttle included
• Pedal Assist: Cadence Sensor or Torque Sensor + Crank Conversion Kit
• Wheel Build: USA hand-built
• Spokes: Heavy-duty stainless steel

This system includes the current E-BikeKit 48V 15Ah lithium-ion battery, integrated SINET™ controller cradle, matching 3A charger, and Baja-specific rear battery mounting hardware.

• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: Approximately 720Wh
• Cell Configuration: 21700 cells, 13S3P
• Maximum Continuous Discharge: 30A
• BMS Protection Current: 30A
• Maximum Charge Voltage: 54.6V
• BMS Low-Voltage Protection: 36V
• Battery-to-Cradle Interface: Four-blade contact system
• Controller: Integrated into battery cradle
• Estimated Range: Approximately 20–40 miles depending on rider weight, terrain, speed, pedal input, assist level, temperature, and total load
• Charger: 3A smart charger included
• Charge Time: Approximately 5 hours
• Expected Life: Approximately 400–500 charge cycles

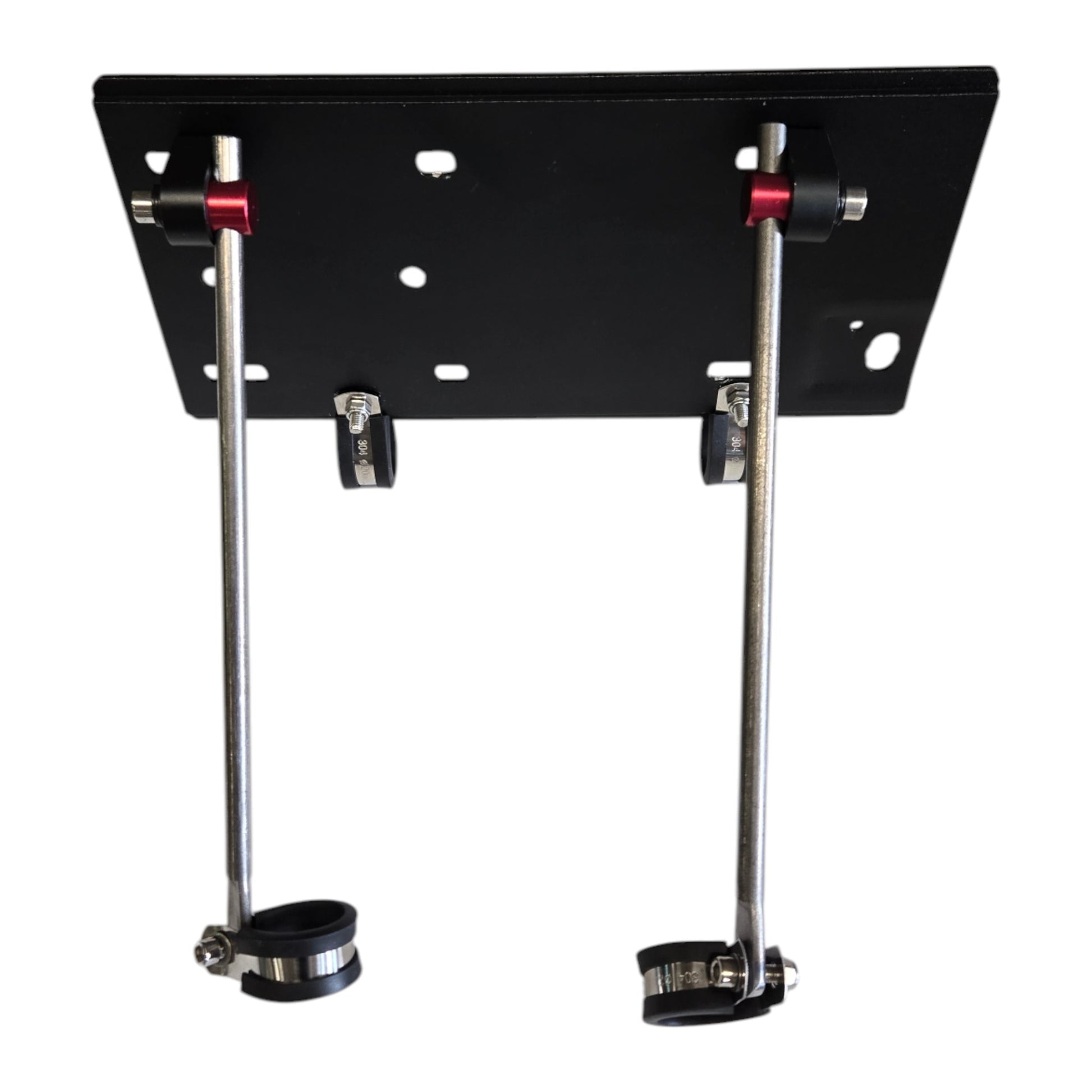

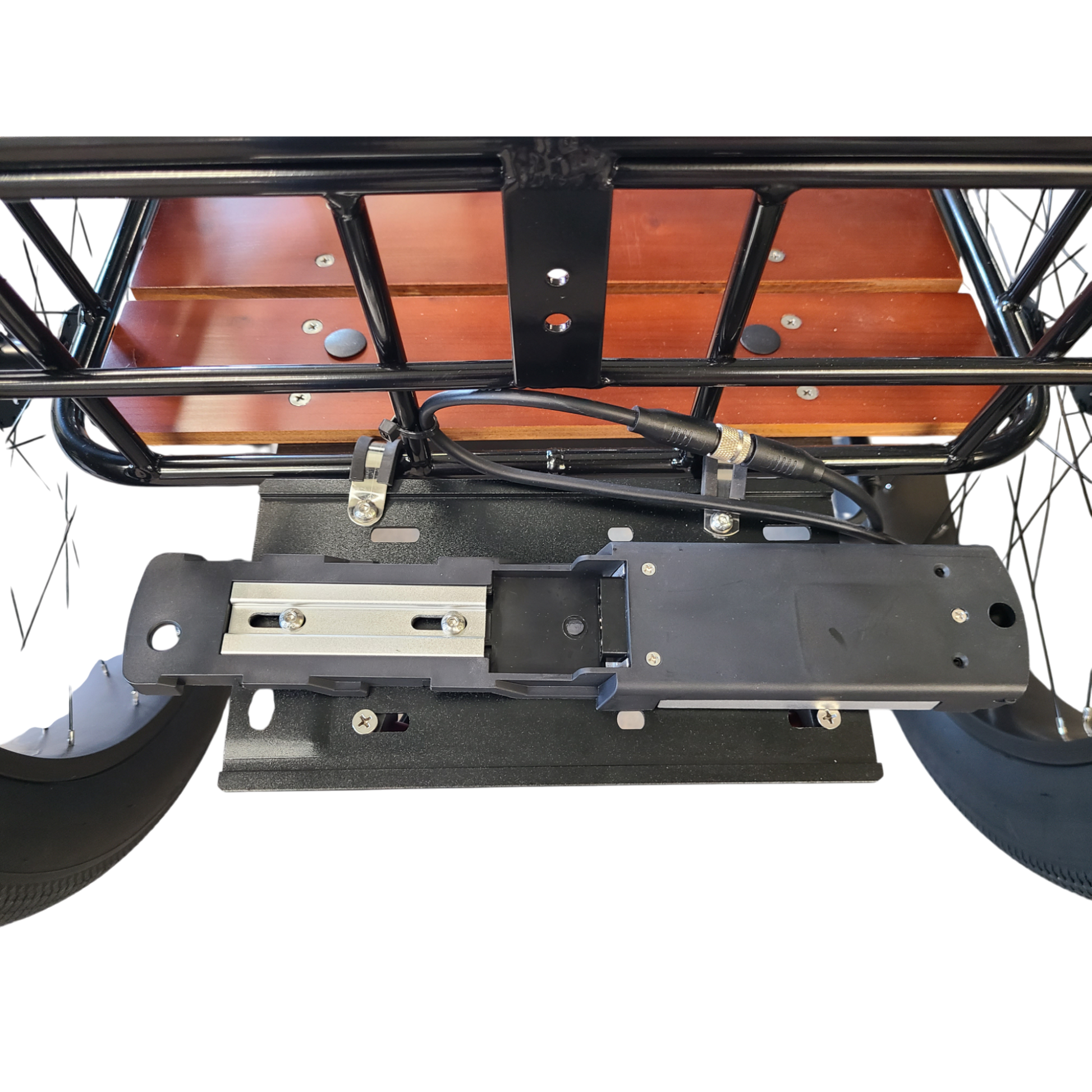

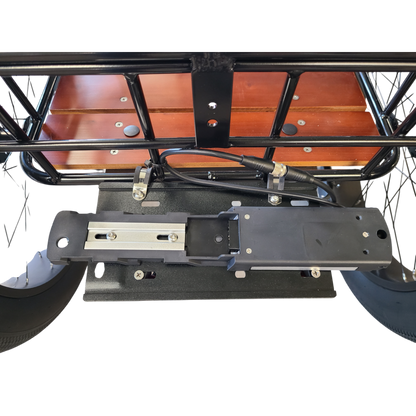

Behind-the-Basket Mount: The Baja system includes a dedicated support structure and mounting plate that positions the SINET™ battery/controller cradle behind the rear basket. The cradle is fastened to the supplied plate, creating a secure mounting location while preserving normal basket use.

No separate universal battery mount is required when using the supplied Baja-specific mounting hardware as intended.

View the 48V 15Ah Battery Dimensional Drawing (PDF)

This conversion system is configured specifically for the Sun Baja Trike. The supplied wheel, display-mounting solution, battery mounting hardware, and conversion components are selected around the Baja platform.

Before ordering, confirm:

• You have the compatible Sun Baja Trike configuration
• The front fork and dropouts are in safe operating condition
• The rear basket area is available for the supplied battery mounting system
• You select the pedal-assist option appropriate for your installation ability

If you are unsure whether your Baja configuration is compatible, contact E-BikeKit before ordering.

This is a model-specific conversion system, but installation still requires mechanical bicycle work and proper electrical-component mounting and routing.

• Install the Baja-specific motor wheel into the front fork
• Install the supplied torque arm(s) and properly secure axle hardware
• Install the Baja-specific behind-the-basket battery support and mounting plate
• Secure the SINET™ battery/controller cradle to the mounting plate
• Install the 48V 15Ah battery into the cradle
• Install the Topeak handlebar extender and SINET™ LCD
• Install the thumb throttle and locking e-brake levers
• Install the selected pedal-assist system
• Route all wiring away from steering components, tires, chain, and other moving parts
• Verify brake cutoffs, throttle operation, pedal assist, wheel clearance, steering movement, and display settings before riding

If you select the Torque Sensor + Crank Conversion Kit: installation additionally requires removal of the original one-piece crank, installation of the bottom bracket adapter and torque sensor, drilling the required 3/8-inch cable-routing hole, routing and protecting the torque-sensor cable, and installation of the supplied three-piece cranks and pedals.

Professional bicycle-shop installation is recommended if you are not experienced with cranksets, bottom brackets, hub-motor wheels, battery mounting, and electric conversion systems.
