Performance E-BikeKit™ Lithium - Front Wheel

• Best choice for top speed and performance (front wheel)
• Up to 26 mph top speed with a typical 15–30 mile range
• Pedal-assist (PAS) and throttle control
• 500W internally geared front hub motor with high peak output
• Standard 100mm front dropout compatibility

A high-performance front-wheel electric bike conversion system designed for riders who want speed, efficiency, and a lightweight feel without modifying the rear drivetrain.

High-Performance Front-Wheel E-BikeKit Conversion System

The E-BikeKit™ Front Geared Hub Motor Conversion Kit is ideal for riders who want a fast, efficient electric assist while keeping their rear wheel and drivetrain unchanged.

This system uses a 500W internally geared hub motor with a 5:1 planetary reduction and internal clutch. The clutch provides zero drag when pedaling without power, while the geared design delivers excellent torque, strong hill-climbing ability, and high overall efficiency.

Compared to direct-drive motors, the geared design is lighter, more responsive, and better suited to stop-and-go riding, making it an excellent choice for performance-focused riders.

Front-wheel configuration: This system installs in a standard 100mm front fork and is compatible with disc-brake and non-disc configurations (selected at checkout).

Who is this kit for? Riders who want maximum performance, lighter weight, and higher cruising speeds without altering their rear drivetrain. Recommended for total system loads up to 300 lbs. Heavier applications should use a heavy-duty direct-drive system.

• Motor type: Internally geared front hub motor (with clutch)
• Nominal / peak power: 500W / >1000W @ 48V
• Top speed: Up to 26 mph
• Estimated range: 15–30 miles (terrain, rider input, and battery dependent)
• System voltage: 48V
• Maximum torque: 84 Nm @ 48V
• Front dropout spacing: 100 mm
• Total load limit: 300 lbs

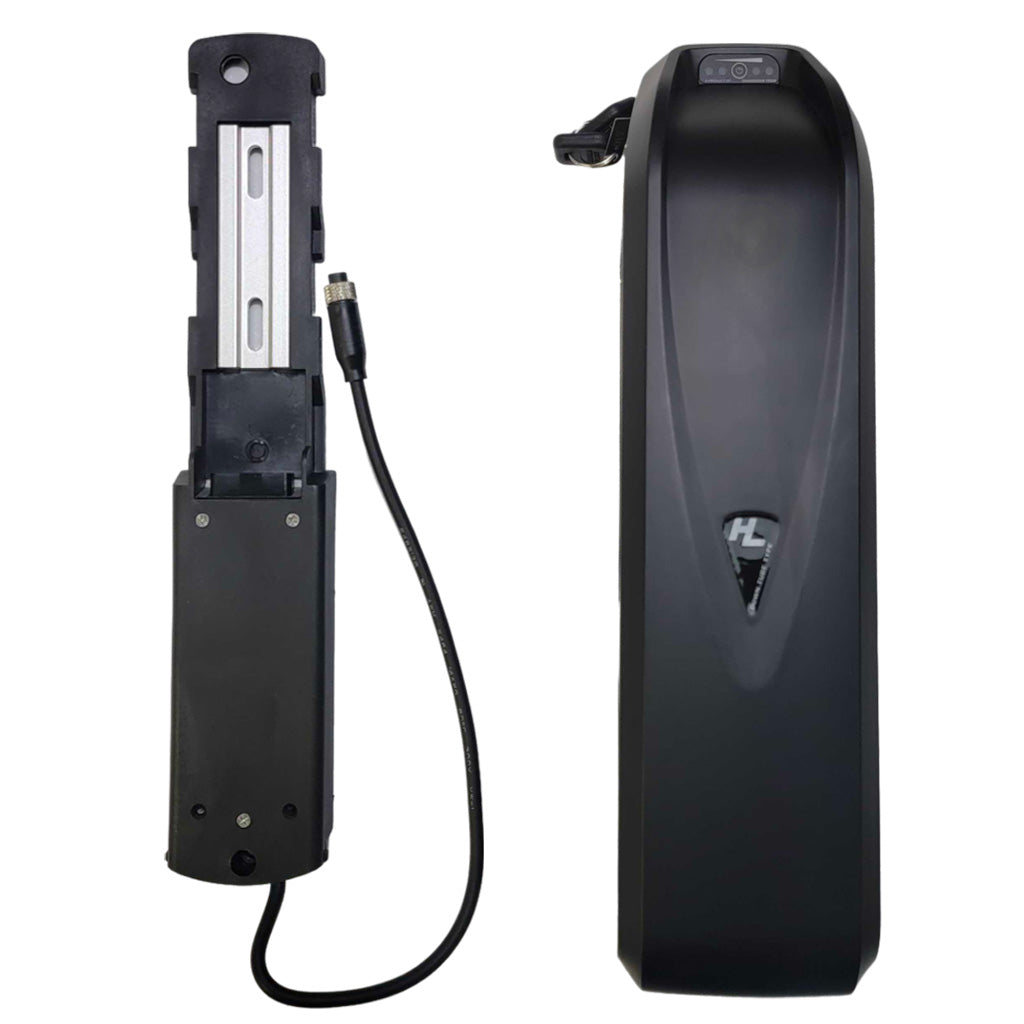

This system may be ordered with or without a battery. When included, the battery is a downtube-style 48V lithium-ion pack that includes its own mounting rail designed to attach using two standard water bottle bosses.

No additional battery mounting hardware is included or assumed. The battery may be mounted wherever the customer chooses, provided there is a secure surface where two mounting holes can be installed. Common mounting locations include the downtube, inside a frame triangle, on a custom plate, or inside a battery bag mounted to a rear rack.

If you are unsure about battery placement or frame compatibility, we strongly recommend contacting us before ordering.

• USA hand-built front motor wheel (configured to your selections)
• 48V-compatible 22A / 12-FET controller
• Programmable LCD dashboard
• PAS split disc and left-side PAS sensor
• Thumb or split-twist throttle
• Left & right e-brake levers
• Main motor cable
• Accessory cable
• Battery wire harness (included only when no battery is ordered)
• Battery and charger (only when battery option is selected)
• Zip ties, C-washers, and torque arms

Learn more: Top 25 Frequently Asked Questions

Questions? Call us toll-free at 1-866-882-3245, Monday–Friday, 9am–5pm EST, or email support@ebikekit.com.

Battery shipping: When included, lithium-ion batteries ship separately via FedEx Hazmat and may require a delivery signature. It is normal for components to arrive in multiple shipments.
