Electric Trike Conversion System – 48V 15Ah Battery

• Complete SINET™ front-wheel tricycle conversion system with 48V 15Ah lithium-ion battery included
• 500W nominal front hub motor with smooth sine-wave motor control
• Standard 100 mm front dropout spacing
• Choose a cadence sensor or Torque Sensor + Crank Conversion Kit
• 3.5" full-color SINET™ LCD with USB charging port, diagnostics, and programming
• USA hand-built front motor wheel with 12-gauge stainless steel spokes and double-wall aluminum rim
• Thumb throttle and locking e-brake levers included

The E-BikeKit Electric Trike Conversion System is configured for compatible traditional upright adult tricycles. The front-wheel layout leaves the tricycle's rear axle and drivetrain unchanged while adding smooth electric assist, throttle control, and your choice of cadence or torque-sensing pedal assist.

Electric Trike Conversion System – 48V 15Ah Battery

This current-generation E-BikeKit system replaces the legacy E-TrikeKit electronics with the latest SINET™ conversion platform. It is intended for compatible conventional upright adult tricycles using a standard 100 mm conventional slotted front fork.

The system uses a 500W nominal front hub motor. Because the motor is installed in the front wheel, the tricycle's existing rear axle, rear wheels, chain, and drivetrain remain unchanged.

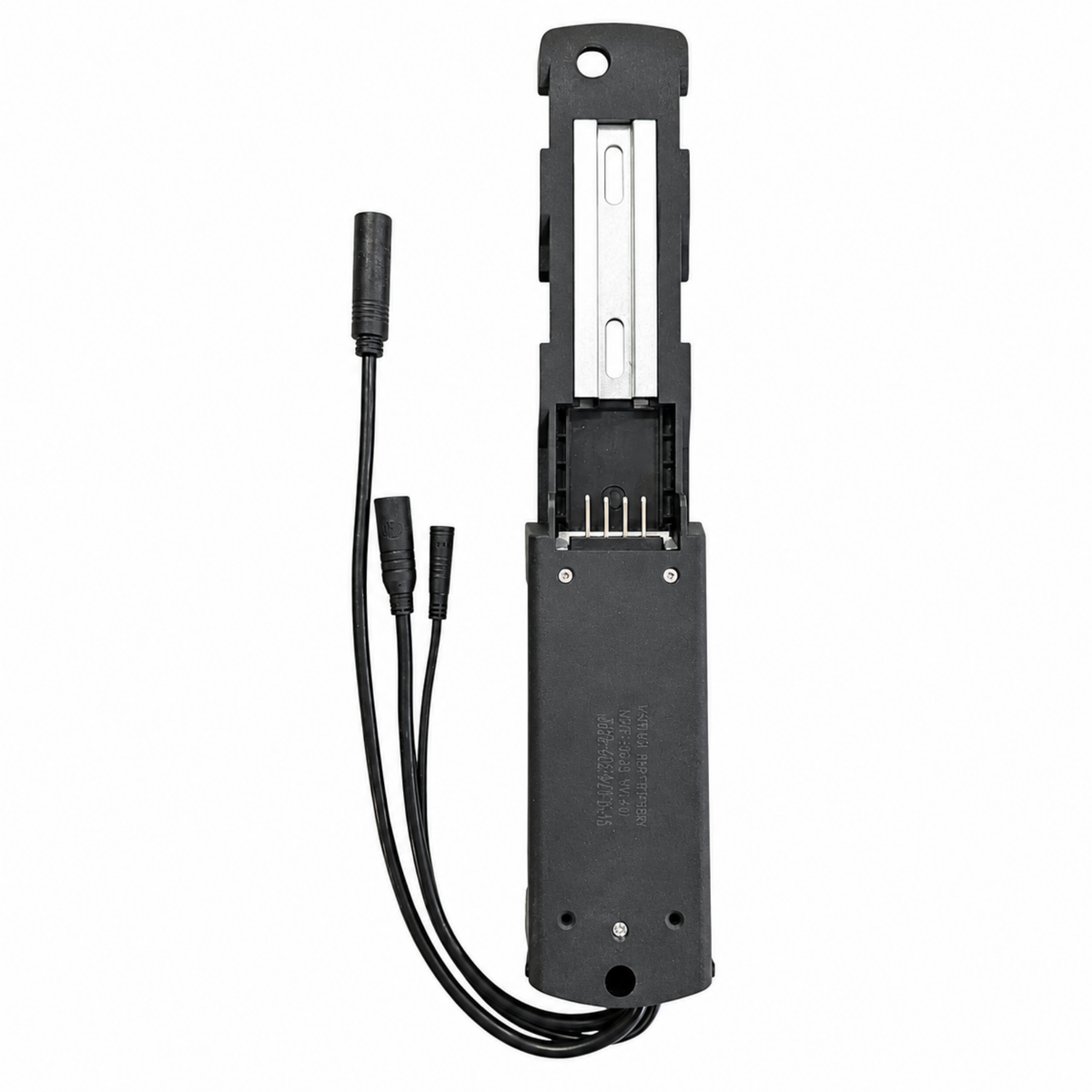

The SINET™ sine-wave controller is integrated into the battery cradle, reducing external components and creating a cleaner installation. The system includes the current E-BikeKit 48V 15Ah lithium-ion battery and matching 3A charger.

Ordering is simple: select the front wheel size that matches your tricycle and choose either the Cadence Sensor or Torque Sensor + Crank Conversion Kit. Front dropout spacing is always 100 mm for this system.

• USA hand-built front hub motor wheel in the selected wheel size
• 48V 15Ah lithium-ion battery
• Integrated SINET™ sine-wave controller housed in the battery cradle
• Integrated SINET™ battery/controller cradle
• 3A smart charger
• SINET™ 3.5" full-color LCD with USB charging port

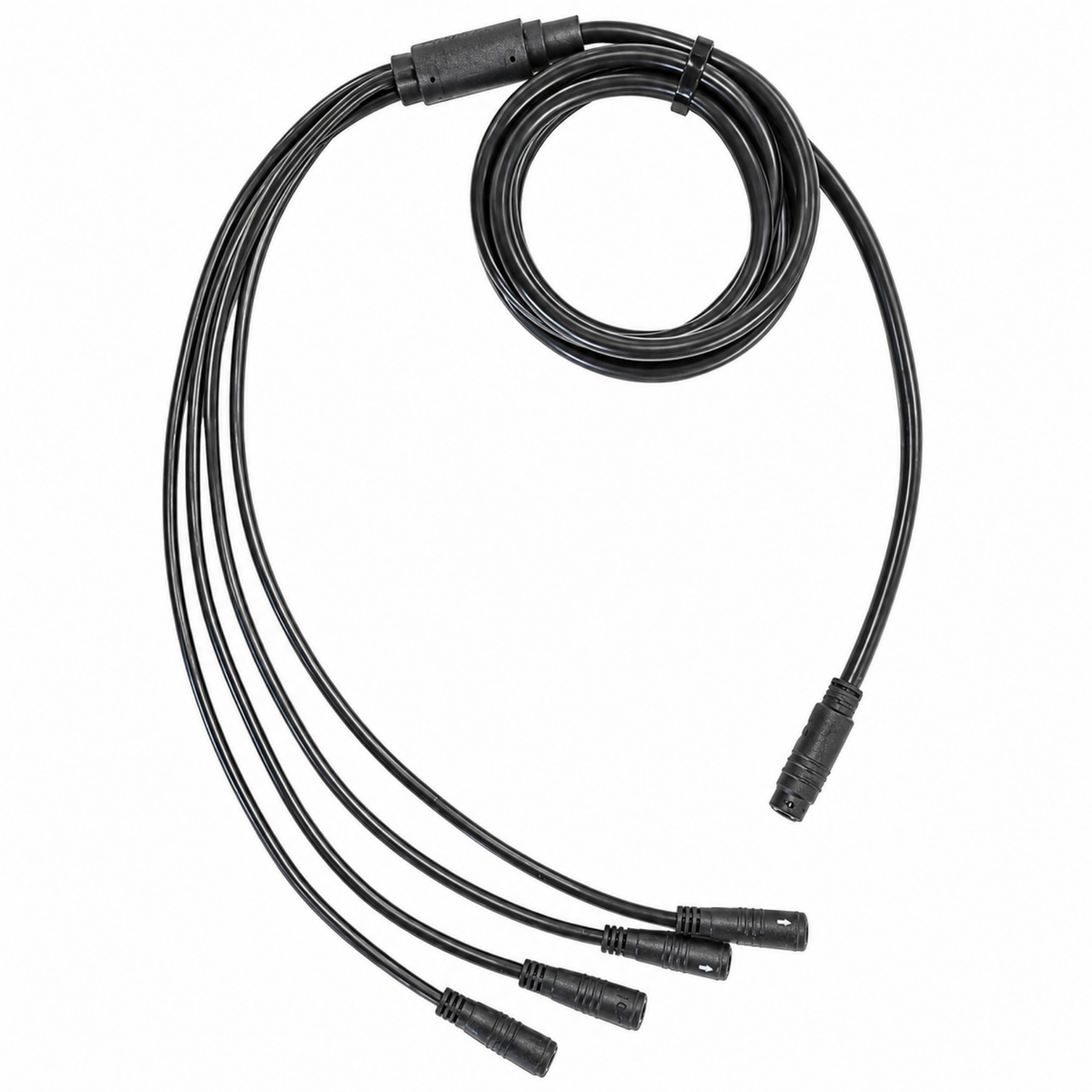

• SINET™ component wiring harness

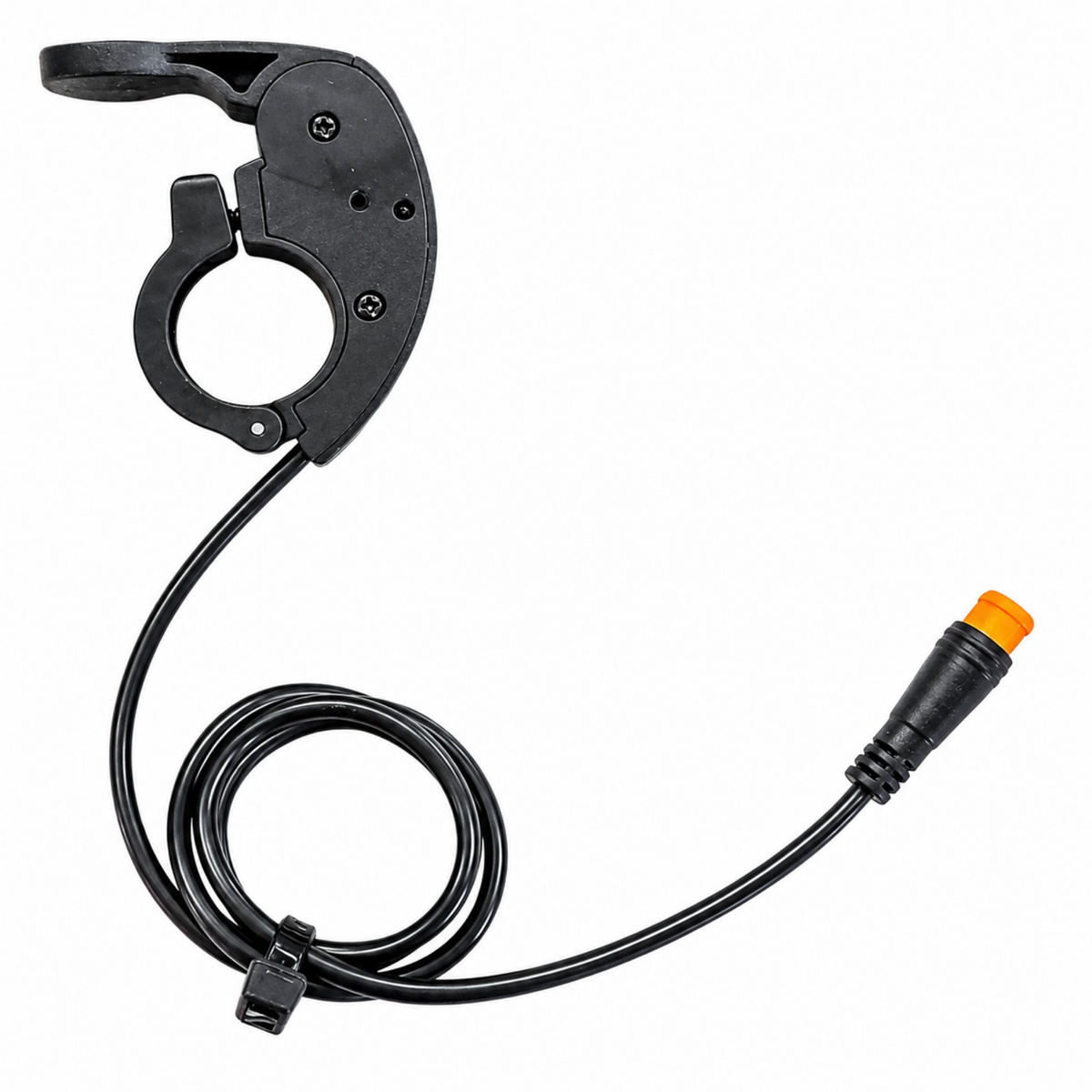

• Thumb throttle

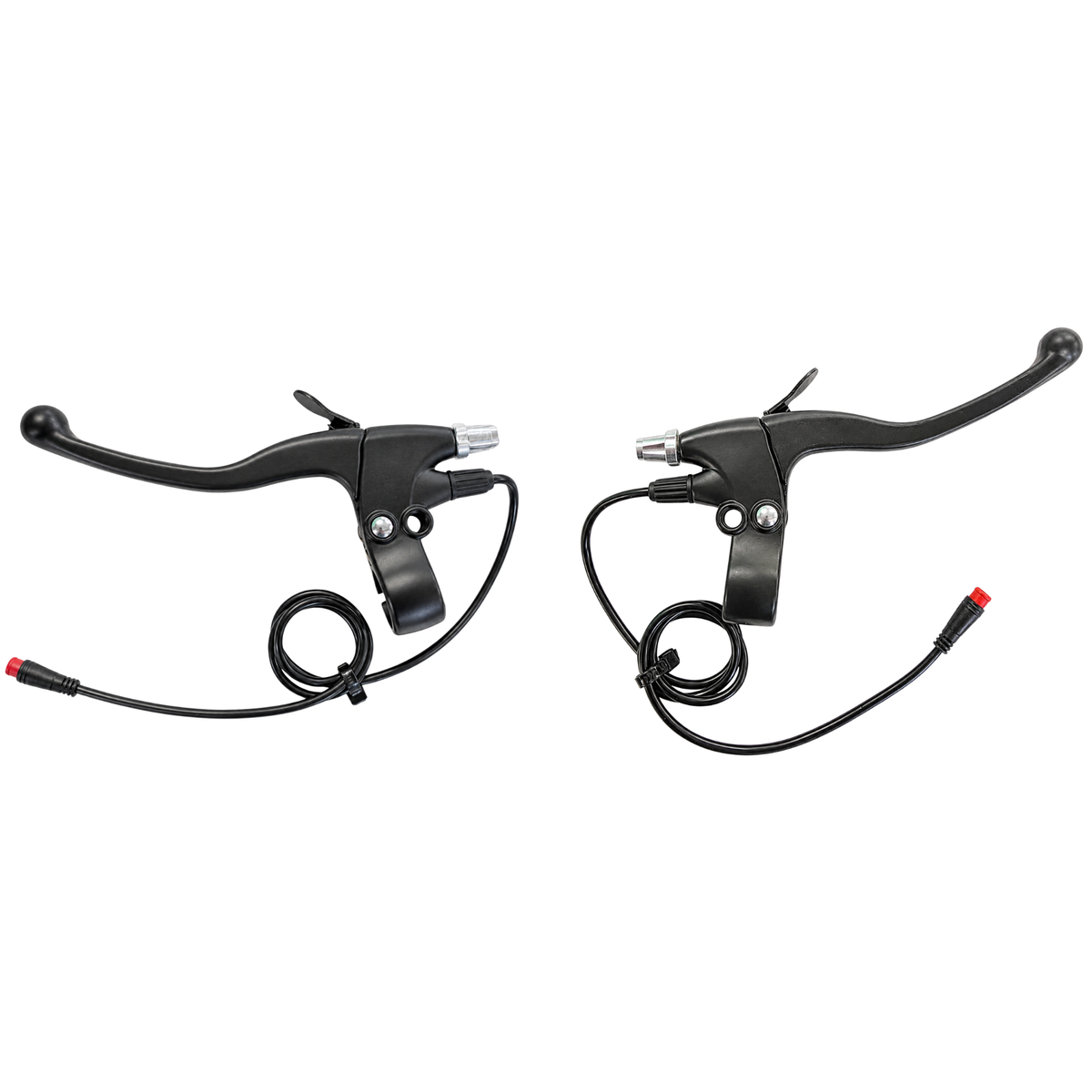

• Left and right mechanical e-brake levers with motor cutoff and parking lock

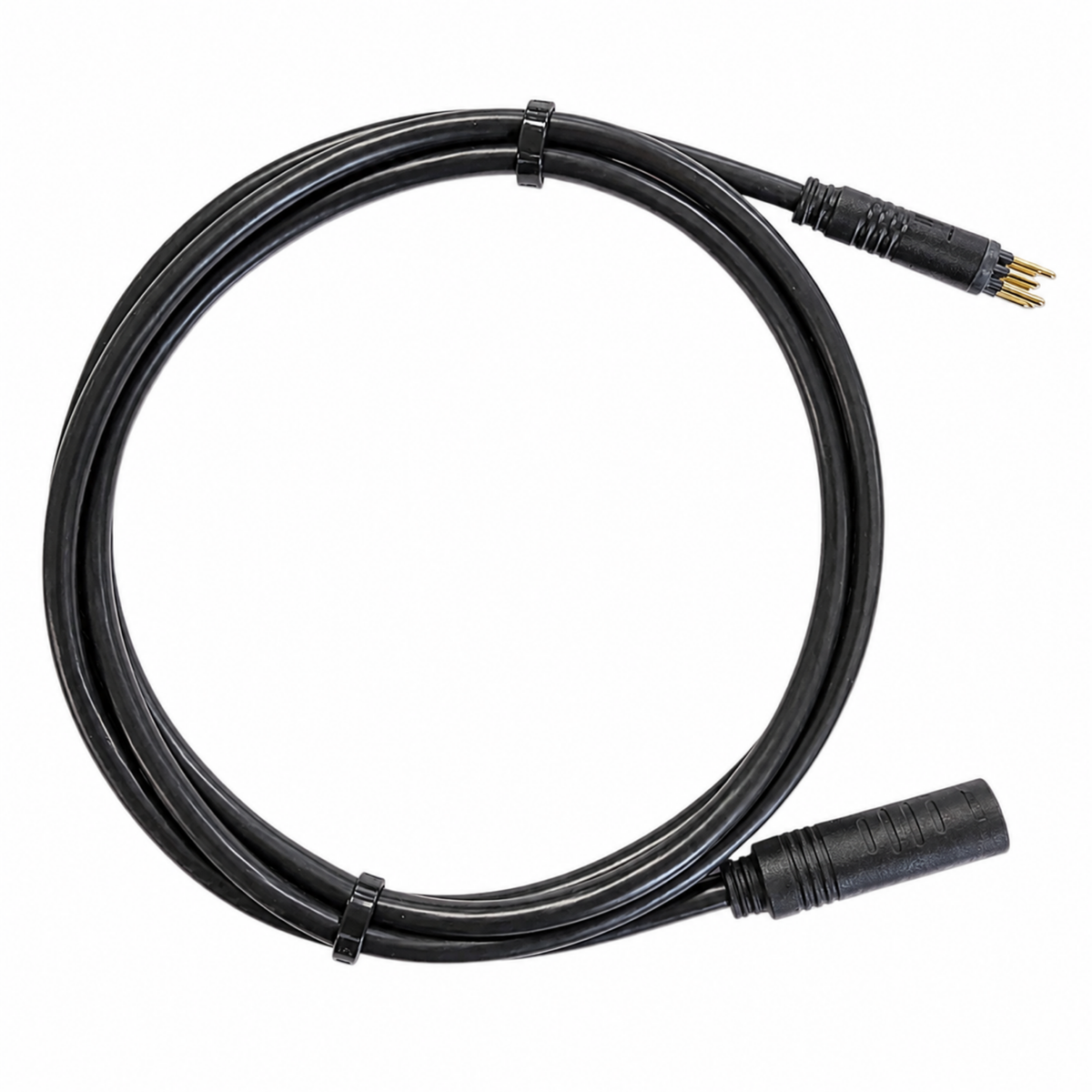

• Motor cable
• Torque arm(s), washers, zip ties, and conversion-system installation hardware as required

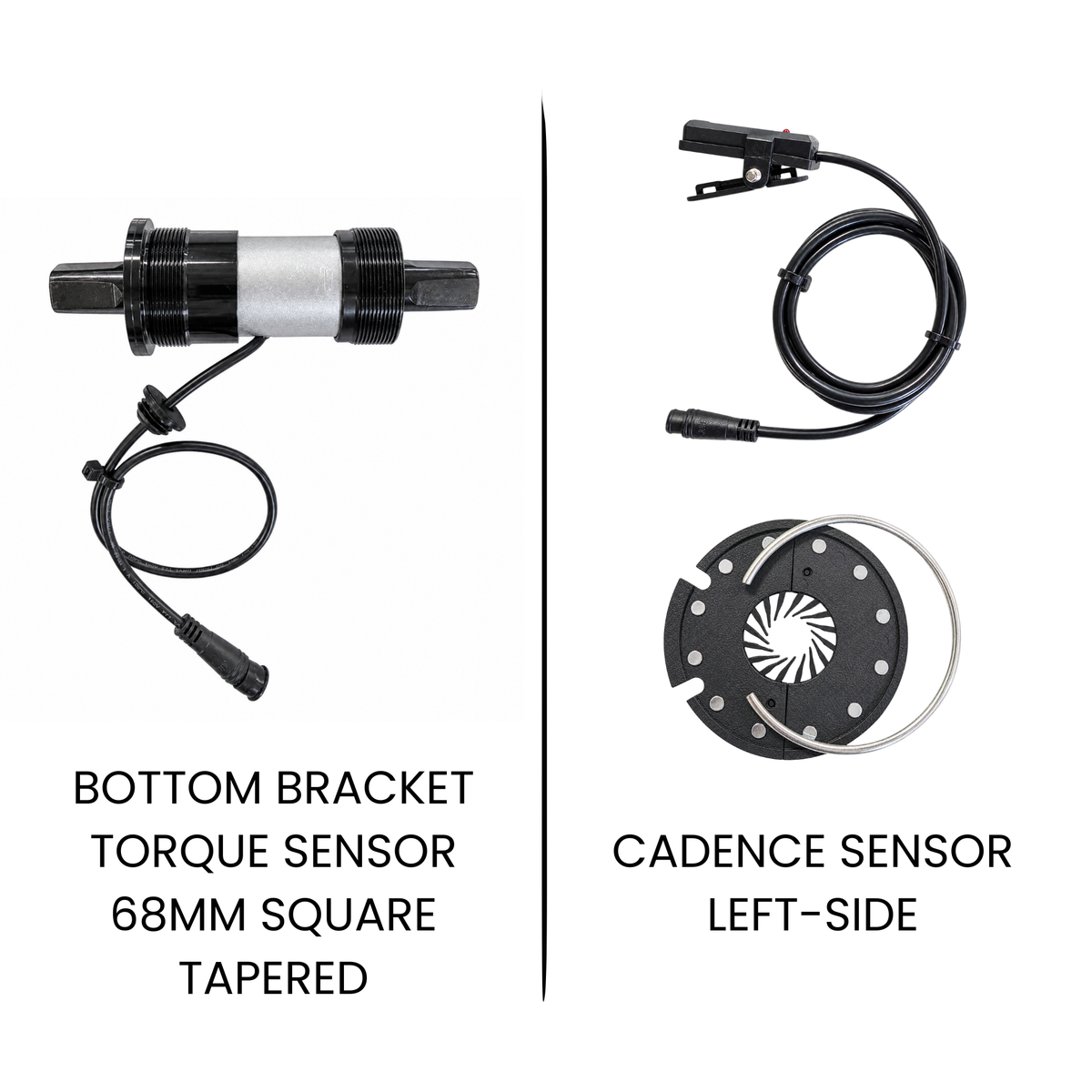

Your pedal-assist selection determines the components included:

• Cadence Sensor: Left-side external cadence sensor with 12-magnet split disc
• Torque Sensor + Crank Conversion Kit: SINET™ 68 mm square-taper bottom bracket torque sensor, bottom bracket adapter, three-piece cranks, pedals, and required SINET™ extension cable

• Quiet, efficient sine-wave motor control
• Integrated controller housed in the battery cradle
• 3.5" full-color LCD with USB charging port
• Matched waterproof electrical connectors
• Cadence and torque-sensing pedal-assist compatibility
• Throttle-on-demand
• Motor cutoff through both e-brake levers
• Cleaner installation with fewer external components

This system is designed around standard 100 mm conventional slotted front fork dropouts. The motor is installed in the front wheel, so the tricycle's rear axle and drivetrain remain unchanged.

• Front Dropout Spacing: 100 mm
• Wheel Size: Select the front wheel diameter that matches your tricycle
• Rear Drivetrain: Remains unchanged
• Fork Type: Conventional slotted front dropouts required

Check fitment before ordering. Front thru-axle forks are not compatible. If you are unsure whether your tricycle's front fork is suitable for a hub-motor conversion, contact E-BikeKit before ordering.

Cadence Sensor

The cadence sensor detects crank rotation and activates pedal assistance according to the assist level selected on the LCD. It is an external left-side sensor and is the simpler installation option for most conversions.

• Left-side external sensor
• 12-magnet split disc
• Detects crank rotation
• Simple installation on compatible tricycles
• Does not measure rider force

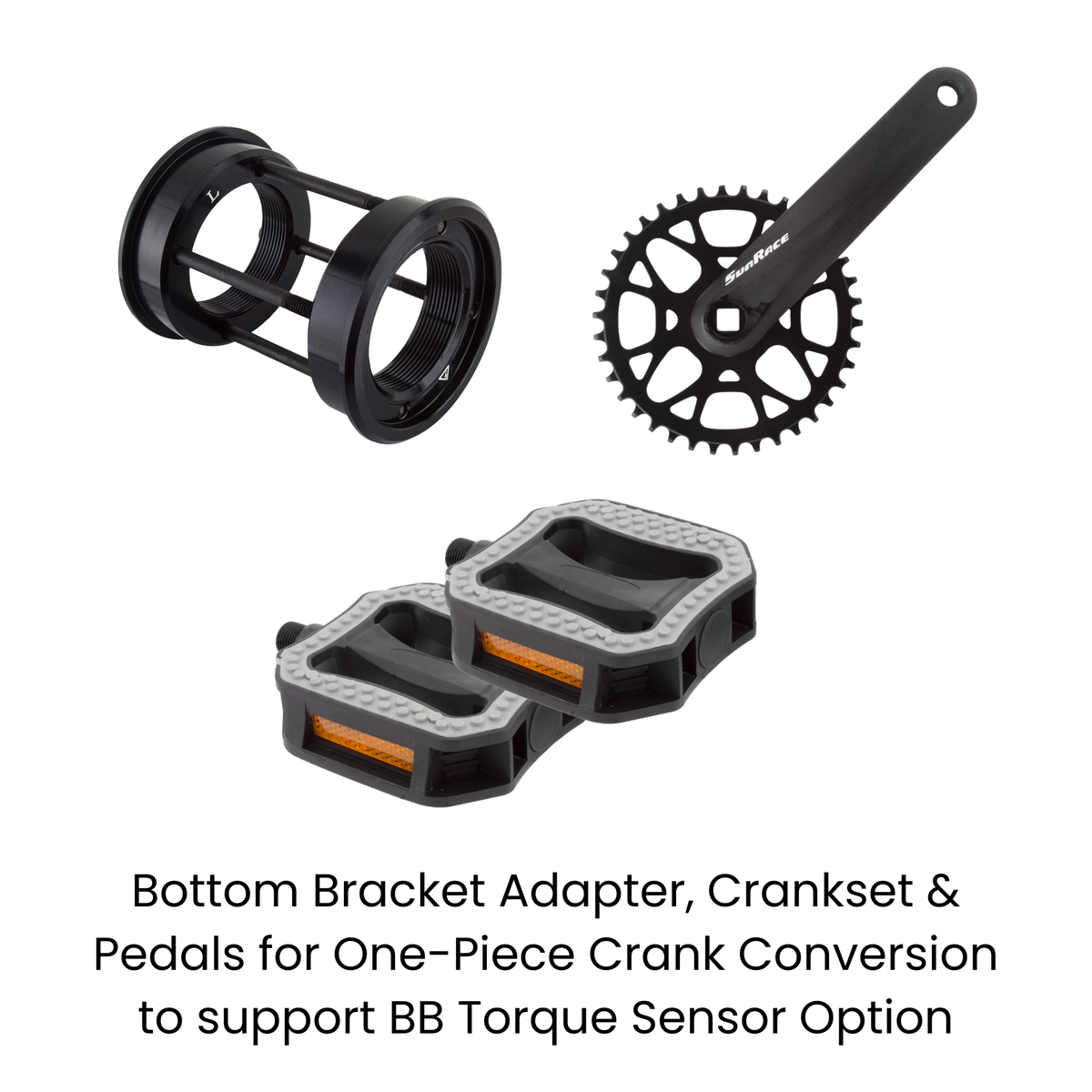

Torque Sensor + Crank Conversion Kit

Many traditional upright adult tricycles use a one-piece crank that is not directly compatible with the SINET™ 68 mm square-taper bottom bracket torque sensor. The Torque Sensor + Crank Conversion Kit provides the components needed to convert a compatible one-piece-crank tricycle to a three-piece crank configuration and install the SINET™ torque sensor.

• SINET™ 68 mm square-taper bottom bracket torque sensor
• Bottom bracket adapter for a compatible one-piece-crank frame
• Three-piece cranks
• Pedals
• Required SINET™ extension cable
• Measures rider pedaling force and provides smooth, proportional assistance
• Installation requires removal of the existing crank assembly and conversion to the supplied three-piece crank components
• Installation requires a protected 3/8-inch cable-routing hole through the bottom bracket shell for the torque-sensor cable and supplied grommet

Which should you choose? The Cadence Sensor is the simpler installation and does not require converting a compatible one-piece crank system to a three-piece crank. The Torque Sensor + Crank Conversion Kit provides a more natural, proportional response and includes the torque sensor, bottom bracket adapter, three-piece cranks, and pedals required for the conversion, but installation is substantially more involved.

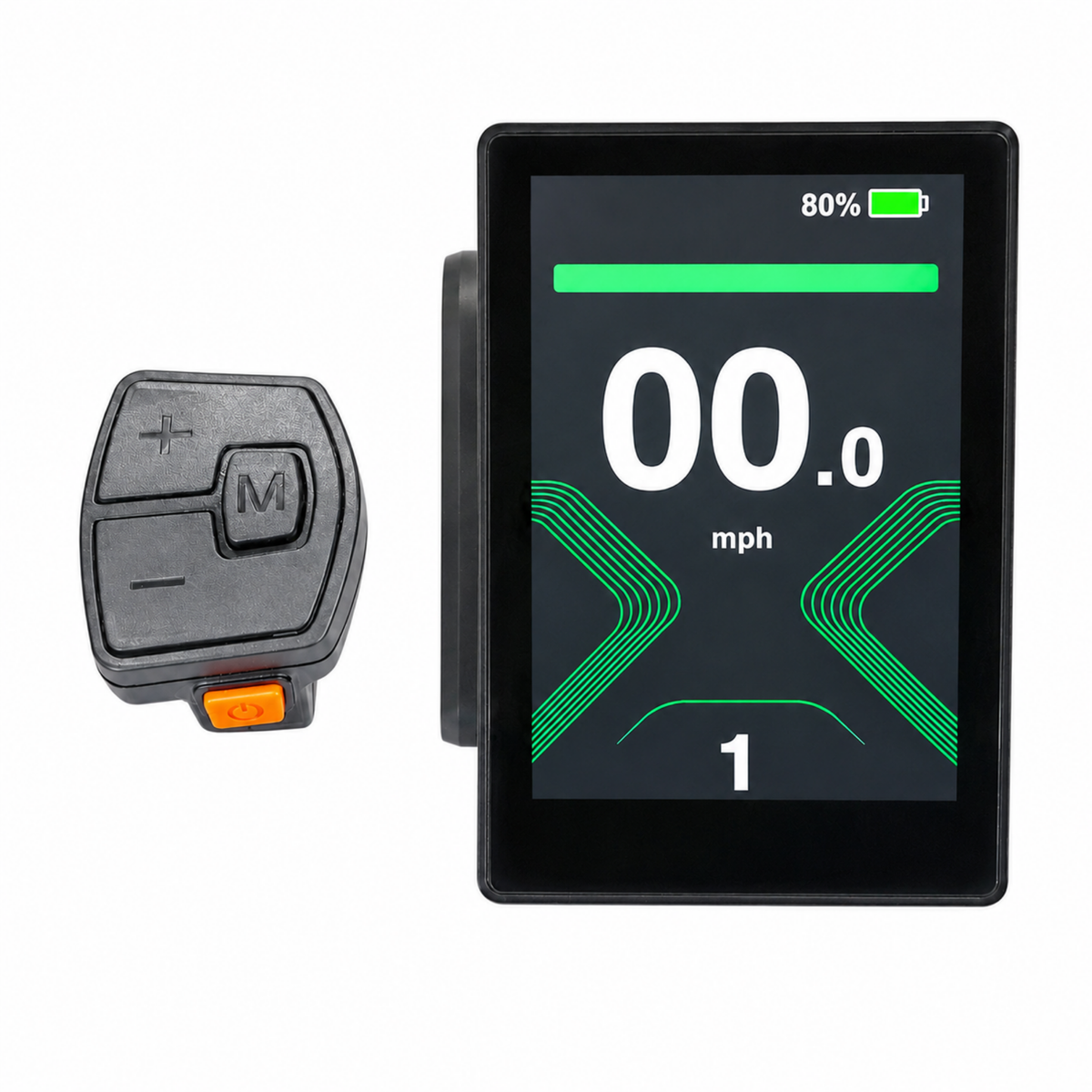

• 3.5" full-color display
• USB charging port
• Battery voltage and level display
• Current speed, trip meter, and odometer
• Pedal-assist level selection
• Walk-assist mode
• Error diagnostics
• Advanced programming menu

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, display operation, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD Quick-Start Guide (PDF)

• System Type: Front-wheel adult tricycle conversion system
• Nominal Motor Power: 500W
• System Voltage: 48V
• Motor Type: Brushless front hub motor
• Front Dropout Spacing: Standard 100 mm
• Controller: Integrated SINET™ sine-wave controller housed in battery cradle
• Battery: 48V 15Ah lithium-ion battery included
• Charger: 3A smart charger included
• Display: SINET™ 3.5" full-color LCD with USB charging port
• Throttle: Thumb throttle included
• Pedal Assist: Cadence Sensor or Torque Sensor + Crank Conversion Kit
• Wheel Build: USA hand-built
• Spokes: 12-gauge stainless steel
• Rim: Double-wall aluminum

This system includes the current E-BikeKit 48V 15Ah lithium-ion downtube battery, integrated SINET™ controller cradle, and matching 3A charger.

• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: Approximately 720Wh
• Cell Configuration: 21700 cells, 13S3P
• Maximum Continuous Discharge: 30A
• BMS Protection Current: 30A
• Maximum Charge Voltage: 54.6V
• BMS Low-Voltage Protection: 36V
• Battery-to-Cradle Interface: Four-blade contact system
• Estimated Range: Approximately 20–40 miles depending on rider weight, terrain, speed, pedal input, assist level, temperature, and total load
• Charge Time: Approximately 5 hours
• Expected Life: Approximately 400–500 charge cycles

Battery Mounting: The battery slides into and locks onto the included battery/controller cradle. The cradle has two mounting holes designed to work well with standard downtube water-bottle mounting bosses when the tricycle frame provides a suitable location.

A frame-specific battery mount is not included. The cradle may also be installed in another secure, structurally appropriate location where a suitable mounting surface can be provided, such as a suitable rear rack that can be safely drilled and securely fastened.

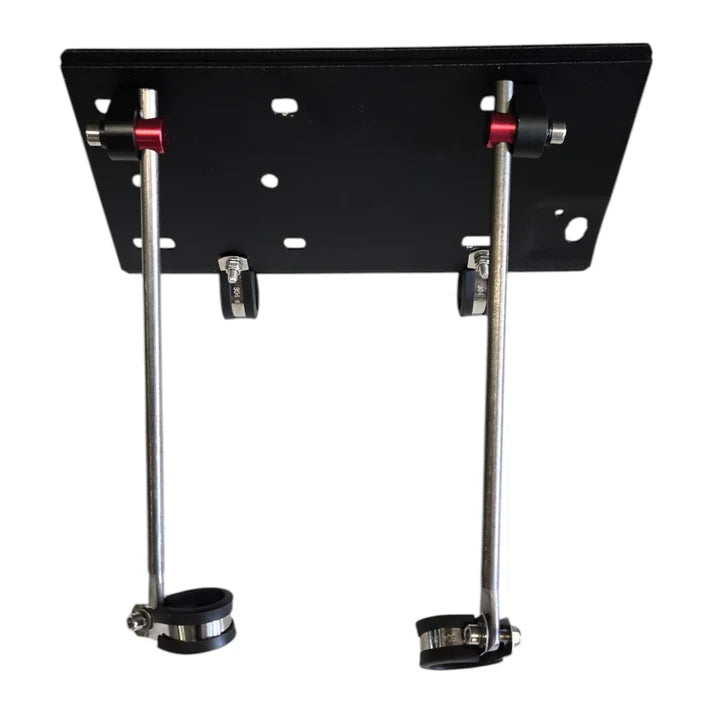

For many adult tricycles and recumbents, E-BikeKit also offers a Universal Recumbent Trike Downtube Battery Mount.

View the 48V 15Ah Battery Dimensional Drawing (PDF)

This system is intended for compatible traditional upright adult tricycles with standard 100 mm conventional slotted front fork dropouts.

Before ordering, confirm:

• Correct front wheel size
• Standard 100 mm front fork dropout spacing
• Conventional slotted front fork dropouts
• A suitable location to securely mount the battery/controller cradle
• A compatible one-piece-crank bottom bracket shell if selecting the Torque Sensor + Crank Conversion Kit

Not Compatible With:

• Front thru-axle forks
• Weak, damaged, or unsuitable front fork dropouts
• Forks that do not provide standard 100 mm dropout spacing
• Suspension forks not designed or approved for hub-motor installations
• Bottom bracket shells or crank configurations incompatible with the selected pedal-assist system or crank conversion components

If you're unsure about fitment, contact E-BikeKit before ordering.

Installing a front-wheel electric tricycle conversion system requires mechanical bicycle work as well as mounting and routing the electrical components. Professional bicycle-shop installation is recommended if you are not experienced with wheels, brakes, forks, battery mounting, and electric conversion systems.

• Install the motor wheel into standard 100 mm front fork dropouts
• Install the supplied torque arm(s) as required and properly tighten axle hardware
• Mount the integrated battery/controller cradle securely
• Install the 48V 15Ah battery into the cradle
• Install the LCD, thumb throttle, locking e-brake levers, and selected pedal-assist system
• If using the Torque Sensor + Crank Conversion Kit, remove the existing one-piece crank assembly, install the supplied bottom bracket adapter, torque sensor, three-piece cranks and pedals, and route the torque-sensor cable through the required 3/8-inch protected exit hole
• Route and secure all wiring away from moving parts, steering components, tires, chains, and sharp edges
• Verify brake cutoffs, throttle operation, pedal assist, wheel clearance, battery fitment, steering movement, and display settings before riding

Learn more: Top 25 Frequently Asked Questions

Questions? Call us toll-free at 1-866-882-3245, Monday–Friday, 9am–5pm EST, or email support@ebikekit.com.

Battery shipping: Lithium-ion batteries ship separately via FedEx Hazmat and may require a delivery signature. It is normal for the conversion system, battery, charger, or mounting components to arrive in multiple shipments or on different days.
