48v 15Ah Li-ion Downtube E-Bike Battery

• 48V 15Ah lithium-ion downtube battery — approximately 720Wh of energy for current E-BikeKit systems
• 21700 cell construction with 13S3P configuration
• 30A maximum continuous discharge for strong, dependable power delivery
• Downtube-style, key-lock mount for secure attachment and easy removal
• Current four-blade contact cradle for the battery-to-mount connection
• Includes 3-amp charger — ready to use out of the box
• Connector compatibility: Uses the current E-BikeKit 5-pin twist connector.
  Older controllers with a 2-prong male battery connector require a simple adapter.

The E-BikeKit 48V 15Ah battery combines high-capacity 21700 cells, strong discharge capability, and a removable locking case for dependable everyday use on compatible electric bikes and trikes.

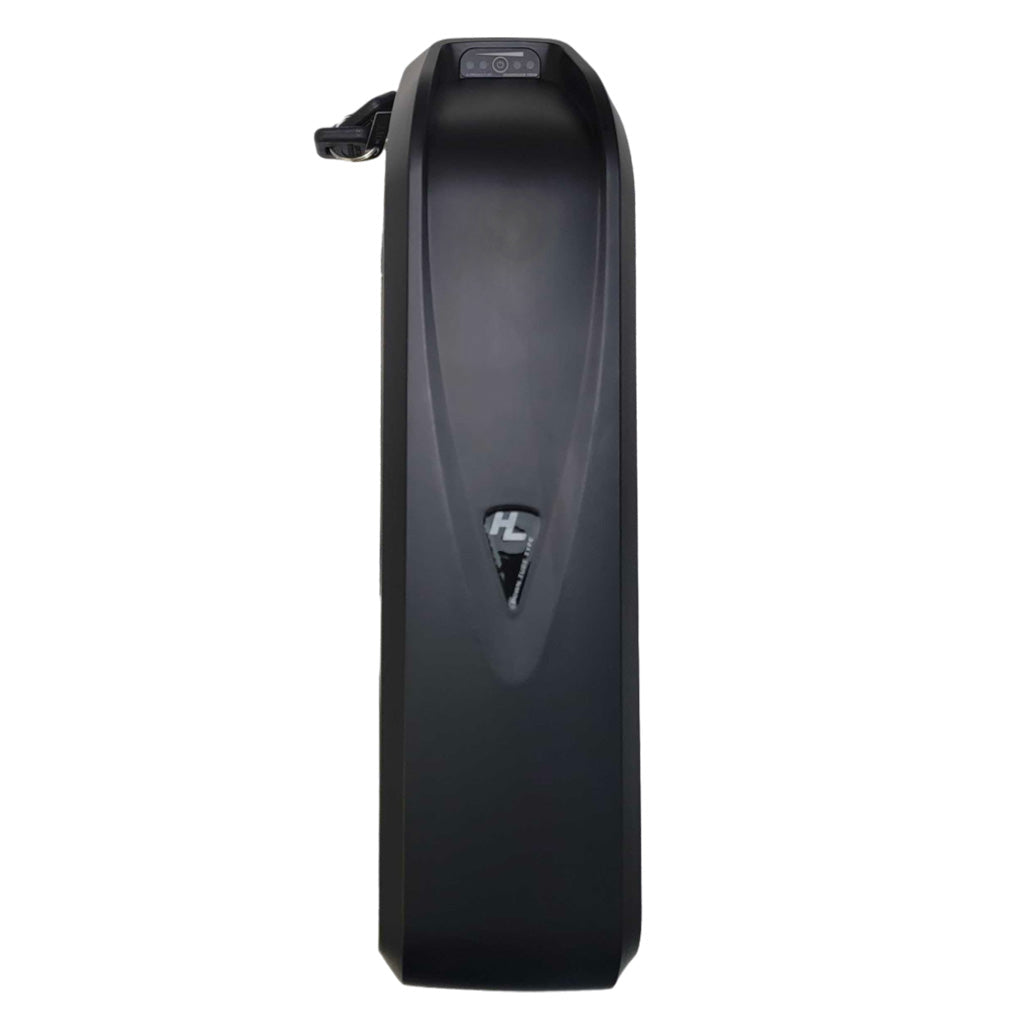

The E-BikeKit 48V 15Ah Li-Ion Downtube Battery Pack provides approximately 720Wh of energy in a compact, removable downtube-style case.

The updated battery uses 21700 lithium-ion cells in a 13S3P configuration and supports up to 30A continuous discharge, providing ample current capability for current E-BikeKit conversion systems.

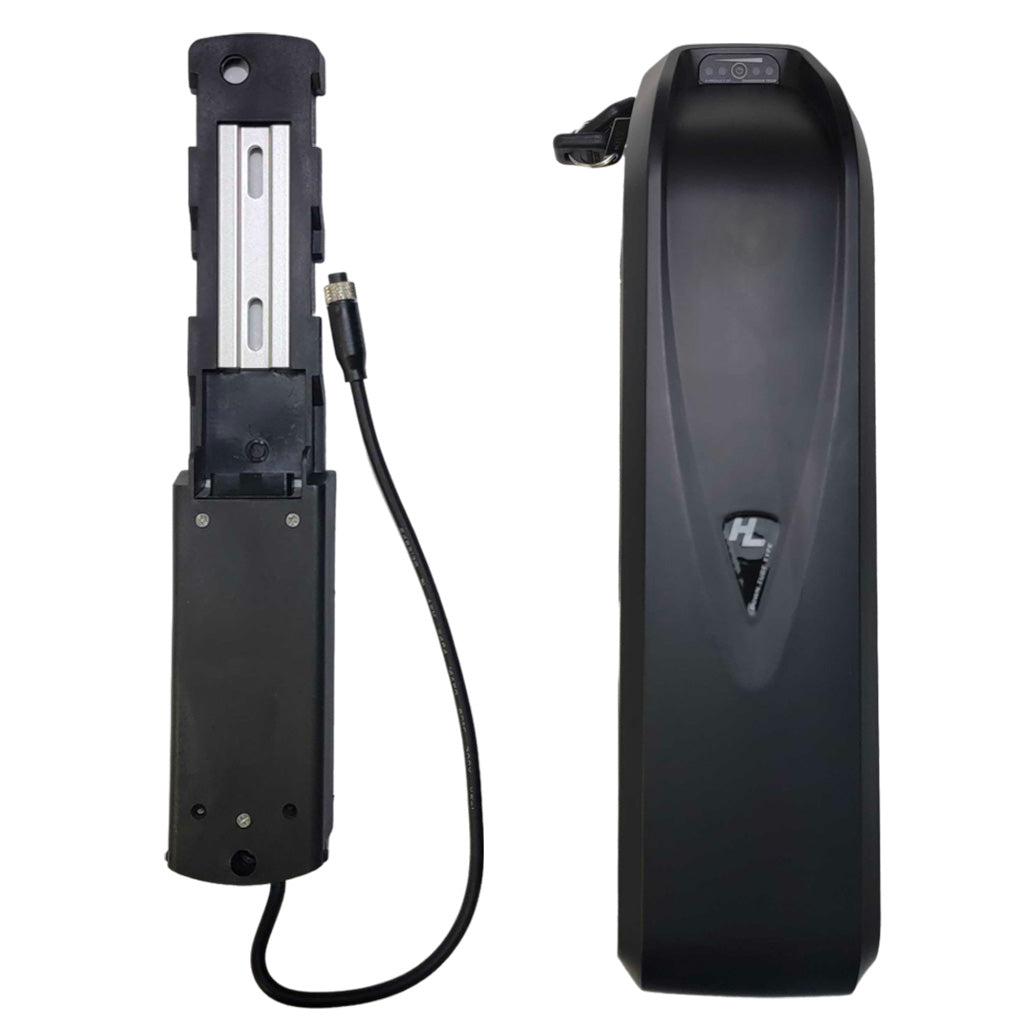

The battery slides into a four-blade contact cradle and locks securely into place with the supplied key. Four blade contacts on the underside of the battery mate with four electrical contacts in the cradle, providing the battery-to-system power connection.

The side-release design makes the battery easy to remove for charging, storage, or replacement.

Connector compatibility: The battery/cradle assembly uses the current E-BikeKit 5-pin twist connector for connection to the controller.

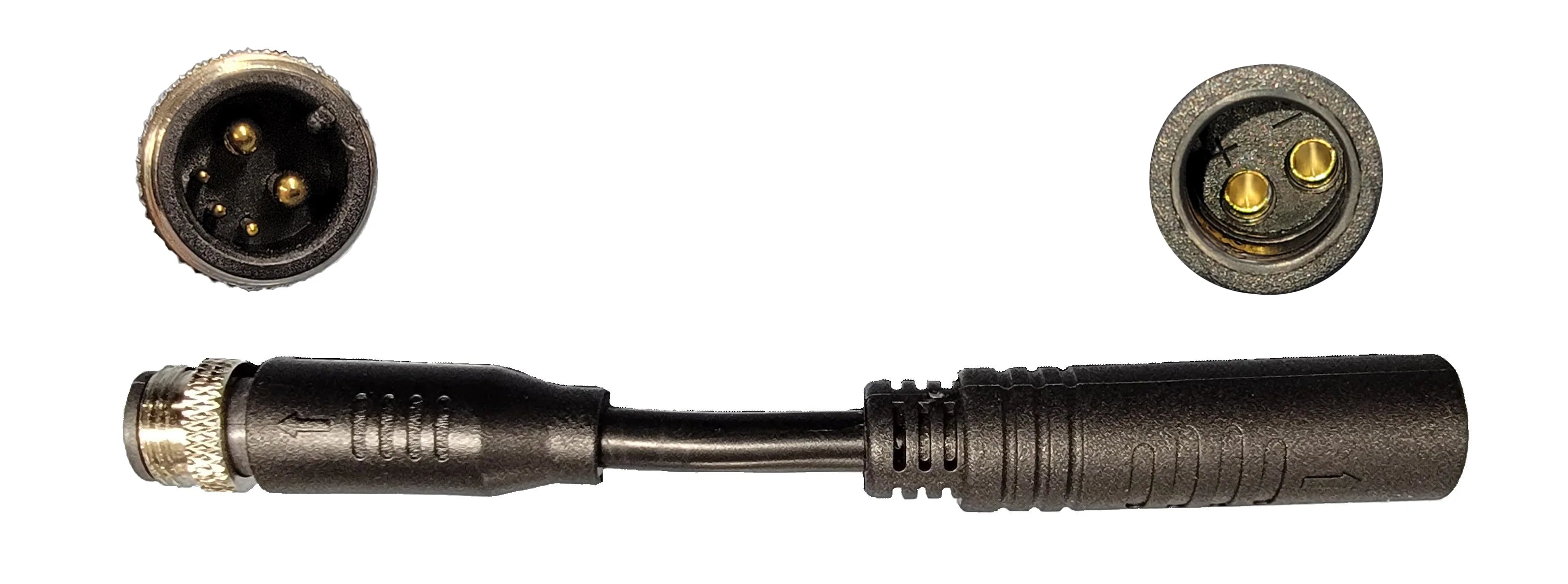

If your controller has an older 2-prong male battery connector, an adapter is required. Our team can help confirm compatibility before ordering.

Replacing an existing battery? In addition to checking the controller-side connector, confirm that your existing battery uses the same four-blade contact cradle. Older E-BikeKit batteries and mounting systems may use a different cradle/contact configuration.

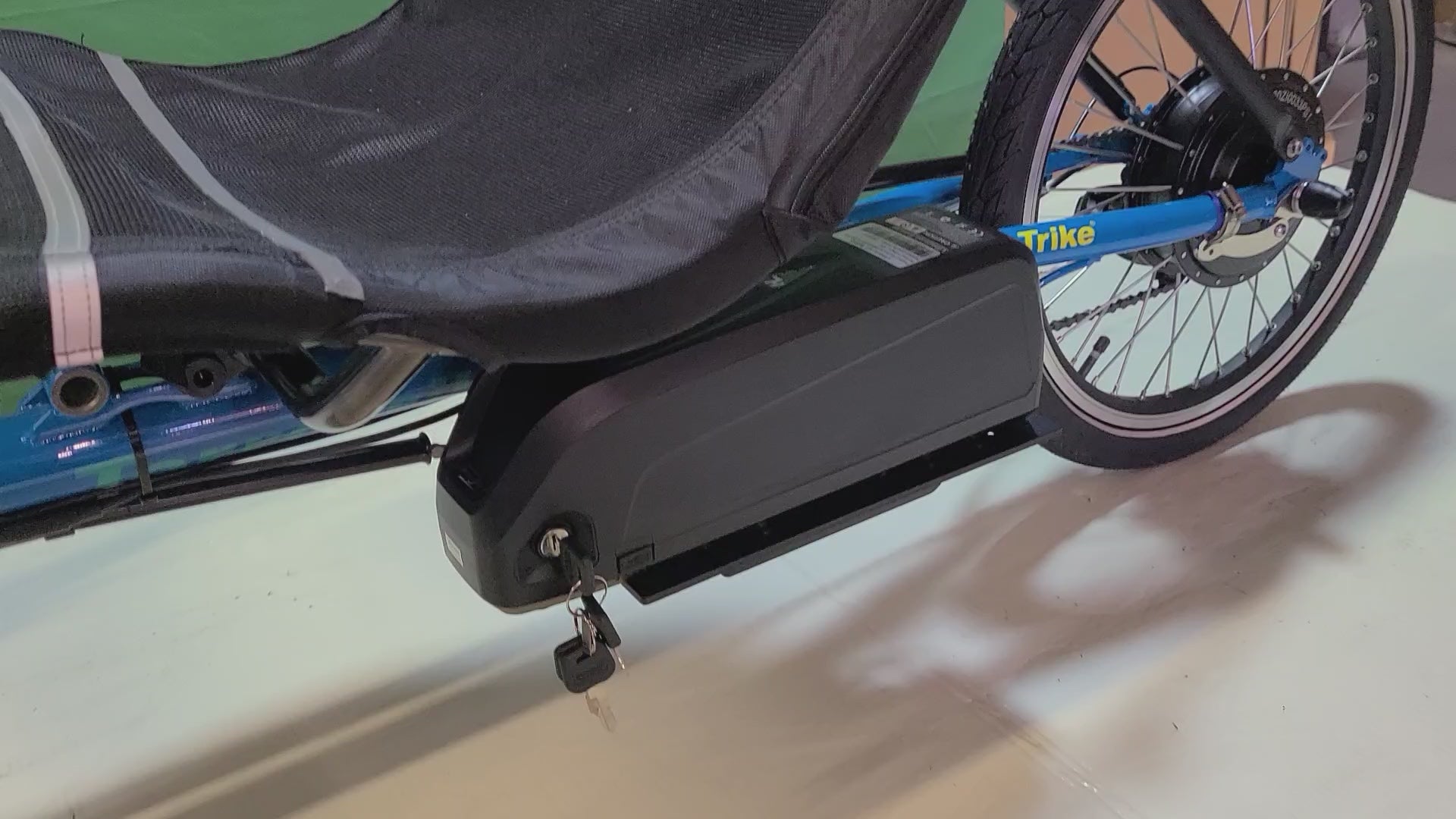

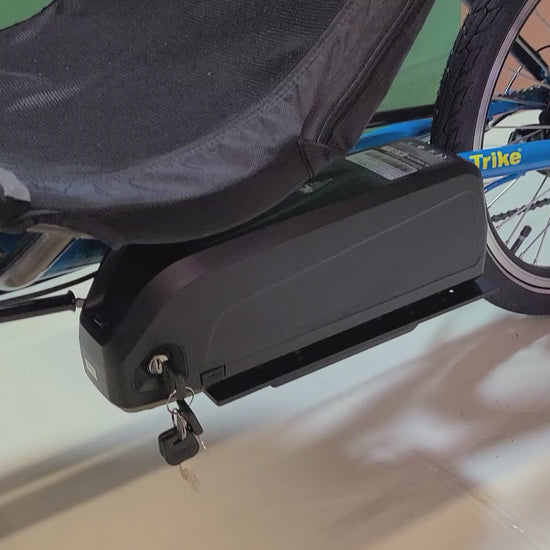

Installation: The battery cradle mounts to a compatible frame or battery mounting system. Many customers can complete installation with basic bicycle tools, although professional bicycle-shop installation is recommended if you are unsure about mounting, wiring, or fitment.

Battery dimensions are approximately 14.5" × 3.5" × 5" (368 × 90 × 127 mm).

For exact dimensional and fitment information, view the technical drawing below before ordering.

View 48V 15Ah Battery Dimensional Drawing (PDF)

The current 48V 15Ah E-BikeKit battery uses a four-blade contact cradle. Four blade contacts on the underside of the battery connect directly to four mating electrical contacts in the cradle.

• Battery-to-Cradle Connection: Four-blade contact system
• Battery Removal: Side-release design
• Security: Key-lock battery retention
• Controller Connection: Current 5-pin twist connector
• Legacy Controller Option: 2-prong adapter required for compatible older controllers

Important: The battery-to-cradle connection and the cradle-to-controller connection are two separate compatibility points. When replacing an older battery, confirm both before ordering.

If you are unsure which battery or cradle your E-BikeKit system uses, contact us with a clear photo of the underside of the battery, the cradle contacts, and the battery connection at the controller.

• Nominal Voltage: 48V
• Nominal Capacity: 15Ah
• Battery Energy: Approximately 720Wh
• Estimated Range: Approximately 20–40 miles depending on rider weight, terrain, speed, pedal input, assist level, and riding conditions
• Charging Time: Approximately 5 hours with included 3A charger
• Total Weight: Approximately 10.1 lb (4.6 kg)
• Dimensions: Approximately 14.5" × 3.5" × 5" (368 × 90 × 127 mm)
• Cell Configuration: 21700 cells, 13S3P
• Maximum Continuous Discharge: 30A
• BMS Protection Current: 30A
• Maximum Charge Voltage: 54.6V
• BMS Low-Voltage Protection: 36V
• Expected Life: Approximately 400–500 charge cycles
• Battery Case: Plastic locking downtube-style casing
• Battery-to-Cradle Interface: Four-blade contact system
• Controller Connection: Current 5-pin twist connection
• Warranty: 1-year limited warranty
• Certifications: UN38.3, MSDS, UL-certified cells

Actual battery range and service life vary with rider weight, terrain, temperature, speed, tire pressure, throttle use, pedal input, assist level, charging habits, and total vehicle load.

• Charging Temperature: 0°C to 45°C
• Discharging Temperature: -20°C to 60°C
• Storage Temperature: 0°C to 40°C
• Recommended Extended Storage: 15°C to 25°C

• 48V 15Ah downtube battery
• 3A smart charger
• Four-blade contact battery cradle / mounting plate
• Battery keys

Optional: A 2-prong battery adapter may be required when connecting this battery/cradle assembly to certain older E-BikeKit controllers.

Shipping note: Lithium-ion batteries ship separately from electric bike kits and are sent via FedEx Hazmat. A delivery signature may be required. It is normal for your kit, battery, charger, and mounting hardware to arrive on different days.

Questions about compatibility? Call us toll-free at 1-866-882-3245 to speak with an experienced E-BikeKit team member, Monday–Friday, 9am–5pm EST. You can also email support@ebikekit.com.
