e-bikekit-direct-drive-rear-500w-wheel-conversion-kit

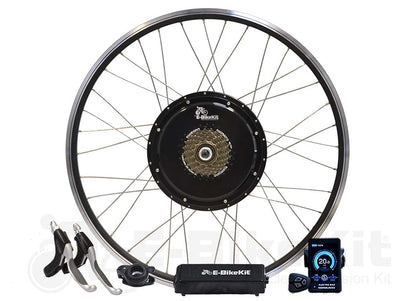

Heavy-Duty E-BikeKit™
No Battery - Rear Wheel

  • $598.00

    Affirm does a soft check on your credit (which won't affect your credit score).

Product Code: DD5F

Availability: In stock

  • Best for Heavy Riders & Cargo
  • Pedal-Assist & Throttle On Demand
  • Programmable LCD Dashboard
  • USA Built Wheels
  • Use your own battery
  • Easy-install connectors

E-BikeKit™ Rear 500-1000w Direct-Drive Hub Motor Conversion Kit w/ Pedal-Assist and Throttle On Demand functions. New programmable LCD!

This electric bike conversion kit without battery pack, is for riders that want the simplicity and reliability of the 500w direct-drive hub motor and the option of supplying their own 36 volt or 48 volt battery pack. Direct-drive motors are strong, durable and long-lasting due to zero internal friction.

Who's it for? This kit is ideal for heavier applications with total loads (rider and gear) over 250lbs.

Any battery chemistry (Li-ion, LiFePO4, Lithium Manganese, Lead-Acid, etc.) is acceptable, as long as the voltage is 36v or 48v AND the battery is capable of 22Amp continuous discharge. The Amp Hour (AH) battery specification is an indication of a battery's capacity. A battery capacity of 10ah will typically deliver 20 miles / 32kms range.

The E-BikeKit™ is designed for convenience, performance, and reliability.
With an LCD dashboard control panel and 36v/48v 12FET controller, the system is easy to install and even easier to use. All E-BikeKit system components are compatible with both 36 volt and 48 volt battery packs. The controller and LCD are also compatible with all motor types offered by E-BikeKit.


Conversion Kit Specs:
Watts (Nominal/Peak): 500-1000w (EBK 22amp controller)
Top Speed: Approx. 14 MPH @36v in 26" wheel / Approx. 20 MPH @48v in 26" wheel
Range: Depends on battery capacity(AH), total load, rider input and terrain
Performance: Medium
Efficiency: Low
Stealth Factor: Low

Battery: Not Included
Charger: Not Included

Any battery chemistry (Li-ion, LiFePO4, Lithium Manganese, Lead-Acid, etc.) is acceptable, as long as the voltage is 36v or 48v AND the battery is capable of 22Amp continuous discharge. The Amp Hour (AH) battery specification is an indication of a battery's capacity. A battery capacity of 10ah will typically deliver 20 miles / 32kms range.


Choosing Your Wheel Size: You can find your wheel size written on your tire. Available size options for this conversion kit are: 16", 20", 24", 26", 700c & 29er. Acceptable tire widths for the E-BikeKit rims: 1.15"(29mm) - 2.25"(57mm).

Freewheel choice and OLD spacing: Our motors are intended for a 7-speed freewheel and provide 135mm OLD (dropout) spacing with a 7-speed freewheel and 15mm disc-offset.
When using an 8, 9, or 10-speed freewheel, this will increase the OLD by about 3.5mm per speed. When we assemble the motor here, we will dish and space it correctly to fit this. To install the wider wheel, you may need to spread the dropouts of the bike open in order to fit.
If you are not using disc brakes, so don't need the 15mm disc-offset, we can reconfigure the spacing to fit 135mm in many cases.

Learn More: Top 25 FAQ / Front vs Rear Wheel / Compatibility / Pedal Assist Compatibility

Note: our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.

Helpful Resources: Installation Videos / Owner's Manuals

Questions? Call us toll free at 1-866-882-3245 and an experienced professional can assist you.
Mon-Friday 9am-5pm EST. Outside of business hours get help fast via email.

Brand: Electric Bike Technologies
Type: Direct-Drive (brushless, disc brake compatible)
Power: 500w nominal / >750w @36v / >1000 @48v
Max Torque: 39N-m @36v / 46N-m @48v
Max RPM: 194 @36v / 259 @48v
Cable: 8" axle exit, 3-phase / 5 hall effect
Connector: Round 8-pin 19/32" (10.4mm)
Weight: 12.8lbs (5.8kg)
Warranty: 1 Year (up to 48v - 600lb max load)

Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.

1 x USA hand-built wheel w/ disc-brake compatible hub motor
1 x 36/48V compatible 22amp 12FET controller
1 x Programmable LCD Dashboard
1 x PAS 12-magnet Split Disc
1 x PAS Sensor Left side mount (right by request)
2 x Throttles (1 Thumb & 1 Split-Twist)
2 x E-Brake handles (left & right)
1 x Motor cable
1 x Accessory cable
1 x Battery wire harness (kits w/o batteries only)
1 x 7-Speed Shimano Freewheel (rears only)
1 x Owner's manual w/ installation guide
***Zip Ties, c-washers & torque arms in every kit!



E-BikeKit 36/48V compatible 22amp 12FET controllere-bikekit-conversion-kit-LCD-PASE-BikeKit PAS 12-magnet Split DiscE-BikeKit PAS Sensor Left side mount (right by request)E-BikeKit Throttles (1 Thumb & 1 Split-Twist)e-bikekit-e-brake-sete-bikekit-motor-cableE-BikeKit Accessory cable 4-1e-bikekit-battery-wire-harnesse-bikekit-small-parts
