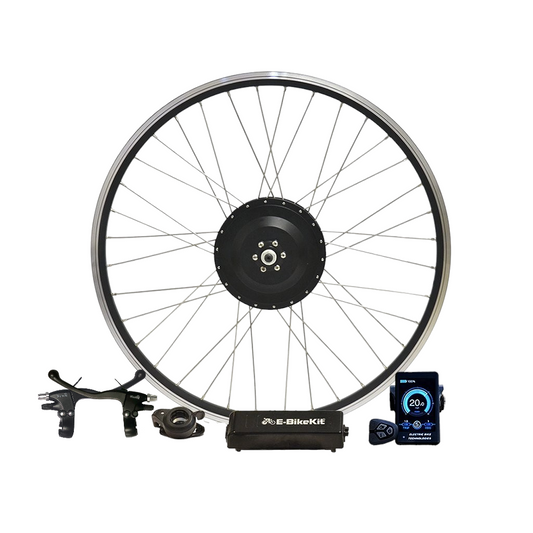

• No Battery (36v / 48v Compatible)

• Best for Heavy Riders and Cargo
• Pedal-Assist and Throttle-on-Demand
• Programmable LCD Dashboard

• No Battery (36v/48v Compatible)

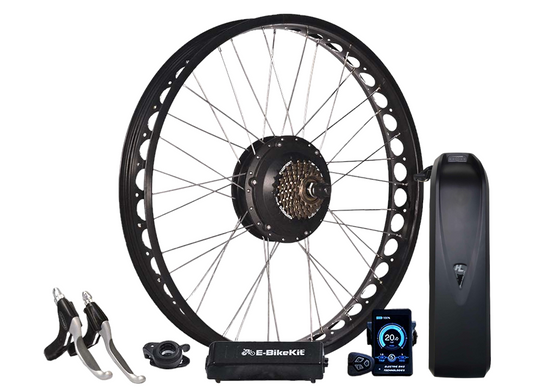

• Purpose-Built for Fatbikes
• 26 Mph / 10-25 Mile Range
• 48v 15Ah Li-ion Battery

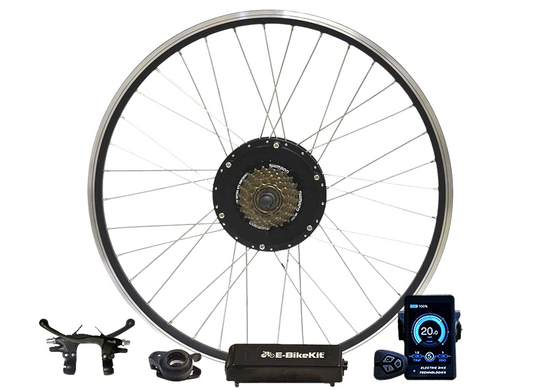

• Special Parts for Catrikes
• 26 Mph / 15-30 Mile Range
• Pedal-Assist and Throttle-on-Demand





Description

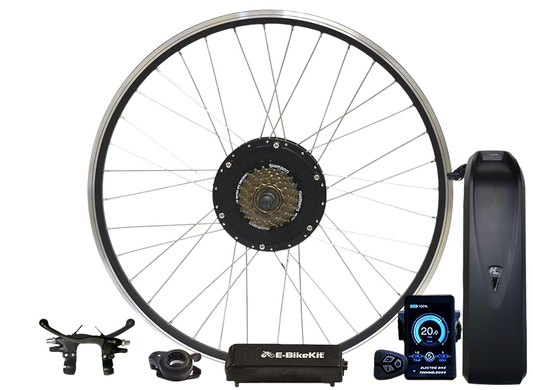

Convert your Trident Stowaway to Electric!

Extras Included:

• Pedal-Assist Extension Cable
• Locking Parking Brake Levers
• Does Not Include Mounting System for Battery

*The newer Trident models use external bearing bottom-brackets that require special considerations and parts for fitting PAS sensors and magnets. Contact us with questions. The default configuration is our normal left-side mount PAS system for square-taper bottom brackets. Please contact us and send pictures if you have an external bearing crankset and we can arrange special parts for you like in the photo below. Not sure? Check out Pedal-Assist Compatibility.

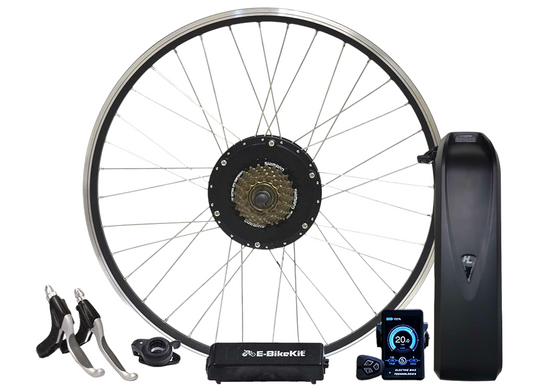

E-BikeKit™ Rear 500w Geared Hub Motor Conversion Kit with 48-volt Li-ion Battery Pack and Charger.

The E-BikeKit 500-1000w geared conversion kit is powered by an internal 5:1 planetary gear hub motor with a clutch. The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with "start/stop" riding), has more starting torque, and has greater hill-climbing ability than a direct drive motor of equal power rating. The motor is also smaller in diameter for increased stealth and 3.4 lbs lighter than the 500w direct drive.

Who's it for? This premium electric bike conversion kit system is for those that want the best of the best in performance, efficiency, weight, stealth, and speed. The top speed is 26 mph! There is a 300 lbs total load limit so if you plan on more than that, look to a heavy duty system.

System Specs:
Watts (Nominal/Peak): 500-1000w (EBK 22Amp Controller)
Top Speed: Approx. 26 mph @ 48v in 26" wheel
Range: 10-44 Miles
Charge Time: 3-7 Hrs (from 0-100% and depending on battery choice)
Weight: 21 lbs (9.5 kgs)
Performance: High
Efficiency: High
Stealth Factor: High

Lithium batteries provide a high level of performance for the duration of each discharge (unlike seal lead-acid where performance is diminished 1:1 as the pack is emptied). Lithium batteries have a much higher power to weight ratio than lead-acid and 5-8 times the number of charge cycles (how many times a rechargeable battery can be charged from 0-100%). The lithium option costs more initially, but over time, the "cost-per-cycle" is about half the cost of lead-acid. Lithium packs also require less care as they can be left partially charged, and do not require immediate charging after each use. All batteries MUST be properly cared for during storage.

---

Choosing Your Wheel Size: You can find your wheel size written on your tire. Available size options for this conversion kit are: 16", 20", 24", 26", 700c, and 29er. Acceptable tire widths for the E-BikeKit rims: 1.15" (29mm) - 2.25" (57mm).

Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility

Helpful Resources: Helpful Videos | Owner's Manuals

Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.

Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday 9 am - 5 pm EST. Outside of business hours get help fast via e-mail.

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and are require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.





Motor Specs:

Brand: Electric Bike Technologies, Inc.
Type: Internally Geared (brushless, and disc brake compatible)
Power: 500w Nominal / > 1000 @ 48v
Max Torque: 84Nm @ 48v
Max RPM: 320 @ 48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32" (10.4 mm)
Weight: 9.4 lbs (4.26 kg)
Warranty: 1 Year (up to 48v - 300 lbs max load)

Note: The geared 500w “Performance” motors feature an internal clutch to reduce drag, and can not read speed or mileage when not in use.

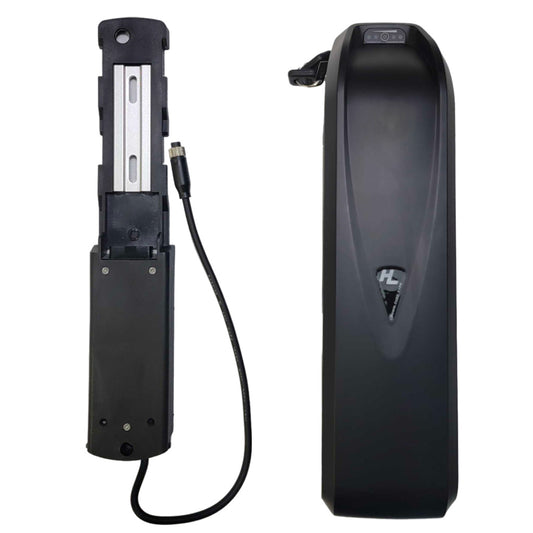

Battery Specs:

Range: 15-30 Miles (Based on riders weight, input and terrain contingent)
Charging Time: 15Ah Pack = 5 Hours / 3Amp Charger
Nominal Voltage: 48v
Nominal Capacity: 15Ah (0.2C)
Battery Energy: 720Wh approx.
Dimensions: 14in x 3.5in x 5in (356mm x 89mm x 127mm) approx.
Total Weight: 10.125 lbs (4.6 kg)
Cell Assembly: 18650-3.6v-13S4P
Life Cycles: 500-800 Cycles
Max. Continuous Discharge: 16A
BMS Protection Current: 20A
Discharge Cut-Off Voltage: 37.5v
Max Charge Voltage: 54.6v
Inner Resistance: < = 230mΩ
Operation Temperature Range: Charge: 0°C – 113°F / Discharge: -68°F – 140°F
Storage Temperature: 0°C – 104°F (Extended Storage: 59°F – 77°F)
Battery Case Material: Plastic
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies, Inc.

Assembled Pack Certificates: UN38.3; MSDS; RoHS; SGS





Includes

Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.

1 x USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
1 x 48V Compatible 22Amp 12FET Controller
1 x Programmable LCD Dashboard
1 x PAS 12-Magnet Split Disc
1 x PAS Sensor Left Side Mount (right side mount by request)
1 x Thumb or Split-Twist Throttle
1 x Left and Right E-Brake Levers
1 x Motor Cable
1 x Accessory Cable
1 x Battery Wire Harness (kits w/o batteries only)
1 x Freewheel (rears only)
1 x Battery
1 x Battery Charger
1 x Owner's Manual (an online PDF)
**Zip Ties, C-Washers, and Torque Arms in Every Kit!

Extras Included:
1 x Pedal-Assist Extension Cable
1 x Locking Parking Brake Levers
