48v 10Ah Li-ion Downtube E-Bike Battery

Description

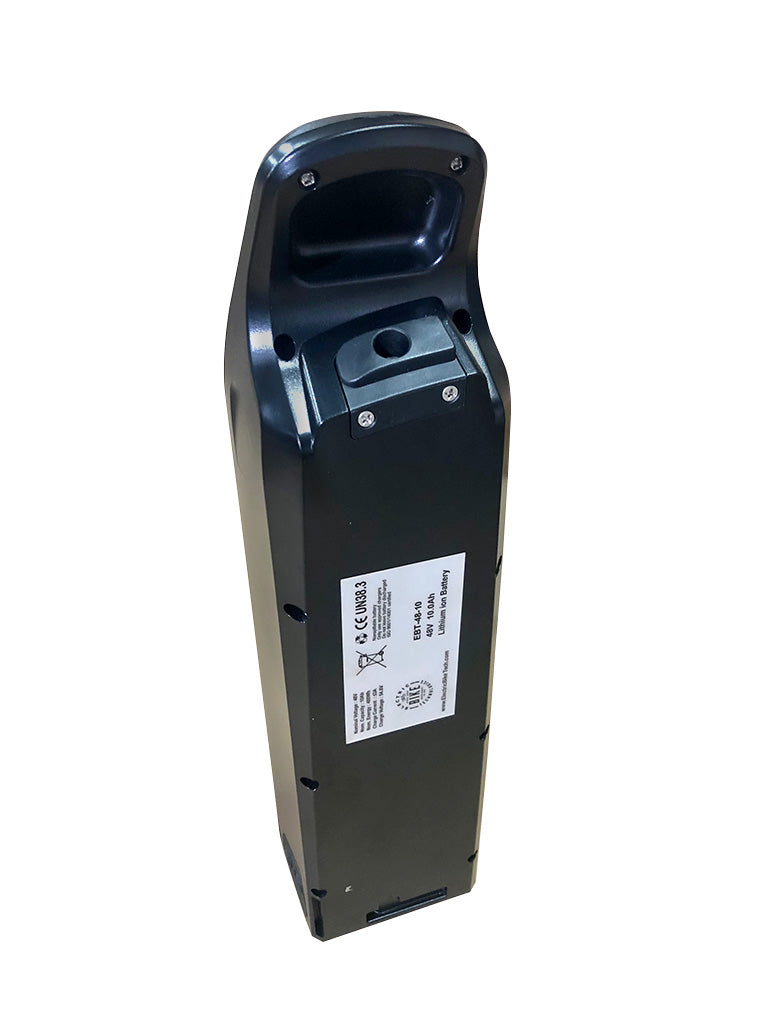

E-BikeKit 48v 10Ah Li-ion Downtube E-Bike Battery Pack

INCLUDES 2 AMP CHARGER

These Li-ion batteries are our longest lasting E-Bike battery with an expected 500-800 life-cycles (from full to empty).

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via UPS Hazmat and require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.

Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday from 9 am to 5 pm EST. Outside of business hours get help fast via email.

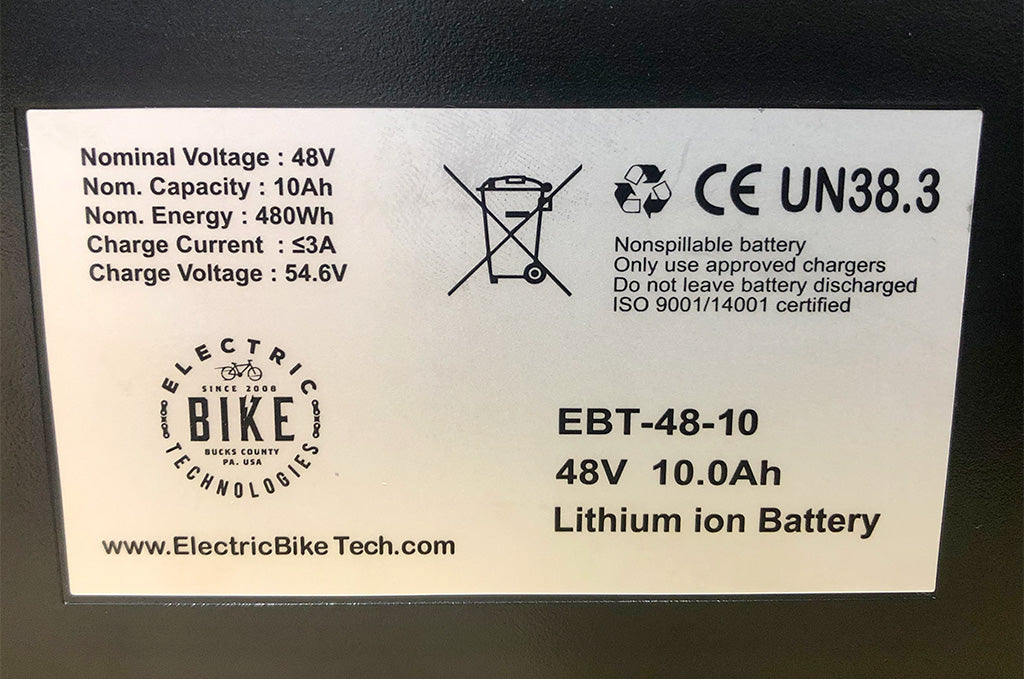

Battery Specs Heading

Top Speeds: 26 mph w/ 500w Geared "Performance" motor / 20 mph w/ 500w Direct-Drive "Heavy-Duty" and Trike Motor
Range: 12-24 Miles (Based on riders weight, input and terrain contingent)
Charging Time: 14Ah Pack = 5 Hours / 2Amp Charger
Nominal Voltage: 48v
Nominal Capacity: 10Ah (0.2C)
Battery Energy: 480Wh approx.
Dimensions: 16.5in x 4in x 3.5in (420mm x 105mm x 90mm) approx.
Total Weight: 6.8 lbs / 3.1kg
Cell Assembly: 18650-3.6v-13S4P
Life Cycles: 500-800 Cycles
Max Continuous Discharge: 16A
BMS Protection Current: 20A
Discharge Cut-Off Voltage: 37.5v
Max. Charge Voltage: 54.6v
Inner Resistance: <= 230mΩ
Operation Temperature Range: Charge: 0°C – 113°F / Discharge: -68°F – 140°F
Storage Temperature: 0°C – 104°F (Extended Storage: 59°F – 77°F;)
Battery Case Material: Plastic
Assembled Pack Certificates: UN38.3; IEC 62133; SDS
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies, Inc.

Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS
