Description
E-BikeKit™ Front 500-1000w Geared Hub Motor Conversion Kit. Now with Pedal-Assist and Throttle On Demand functions. New Programmable LCD!
The E-BikeKit 500-1000w geared conversion kit is powered by an internal 5:1 planetary gear hub motor with a clutch. The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with "start/stop" riding), has more starting torque, and has greater hill-climbing ability than a direct-drive motor of equal power rating. The motor is also smaller in diameter for increased stealth and 3.4lbs lighter than the 500w direct-drive.
Who's it for? This kit is for anyone wanting the best of the best in performance, efficiency, weight, and stealth. There is a 300 lbs total load limit so if you plan on more than that, look to a direct-drive motor.
Choosing Your Wheel Size: You can find your wheel size written on your tire. Available size options for this conversion kit are: 16", 20", 24", 26", 700c and 29er. Acceptable tire widths for the E-BikeKit rims: 1.15" (29mm) - 2.25" (57mm).
Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility
Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.
Helpful Resources: Helpful Videos | Owner's Manuals
Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday 9 am-5 pm EST. Outside of business hours get help fast via e-mail.
Motor Specs
Brand: Electric Bike Technologies, Inc.
Type: Internally Geared (brushless, disc brake compatible)
Power: 500w nominal / >1000w @ 48v
Max Torque: 84N-m @48v
Max RPM: 320 @48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32" (10.4mm)
Weight: 9.4lbs (4.26kg)
Warranty: 1 Year (up to 48v - 300 lbs max load)
Note: The geared 500w “Performance” Motors feature an internal clutch to reduce drag, and can not read speed or mileage when not in use.
Includes
Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.
1 x USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
1 x 36/48V Compatible 22Amp 12FET Controller
1 x Programmable LCD Dashboard
1 x PAS 12-Magnet Split Disc
1 x PAS Sensor Left Side Mount (right side mount, by request)
1 x Thumb or Split-Twist Throttles
1 x Left & Right E-Brake Levers

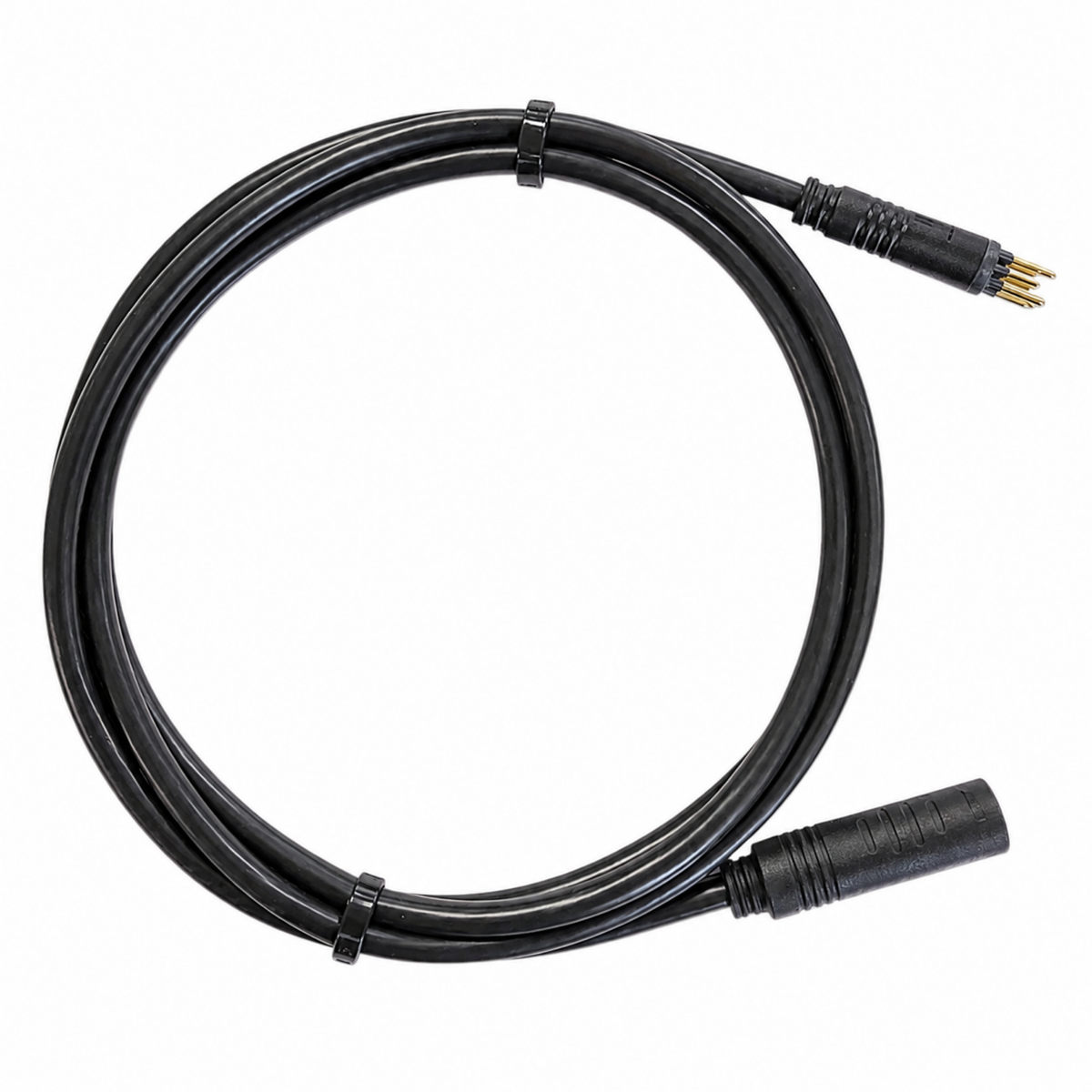

1 x Motor Cable
1 x Accessory Cable
1 x Battery Wire Harness (kits w/o batteries only)
1 x Owner's Manual
**Zip Ties, C-Washers & Torque Arms in Every Kit!
