Description

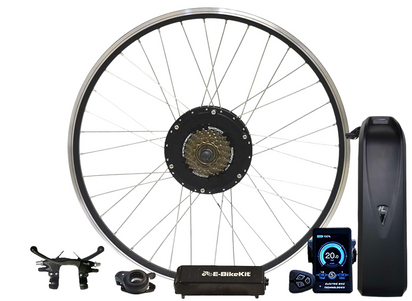

Convert your Trident Trike Stowaway to Electric!

Extras Included:

• Pedal-Assist Extension Cable
• Locking Parking Brake Levers
• Does Not Include Mounting System for Battery

* Newer Trident models use external bearing bottom-brackets that require special considerations and parts for fitting PAS sensors and magnets. Contact us with questions. The default configuration is our normal left-side mount PAS system for square-taper bottom brackets. Please contact us and send pictures if you have an external bearing crankset and we can arrange special parts for you like in the photo below. Not sure? Check out Pedal Assist Compatibility.

Motor Specs:

Brand: Electric Bike Technologies, Inc.
Type: Internally Geared (brushless, and disc brake compatible)
Power: 500w Nominal / > 1000 @ 48v
Max Torque: 84Nm @ 48v
Max RPM: 320 @ 48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32" (10.4 mm)
Weight: 9.4 lbs (4.26 kg)
Warranty: 1 Year (up to 48v - 300 lbs max load)

Note: The geared 500w “Performance” motors feature an internal clutch to reduce drag, and can not read speed or mileage when not in use.

Battery Specs:

Range: 15-30 Miles (Based on riders weight, input and terrain contingent)
Charging Time: 15Ah Pack = 5 Hours / 3Amp Charger
Nominal Voltage: 48v
Nominal Capacity: 15Ah (0.2C)
Battery Energy: 720Wh approx.
Dimensions: 14in x 3.5in x 5in (356mm x 89mm x 127mm) approx.
Total Weight: 10.125 lbs (4.6 kg)
Cell Assembly: 18650-3.6v-13S4P
Life Cycles: 500-800 Cycles
Max. Continuous Discharge: 16A
BMS Protection Current: 20A
Discharge Cut-Off Voltage: 37.5v
Max Charge Voltage: 54.6v
Inner Resistance: < = 230mΩ
Operation Temperature Range: Charge: 0°C – 113°F / Discharge: -68°F – 140°F
Storage Temperature: 0°C – 104°F (Extended Storage: 59°F – 77°F)
Battery Case Material: Plastic
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies, Inc.

Assembled Pack Certificates: UN38.3; MSDS; RoHS; SGS

Includes

Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.

1 x USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
1 x 48V Compatible 22Amp 12FET Controller
1 x Programmable LCD Dashboard
1 x PAS 12-Magnet Split Disc
1 x PAS Sensor Left Side Mount (right side mount by request)
1 x Thumb or Split-Twist Throttle
1 x Left and Right E-Brake Levers
1 x Motor Cable
1 x Accessory Cable
1 x Battery Wire Harness (kits w/o batteries only)
1 x Freewheel (rears only)
1 x Battery
1 x Battery Charger
1 x Owner's Manual (an online PDF)
**Zip Ties, C-Washers, and Torque Arms in Every Kit!

Extras Included:
1 x Pedal-Assist Extension Cable
1 x Locking Parking Brake Levers
